Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human, Primate - Macaca mulatta (Rhesus Macaque)

Applications

Validated:

Flow Cytometry

Cited:

Flow Cytometry

Label

Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)

Antibody Source

Monoclonal Mouse IgG2B Clone # 120604
View all DC-SIGNR/CD299 Primary Antibodies »

Product Specifications

Immunogen

NIH-3T3 mouse embryonic fibroblast cell line transfected with human DC‑SIGNR/CD299
Accession # Q9H2X3

Specificity

Detects human DC‑SIGNR/CD299.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2B

Scientific Data Images for Human DC‑SIGNR/CD299 PE‑conjugated Antibody

Detection of DC‑SIGNR/CD299 antibody in 3T3 Mouse Cell Line Transfected with Human DC-SIGNR/CD299 antibody by Flow Cytometry.

Detection of DC‑SIGNR/CD299 in 3T3 Mouse Cell Line Transfected with Human DC-SIGNR/CD299 by Flow Cytometry.

3T3 mouse embryonic fibroblast cell line transfected with human DC-SIGNR/CD299 was stained with Mouse Anti-Human DC-SIGNR/CD299 PE-conjugated Monoclonal Antibody (Catalog # FAB162P, filled histogram) or isotype control antibody (Catalog # IC0041P, open histogram). View our protocol for Staining Membrane-associated Proteins.
Detection of DC-SIGNR/CD299 by Flow Cytometry

Detection of DC-SIGNR/CD299 by Flow Cytometry

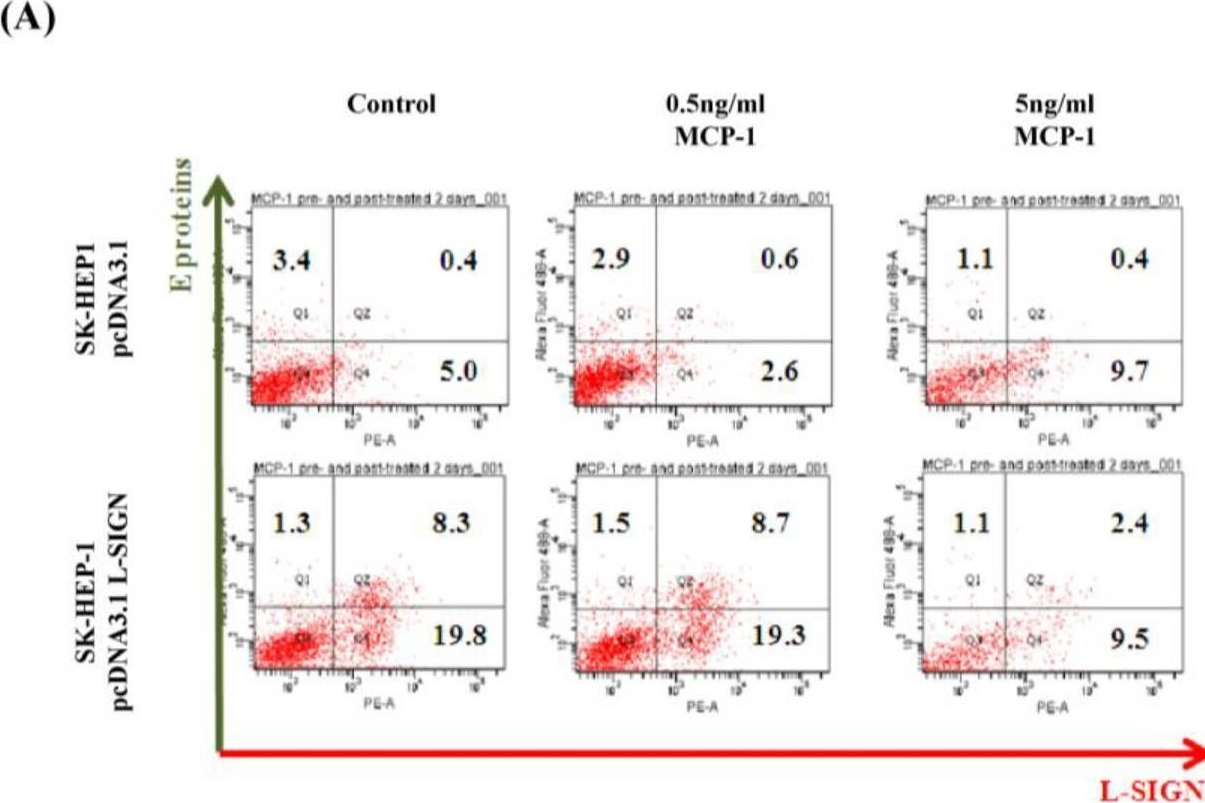

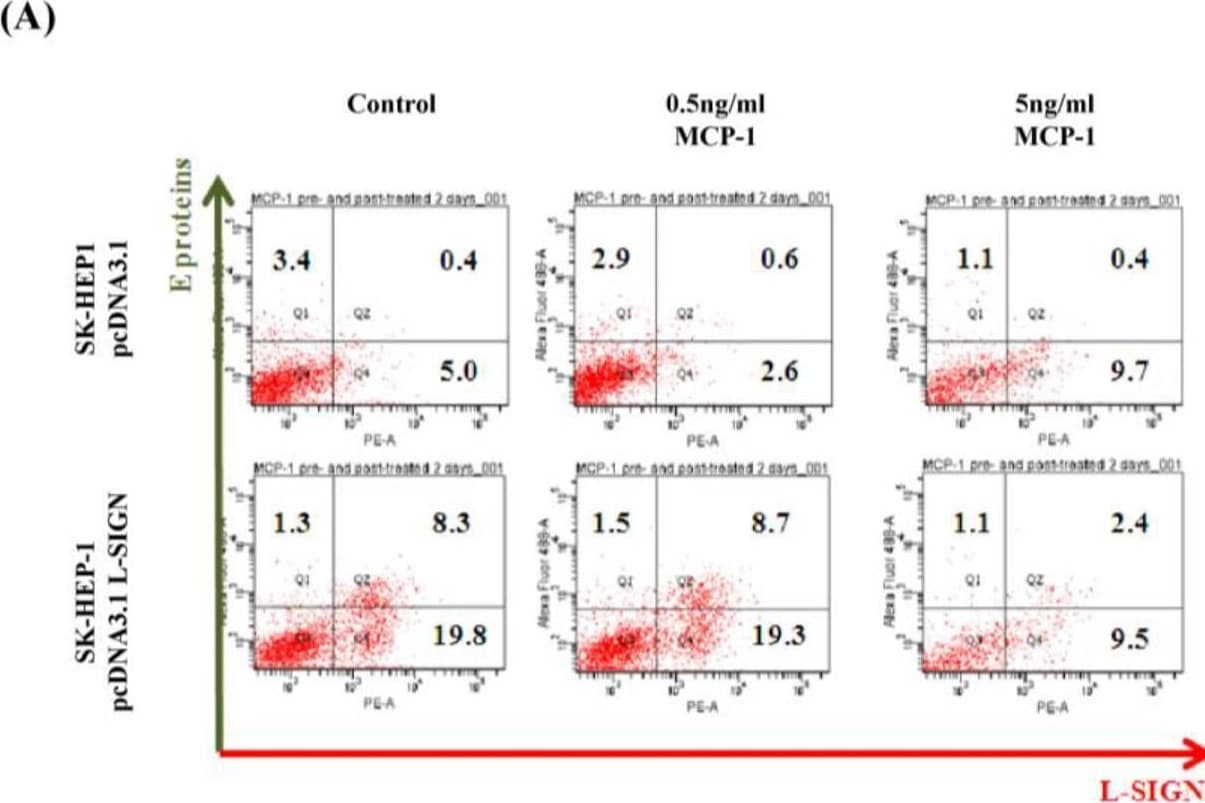

Recombinant MCP-1 protein in DENV replication. (A) Flow cytometry was used to detect the dengue virus envelope protein (E) and L-SIGN expression on the cell surface in DENV-infected SK-HEP-1 pcDNA3.1 and SK-HEP-1 pcDNA3.1 L-SIGN with 0, 0.5, and 5 ng/mL MCP-1. (B) DENV copy numbers were counted by fluorescence intensity in DENV-infected SK-HEP-1 pcDNA3.1 and SK-HEP-1 pcDNA3.1 L-SIGN with 0, 0.5, and 5 ng/mL MCP-1. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/40143272), licensed under a CC-BY license. Not internally tested by R&D Systems.

Applications for Human DC‑SIGNR/CD299 PE‑conjugated Antibody

Application
Recommended Usage

Flow Cytometry

10 µL/106 cells
Sample: 3T3 mouse embryonic fibroblast cell line transfected with human DC-SIGNR/CD299

Reviewed Applications

Read 1 review rated 5 using FAB162P in the following applications:

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified from hybridoma culture supernatant

Formulation

Supplied in a saline solution containing BSA and Sodium Azide.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: DC-SIGNR/CD299

Dendritic cell-specific ICAM-3 grabbing non-integrin (DC-SIGN or CD299) and DC-SIGN related protein (DC-SIGNR, DC-SIGN2, L-SIGN or CD209L) are type II membrane proteins that are mannose-specific calcium-dependent (C-type) lectins. The two proteins share 77% amino acid identity. DC-SIGN mediates interactions between dendritic cells (DCs) and T cells. Both DC-SIGN and DC-SIGNR have been shown to bind HIV, hepatitis C glycoproteins, Ebola virus glycoproteins and the cellular adhesion protein ICAM-3 (1-4). DC-SIGN and DC-SIGNR appear to selectively recognize and bind viral proteins containing a large portion of high-mannose oligosaccharides (5). Though DC-SIGN and DC-SIGNR are found on the same chromosome, they are not expressed in the same tissue. DC-SIGN is expressed solely on Dendritic cells while DC-SIGNR is found on endothelial cells in the liver and lymph node sinuses and in a significant portion of capillary endothelial cells in term placenta (1, 4).

References

  1. Pohlmann, S. et al. (2001) Proc. Natl. Acad. Sci. USA 98:2670.
  2. Pohlmann, S. et al. (2003) J. Virol. 77:4070.
  3. Simmons, L.G. et al. (2003) J. Virol. 77:1337.
  4. Bahirova, A.A. et al. (2001) J. Exp. Med. 193:671.
  5. Feinberg, H. et al. (2001) Science 294:2163.

Long Name

Dendritic Cell-specific ICAM-3-grabbing Non-integrin 2

Alternate Names

CD209L, CD299, CLEC4M, DC-SIGN2, DCSIGNR, LSIGN

Entrez Gene IDs

10332 (Human)

Gene Symbol

CLEC4M

UniProt

Q9H2X3

Additional DC-SIGNR/CD299 Products

Product Documents for Human DC‑SIGNR/CD299 PE‑conjugated Antibody

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Download SDS

Product Specific Notices for Human DC‑SIGNR/CD299 PE‑conjugated Antibody

For research use only

Citations for Human DC‑SIGNR/CD299 PE‑conjugated Antibody

Customer Reviews for Human DC‑SIGNR/CD299 PE‑conjugated Antibody (1)

5 out of 5
1 Customer Rating
5 Stars
100%
4 Stars
0%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Human DC‑SIGNR/CD299 PE‑conjugated Antibody?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Human DC-SIGNR/CD299 PE-conjugated Antibody
    Name: Anonymous
    Application: Flow Cytometry
    Sample Tested: Peritoneal macrophages
    Species: Human
    Verified Customer | Posted 08/12/2024

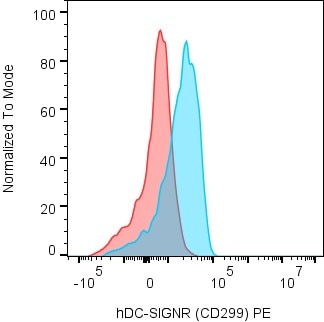

    Expression of DC-SIGNR on human monocyte-derived macrophages. The cells were treated with 10 μg/ml of the DC-SIGNR PE antibody (catalogue # FAB162P) (blue) or mouse IgG2b PE isotype control antibody (Red)
    Human DC‑SIGNR/CD299 PE‑conjugated Antibody FAB162P
