Human IL-12/IL-23 p40 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
3.5 hours or 4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (100 uL), Serum (100 uL), EDTA Plasma (100 uL), Heparin Plasma (100 uL), Citrate Plasma (100 uL)
15 pg/mL
Assay Range
31.2 - 2,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma)
Natural and recombinant human IL-12 p40
Cross-reactivity observed with 1 or more available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human IL-12 p40 Immunoassay is a 3.5 or 4.5 hour solid phase ELISA designed to measure IL-12 p40 in cell culture supernates, serum, and plasma. It contains recombinant human IL-12 p40 and antibodies raised against the recombinant factor. This immunoassay has been shown to accurately quantitate recombinant human IL-12 p40. Results obtained using natural human IL-12 p40 showed dose-response curves that were parallel to the standard curves obtained using the recombinant Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for natural human IL-12 p40.


The recovery of IL-12 p40 spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=5) 96 85-105
Citrate Plasma (n=5) 100 85-112
EDTA Plasma (n=5) 101 92-113
Heparin Plasma (n=5) 96 89-106
Serum (n=5) 98 86-112


To assess the linearity of the assay, five samples were spiked with high concentrations of IL-12 p40 in various matrices and diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.

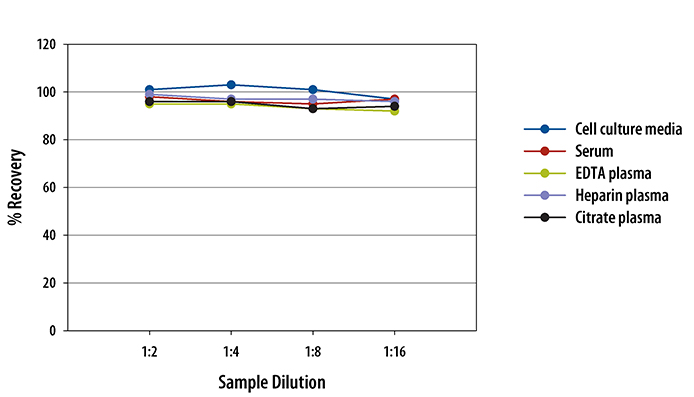

Human IL-12/IL-23 p40 Homodimer ELISA Linearity

Scientific Data

Human IL-12/IL-23 p40 Homodimer ELISA Cell Culture Supernate Standard Curve

Human IL-12/IL-23 p40 Homodimer ELISA Serum/Plasma Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-12/IL-23 p40

Interleukin 12 (IL-12), also known as natural killer cell stimulatory factor (NKSF) or cytotoxic lymphocyte maturation factor (CLMF), is a heterodimeric pleiotropic cytokine made up of a 40 kDa (p40) subunit and a 35 kDa (p35) subunit. The IL-12 p40 subunit is shared by IL-23, another heterodimeric cytokine that has biological activities similar to, as well as distinct from, IL-12. IL-12 is produced by macrophages and B cells and has been shown to have multiple effects on T cells and natural killer (NK) cells. While mouse IL-12 is active on both human and mouse cells, human IL-12 is not active on mouse cells.

Long Name:
Interleukin 12/Interleukin 23 p40
Entrez Gene IDs:
3593 (Human); 16160 (Mouse); 64546 (Rat); 397076 (Porcine); 403976 (Canine); 102124858 (Cynomolgus Monkey); 493741 (Feline); 694747 (Rhesus Macaque)
Alternate Names:
CLMF p40; CLMF; CLMF2; Cytotoxic lymphocyte maturation factor 40 kDa subunit; IL12 p40; IL-12 p40; IL-12 subunit p40; IL12B; IL-12B; IL-12BNK cell stimulatory factor chain 2; interleukin 12, p40; interleukin 12B (natural killer cell stimulatory factor 2, cytotoxic lymphocytematuration factor 2, p40); interleukin-12 beta chain; interleukin-12 subunit beta; natural killer cell stimulatory factor, 40 kD subunit; NKSF; NKSF2; NKSF2IL12, subunit p40
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 100 µL Standard, Control, or Sample
  6.   Add 100 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well.
  10.   For Serum & Plasma Samples: Cover with a new plate sealer, and incubate at room temperature for 2 hours.
    For Cell Culture Supernate Samples: Cover with a new plate sealer, and incubate at room temperature for 1 hour.
  11.   Aspirate and wash 4 times.

  12. 200 µL Substrate Solution
  13.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  14. 50 µL Stop Solution
  15. Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
