Human IL-3 R alpha/CD123 DuoSet ELISA

R&D Systems | Catalog # DY301-05

R&D Systems
Discontinued Product
DY301-05 has been discontinued. View all IL-3R alpha products.

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

23.4-1500 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Human

Human IL-3 R alpha/CD123 DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits
Loading...

Product Summary for Human IL-3 R alpha/CD123 DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human IL-3 R alpha / CD123. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet ELISA.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Sample Volume Required

100 µL

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Label

HRP

Scientific Data Images for Human IL-3 R alpha/CD123 DuoSet ELISA

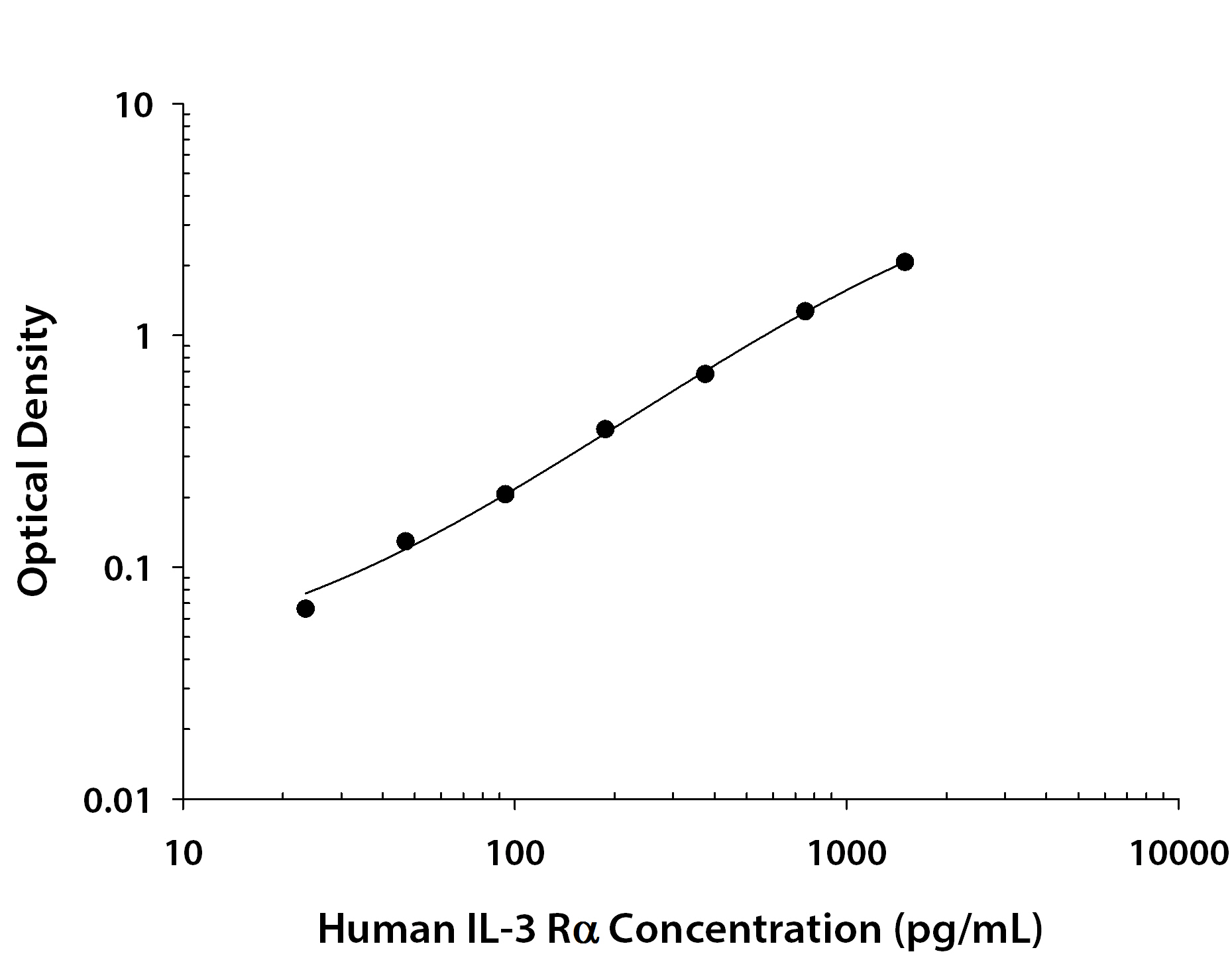

Human IL-3 R alpha / CD123 ELISA Standard Curve

Human IL-3 R alpha / CD123 ELISA Standard Curve

Kit Contents for Human IL-3 R alpha/CD123 DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required


PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or equivalent

Reagent Diluent*

Blocking Buffer*

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990), or equivalent

Plate Sealers: ELISA Plate Sealers (Catalog # DY992), or equivalent

*For the Reagent Diluent and Blocking Buffer recommended for a specific DuoSet ELISA Development Kit, please see the product .

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-3R alpha

Interleukin 3 (IL-3) is a pleiotropic cytokine that can stimulate proliferation and differentiation of pluripotent hematopoietic stem cells as well as various lineage committed progenitors. IL-3 exerts its activity through binding to a specific cell surface receptor known as IL-3 R. IL-3 R is a heterodimeric structure composed of a 70 kDa IL-3 R alpha subunit (CD123 or beta common) and a 120-140 kDa IL-3 R beta subunit (CD131). CD131 also associates with the receptor for Erythropoietin, forming a tissue-protective hetero-receptor complex.

IL-3 R alpha binds IL-3 with relatively low affinity. In the presence of IL-3 R beta, however, IL-3 R alpha has a much higher affinity for IL-3. It is not clear how signal transduction occurs following IL-3 binding. The IL-3 R alpha chain has a very short intracellular domain while the IL-3 R beta chain has a very large cytoplasmic domain. Recent studies suggest that formation of IL-3 R beta-beta homodimers initiates signaling events. The IL-3 R beta chain is also shared by the receptors for IL-5 and GM-CSF. Cells known to express IL-3 receptors include hematopoietic progenitors, epithelial cells, double negative T cells, mast cells, basophils and blood monocytes.

Long Name

Interleukin 3 Receptor alpha

Alternate Names

CD123, IL-3 R alpha, IL-3Ra, IL3R alpha, IL3RA

Entrez Gene IDs

3563 (Human); 16188 (Mouse); 102138639 (Cynomolgus Monkey)

Gene Symbol

IL3RA
