Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Met12-Ser66
Accession # Q7L5Y9
Specificity
Clonality
Host
Isotype
Scientific Data Images for EMP/MAEA Antibody
Detection of Human, Mouse, and Rat EMP/MAEA by Western Blot.
Western blot shows lysates of C2C12 mouse myoblast cell line, Jurkat human acute T cell leukemia cell line, K562 human chronic myelogenous leukemia cell line, and NR8383 rat alveolar macrophage cell line. PVDF membrane was probed with 1 µg/mL of Sheep Anti-Human EMP/MAEA Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7288) followed by HRP-conjugated Anti-Sheep IgG Secondary Antibody (Catalog # HAF016). A specific band was detected for EMP/MAEA at approximately 45 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.EMP/MAEA in Jurkat Human Cell Line.
EMP/MAEA was detected in immersion fixed Jurkat human acute T cell leukemia cell line using Sheep Anti-Human EMP/MAEA Antigen Affinity-purified Polyclonal Antibody (Catalog # AF7288) at 10 µg/mL for 3 hours at room temperature. Cells were stained using the NorthernLights™ 557-conjugated Anti-Sheep IgG Secondary Antibody (red; Catalog # NL010) and counterstained with DAPI (blue). Specific staining was localized to cytoplasm and nuclei. View our protocol for Fluorescent ICC Staining of Non-adherent Cells.Detection of Mouse EMP/MAEA by Western Blot

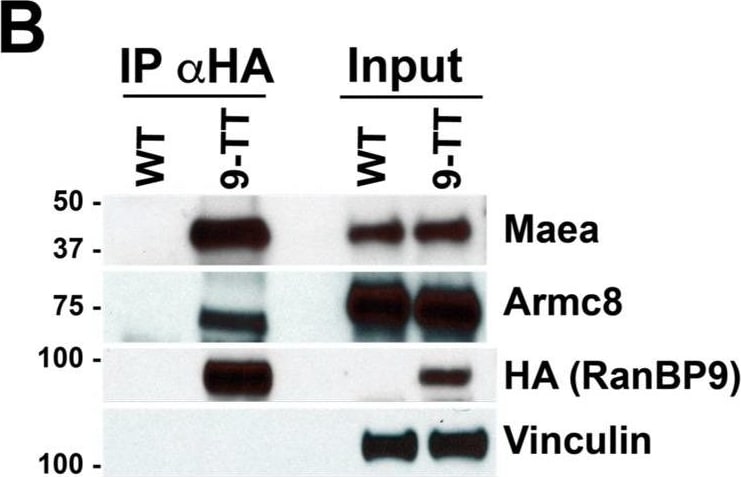

V5-HA-tagged RanBP9 maintains its ability to interact with known members of the CTLH complex and Nucleolin. RanBP9 WT and TT immortalized Mouse Embryonic Fibroblasts (MEFs) were cultured in standard conditions and protein lysates were obtained. Resin conjugated with alpha HA antibodies was used to immunoprecipitate RanBP9-TT protein. IPed fractions and 5% of input were run on gels to generate 5 different membranes that were probed with the indicated antibodies by WB. Vinculin is used as loading control. Shown results are representative of two independent experiments (biological replicates). Image collected and cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/32346083), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
NMNAT1 ubiquitylation by WDR26-specific supramolecular CTLH E3 complex is independent of GID4A) Cartoon with CTLH E3 complex subunits forming scaffold (SC), catalytic (Cat), and supramolecular assembly (SA) modules. SC and Cat modules assemble the core-CTLH E3.B) Coomassie-stained SDS-PAGE showing purified recombinant core-complex (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA), the supramolecular assemblies MKLN1-CTLH (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA-MKLN1) and WDR26-CTLH (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA-WDR26), and CTLH substrate NMNAT1. TWA1 is C-terminally tagged with 2xStrep.C) Fluorescent scans of SDS-PAGE gels presenting time course of in vitro ubiquitylation assay to test different CTLH E3 complex assemblies, in the absence or presence of GID4, for the ubiquitylation of N-terminally fluorescently tagged TAMRA-NMNAT1 (TAMRANMNAT1) (top panels) and of fluorescently tagged model substrate peptide PGLW(X)n-23K-FAM (pepFAM) with lysine at position 23 (bottom panels). *, indicates unspecific products.D) Coomassie-stained SDS-PAGE showing Strep-Tactin precipitated samples of in vitro binding assay testing interaction between NMNAT1 and either core-CTLH or WDR26-CTLH E3 complexes comprising C-terminally 2xStrep-tagged TWA1 (TWA12xS).E) For in vitro binding assay, NMNAT1 was incubated with individual GST-TEV-tagged CTLH subunits GID4, MKLN1, and WDR26 (I, input), followed by GST-affinity chromatography. GST-precipitates were treated with TEV to elute protein complexes (E, eluate) analyzed by Coomassie-stained SDS-PAGE and immunoblot (IB) analysis.F) TUBEHalo-captured proteins from indicated cell lines were precipitated with Halo-resin (TUBE: pellet) and analyzed by immunoblot analysis. Actin serves as protein input control. Image collected and cropped by CiteAb from the following open publication (https://linkinghub.elsevier.com/retrieve/pii/S1097276524003290), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
The CTLH complex has E3 ligase activity. (a) RanBPM immunocomplexes have E3 ligase activity that is dependent on RMND5A. Whole cell extracts prepared from wild type (WT; lanes 3–4) or RMND5A KO (lane 5) HEK293 cells were subjected to immunoprecipitation with a RanBPM antibody or an IgG control, as indicated. Immunoprecipitates were resuspended in an ubiquitination assay master mix and E2 enzyme (UBE2D2) was added (+) or omitted (−), prior to incubation at 37 °C for 30 minutes. Reactions were run on SDS-PAGE gel and fluorescein-ubiquitin was imaged directly on the gel at 800 nm. Shown below is a Western blot analyzing RanBPM and RMND5A presence in the immunoprecipitates. Asterisk indicates a non-specific band. (b) MAEA is required for CTLH complex activity. RanBPM was immunoprecipated from control or MAEA KO HEK293 cells and ubiquitination reactions were carried out as described above. The presence of RanBPM and MAEA in the immunoprecipitates was analyzed by Western blot. Asterisk indicates a non-specific band. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/31285494), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
WDR26 mutants exhibit binding defects with core-CTLH E3 complex.A) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 and parental control cells. Input (inp) and immunoprecipitants (IP) were analyzed by immunoblotting.B)-C) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 variants from different individuals (Ind#). Immunoblot analysis of inp and IP-captured proteins for each individual are presented separately for efficient detection (expression levels largely vary between WDR26 variants). Uncropped blots are provided in Fig. S4. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/38575527), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
NMNAT1 ubiquitylation by WDR26-specific supramolecular CTLH E3 complex is independent of GID4A) Cartoon with CTLH E3 complex subunits forming scaffold (SC), catalytic (Cat), and supramolecular assembly (SA) modules. SC and Cat modules assemble the core-CTLH E3.B) Coomassie-stained SDS-PAGE showing purified recombinant core-complex (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA), the supramolecular assemblies MKLN1-CTLH (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA-MKLN1) and WDR26-CTLH (RANBP9-TWA12xS-ARMC8-RMND5A-MAEA-WDR26), and CTLH substrate NMNAT1. TWA1 is C-terminally tagged with 2xStrep.C) Fluorescent scans of SDS-PAGE gels presenting time course of in vitro ubiquitylation assay to test different CTLH E3 complex assemblies, in the absence or presence of GID4, for the ubiquitylation of N-terminally fluorescently tagged TAMRA-NMNAT1 (TAMRANMNAT1) (top panels) and of fluorescently tagged model substrate peptide PGLW(X)n-23K-FAM (pepFAM) with lysine at position 23 (bottom panels). *, indicates unspecific products.D) Coomassie-stained SDS-PAGE showing Strep-Tactin precipitated samples of in vitro binding assay testing interaction between NMNAT1 and either core-CTLH or WDR26-CTLH E3 complexes comprising C-terminally 2xStrep-tagged TWA1 (TWA12xS).E) For in vitro binding assay, NMNAT1 was incubated with individual GST-TEV-tagged CTLH subunits GID4, MKLN1, and WDR26 (I, input), followed by GST-affinity chromatography. GST-precipitates were treated with TEV to elute protein complexes (E, eluate) analyzed by Coomassie-stained SDS-PAGE and immunoblot (IB) analysis.F) TUBEHalo-captured proteins from indicated cell lines were precipitated with Halo-resin (TUBE: pellet) and analyzed by immunoblot analysis. Actin serves as protein input control. Image collected and cropped by CiteAb from the following open publication (https://linkinghub.elsevier.com/retrieve/pii/S1097276524003290), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
WDR26 mutants exhibit binding defects with core-CTLH E3 complex.A) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 and parental control cells. Input (inp) and immunoprecipitants (IP) were analyzed by immunoblotting.B)-C) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 variants from different individuals (Ind#). Immunoblot analysis of inp and IP-captured proteins for each individual are presented separately for efficient detection (expression levels largely vary between WDR26 variants). Uncropped blots are provided in Fig. S4. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/38575527), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
Ubiquitome-enrichment proteomics reveals a CTLH E3 substrateA) Workflow of the proteomics study indicating the used HEK293 cell systems (1) parental vs MAEA-/- knockout and (2) MAEA-/- + MAEA rescue line (resMAEA-/-) vs MAEA-/-, enrichment of ubiquitylated proteins with Halo-tagged pan-TUBE (TUBEHalo), followed by DDA- or DIA-quantitation and data processing/analysis.B) Individual volcano plots of the -log10 p-values vs the log2 protein abundance of TUBE-precipitates between parental and two MAEA-/- clones (cl1 and cl8). 5% p-value and 4x cut off are indicated.C) Individual volcano plots of the -log10 p-values vs the log2 protein abundance of TUBE-precipitates between resMAEA-/- vs MAEA-/-cl8 and between parental vs MAEA-/-cl8. 5% p-value and 4x cut off are indicated.D) Venn diagrams showing overlapping proteins from 5% p-value and 4x cut off of B and C.E) TUBEHalo-captured proteins from MAEA-/-cl8 and resMAEA-/- cell lines were precipitated with Halo-resin (TUBE: pellet) and analyzed by immunoblot analysis. Vinculin serves as protein input control. Image collected and cropped by CiteAb from the following open publication (https://linkinghub.elsevier.com/retrieve/pii/S1097276524003290), licensed under a CC-BY license. Not internally tested by R&D Systems.Detection of EMP/MAEA by Western Blot
WDR26 mutants exhibit binding defects with core-CTLH E3 complex.A) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 and parental control cells. Input (inp) and immunoprecipitants (IP) were analyzed by immunoblotting.B)-C) HA immunoprecipitation from WDR26-/-; MKLN1-/- cells stably expressing HA-tagged WDR26 variants from different individuals (Ind#). Immunoblot analysis of inp and IP-captured proteins for each individual are presented separately for efficient detection (expression levels largely vary between WDR26 variants). Uncropped blots are provided in Fig. S4. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/38575527), licensed under a CC-BY license. Not internally tested by R&D Systems.Applications for EMP/MAEA Antibody
Immunocytochemistry
Sample: Immersion fixed Jurkat human acute T cell leukemia cell line
Western Blot
Sample: C2C12 mouse myoblast cell line, Jurkat human acute T cell leukemia cell line, K562 human chronic myelogenous leukemia cell line, and NR8383 rat alveolar macrophage cell line
Formulation, Preparation, and Storage
Purification
Reconstitution
Sterile PBS to a final concentration of 0.2 mg/mL. For liquid material, refer to CoA for concentration.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: EMP/MAEA
Long Name
Alternate Names
Gene Symbol
UniProt
Additional EMP/MAEA Products
Product Documents for EMP/MAEA Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for EMP/MAEA Antibody
For research use only
Related Research Areas
Citations for EMP/MAEA Antibody
Customer Reviews for EMP/MAEA Antibody
There are currently no reviews for this product. Be the first to review EMP/MAEA Antibody and earn rewards!
Have you used EMP/MAEA Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 for a review with an image
$10/€7/£6/$10CAN/¥1110 for a review without an image
Submit a review
