Human/Mouse/Rat FoxP3 Alexa Fluor® 647-conjugated Antibody

Recombinant Monoclonal Antibody
Catalog # Availability Size / Price Qty
IC8970R-025
IC8970R-100
Detection of FoxP3 in Human PBMCs by Flow Cytometry.
5 Images
Product Details
FAQs
Supplemental Products
Reviews

Human/Mouse/Rat FoxP3 Alexa Fluor® 647-conjugated Antibody Summary

Species Reactivity
Human, Mouse, Rat
Specificity
Detects human FoxP3 in direct ELISAs. Detects human, mouse, and rat FoxP3 in flow cytometry.
Source
Recombinant Monoclonal Mouse IgG1 Clone # 376209
Purification
Protein A or G purified from cell culture supernatant
Immunogen
E. coli-derived recombinant human FoxP3
Gln105-Lys200
Accession # Q9BZS1
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Label
Alexa Fluor 647

Applications

Recommended Concentration
Sample
Intracellular Staining by Flow Cytometry
5 µL/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Examples

Intracellular Staining by Flow Cytometry Detection of FoxP3 in Human PBMCs by Flow Cytometry. View Larger

Detection of FoxP3 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # IC8970R) and Mouse Anti-Human CD4 Fluorescein‑conjugated Monoclonal Antibody (Catalog # FAB3791F). Quadrant markers were set based on control antibody staining (Catalog # IC002R). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Intracellular Staining by Flow Cytometry Detection of FoxP3 in Human PBMCs by Flow Cytometry. View Larger

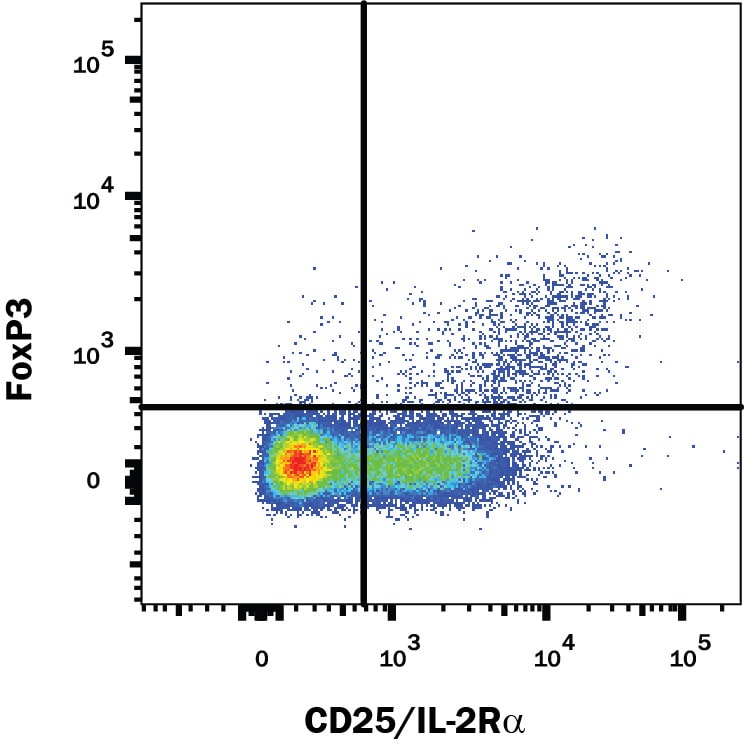

Detection of FoxP3 in Human PBMCs by Flow Cytometry. Human peripheral blood mononuclear cells (PBMCs) were stained with Mouse Anti-Human/Mouse/Rat FoxP3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # IC8970R) and Mouse Anti-Human CD25/IL-2 R alpha PE‑conjugated Monoclonal Antibody (Catalog # FAB1020P). Quadrant markers were set based on control antibody staining (Catalog # IC002R). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Intracellular Staining by Flow Cytometry Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. View Larger

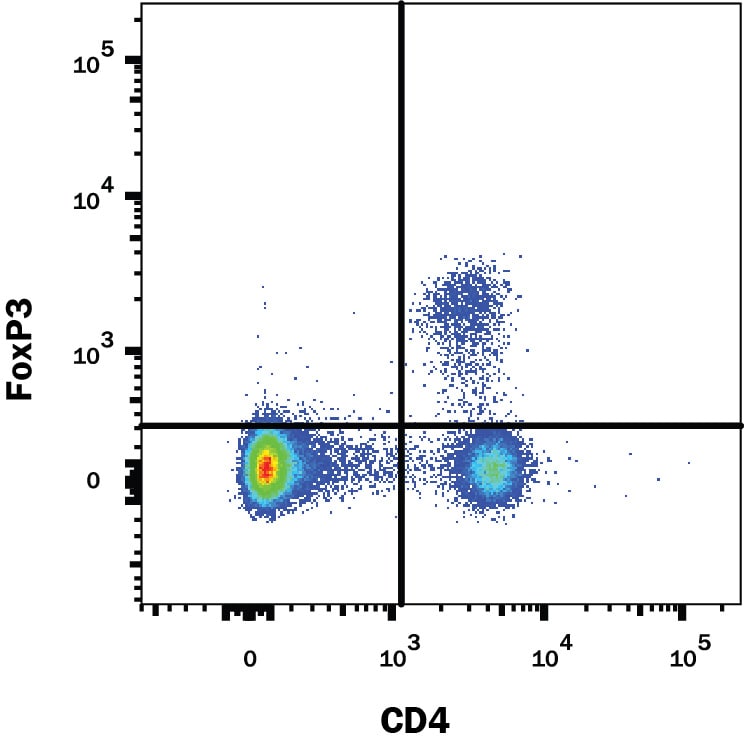

Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # IC8970R) and Rat Anti-Mouse CD4 Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # FAB554G). Quadrant markers were set based on control antibody staining (Catalog # IC002R). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Intracellular Staining by Flow Cytometry Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. View Larger

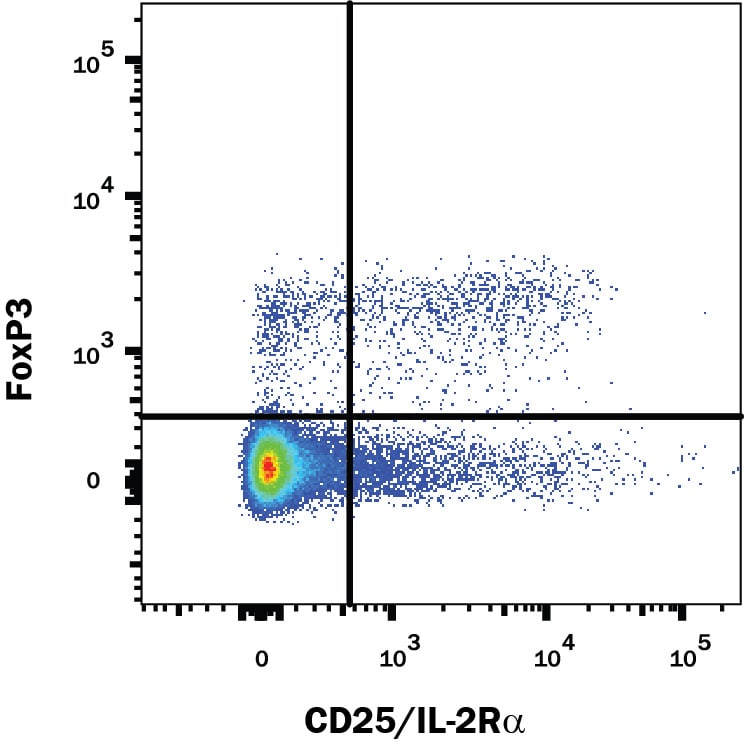

Detection of FoxP3 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # IC8970R) and Rat Anti-Mouse CD25/IL-2 R alpha PE‑conjugated Monoclonal Antibody (Catalog # FAB2438P). Quadrant markers were set based on control antibody staining (Catalog # IC002R). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Intracellular Staining by Flow Cytometry Detection of FoxP3 in Rat Splenocytes by Flow Cytometry. View Larger

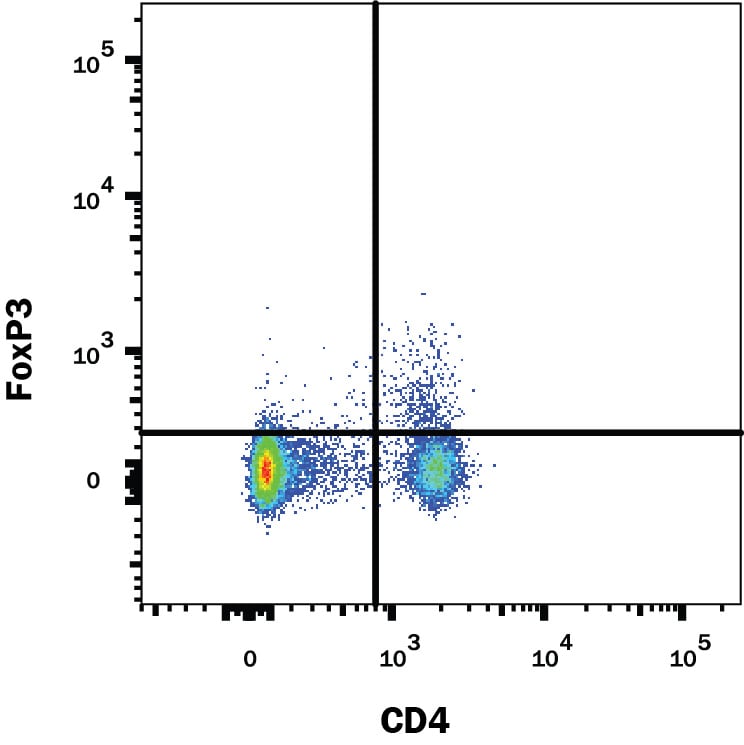

Detection of FoxP3 in Rat Splenocytes by Flow Cytometry. Rat splenocytes were stained with Mouse Anti-Human/Mouse/Rat FoxP3 Alexa Fluor® 647‑conjugated Monoclonal Antibody (Catalog # IC8970R) and Anti-Rat CD4 APC-conjugated Antibody. Quadrant markers were set based on control antibody staining (Catalog # IC002R). To facilitate intracellular staining, cells were fixed and permeabilized with FlowX FoxP3 Fixation & Permeabilization Buffer Kit (Catalog # FC012). View our protocol for Staining Intracellular Molecules.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Preparation and Storage

Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: FoxP3

Human FoxP3 is a 431 amino acid (aa), 47 kDa member of the P subclass of the FOX (forkhead box) family of transcription factors. It contains a Leu-rich repeat, a C2H2 zinc finger region, and a C-terminal FKH (fork head), DNA-binding domain. Three alternative splicing events have been described in human. The first shows a deletion of aa 72-106, a second exhibits a deletion of aa 246-272, and a third records a 60 aa insertion after Lys382. These events are likely not to be mutually exclusive. The first isoform (plus the full-length form) occurs in CD4+CD25+ T cells, while the less frequent second isoform appears in CD8+ Tregs. The mouse FoxP3 gene does not appear to be spliced. In addition, FoxP3 is found only in Tregs in mouse, while human FoxP3 appears in both Tregs and CD4+ and CD8+ conventional T cells.

Both mouse and human FoxP3 undergo proteolytic processing, after Arg51 and Arg417 in human, and at equivalent sites in mouse. Cleavage at the N-terminus generate a 41 kDa isoform, whereas C-terminal cleavage generates an isoform indistinguishable from the full-length isoform (47 kDa) in SDS-PAGE.

FoxP3 can act as a transcriptional repressor (for IL-2) via an interaction with HDAC7. By contrast, it can also act as a transcriptional activator (for GITRL and
CTLA-4) through an interaction with RUNX7. Notably, for both human and mouse, full-length 47 kDa FoxP3 will induce high levels of CTLA-4 on expressing cells. However, when the C-terminally truncated isoform (at Arg417) is considered, IL-10 promoting activity is enhanced in mouse, while suppressive activity is lost in human. Over aa 105-200, human FoxP3 shares 83% and 84% aa sequence identity with rat and mouse FoxP3, respectively.

Long Name
Forkhead Box P3
Entrez Gene IDs
50943 (Human); 20371 (Mouse)
Alternate Names
AIID; AIIDMGC141961; DIETER; forkhead box P3; Forkhead Box Protein P3; FoxP3; FOXP3delta7; immune dysregulation, polyendocrinopathy, enteropathy, X-linked; Immunodeficiency, Polyendocrinopathy, Enteropathy, X-Linked; IPEX; JM2; MGC141961; MGC141963; PIDX; PIDXMGC141963; SCURFIN; XPID; XPIDpolyendocrinopathy, enteropathy, X-linked
