Human Soluble gp130 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Human gp130 ELISA Serum/Plasma Standard Curve
3 Images
Product Details
Citations (14)
Supplemental Products
Reviews (4)

Human Soluble gp130 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours or 5.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (100 uL), Serum (10 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Citrate Plasma (10 uL)
0.08 ng/mL
Assay Range
0.1 - 8 ng/mL (Cell Culture Supernates), 0.3 - 16 ng/mL (Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma)
Natural and recombinant human sgp130
< 0.5% cross-reactivity observed with available related molecules.Cross-species reactivity not tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human soluble gp130 Immunoassay is a 4.5 or 5.5 hour solid phase ELISA designed to measure sgp130 in cell culture supernates, serum, and plasma. It contains soluble insect cell-expressed recombinant human gp130 and antibodies raised against recombinant human gp130 and has been shown to accurately quantitate the recombinant factor. Results obtained using natural gp130 showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for natural gp130.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 0.4 1 4.43 0.4 1.02 4.5
Standard Deviation 0.02 0.07 0.33 0.02 0.1 0.31
CV% 5 7 7.4 5 9.8 6.9

Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 0.7 1.82 8.43 0.77 1.94 8.64
Standard Deviation 0.03 0.1 0.4 0.04 0.07 0.3
CV% 4.3 5.5 4.7 5.2 3.6 3.5


The recovery of sgp130 spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=5) 109 96-114
Citrate Plasma (n=5) 98 84-112
EDTA Plasma (n=5) 100 83-114
Heparin Plasma (n=5) 98 85-110
Serum (n=5) 101 83-120


To assess the linearity of the assay, five samples were spiked with high concentrations of sgp130 in various matrices and diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.

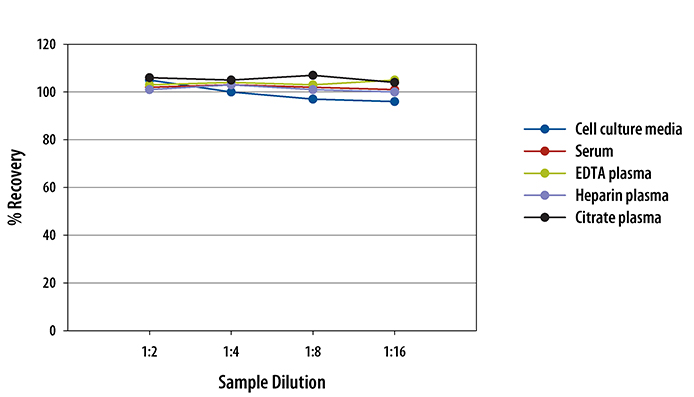

Human gp130 ELISA Linearity

Scientific Data

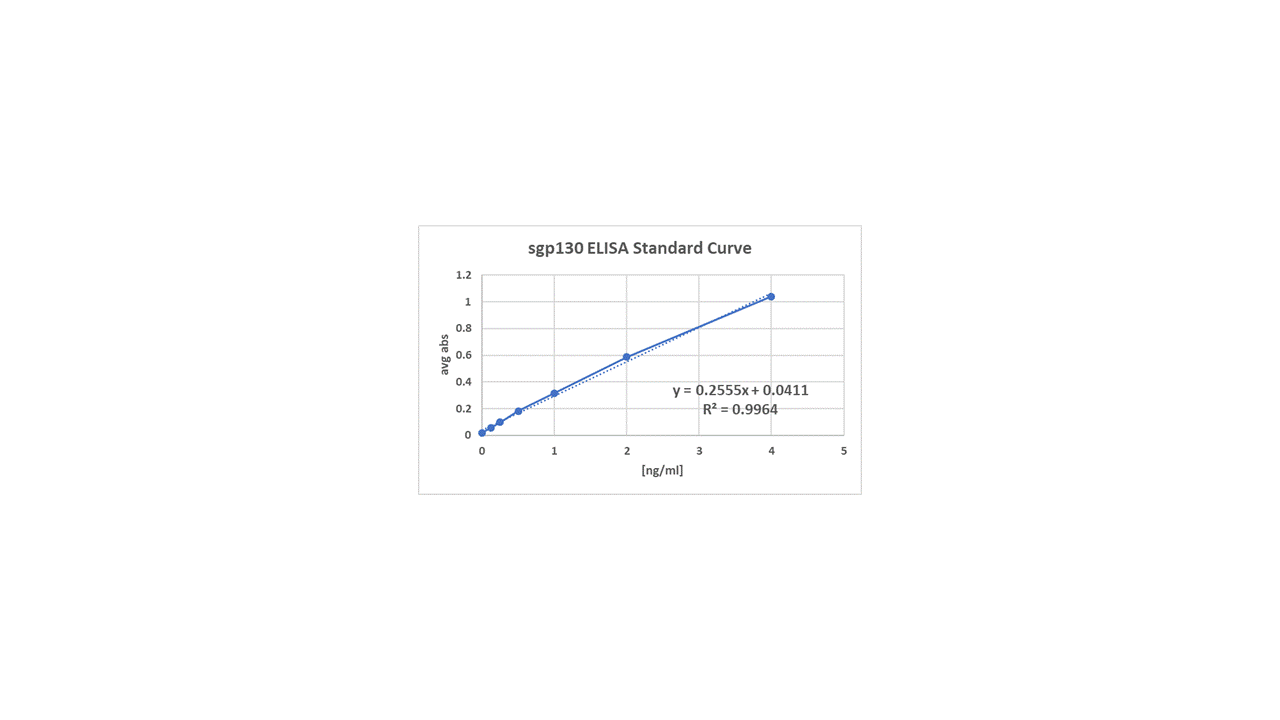

Human gp130 ELISA Serum/Plasma Standard Curve

Human gp130 ELISA Cell Culture Supernate Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: gp130

Gp130, the common signal transducing receptor component shared by the functional receptor complexes of the IL-6 family of cytokines, belongs to the classI cytokine receptor family. Binding of IL-6 or IL-11 to either the membrane-anchored or soluble IL-6 R or IL-11 R, respectively, initiates the association of IL-6 R (IL-11 R) with gp130. The complex then undergoes homodimerization and signal transduction. For other IL-6 family cytokines, such as LIF and OSM, signal transduction is similarly triggered by the heterodimerization of gp130 with LIFR or OSM R.

Long Name:
Glycoprotein 130
Entrez Gene IDs:
3572 (Human); 16195 (Mouse); 25205 (Rat); 101926138 (Cynomolgus Monkey)
Alternate Names:
CD130 antigen; CD130; CDw130; DKFZp564F053; gp130 of the rheumatoid arthritis antigenic peptide-bearing soluble form; gp130; IL-6 receptor subunit beta; IL-6R subunit beta; IL-6RB; IL-6R-beta; IL6ST; interleukin 6 signal transducer (gp130, oncostatin M receptor); interleukin receptor beta chain; interleukin-6 receptor subunit beta; Interleukin-6 signal transducer; Membrane glycoprotein 130; membrane glycoprotein gp130; Oncostatin-M receptor subunit alpha
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 100 µL Standard, Control, or Sample
  6.   Add 100 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 3 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well.
  10.   For Serum & Plasma Samples: Cover with a new plate sealer, and incubate at room temperature for 1 hour.
    For Cell Culture Supernate Samples: Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  11.   Aspirate and wash 4 times.

  12. 200 µL Substrate Solution
  13.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  14. 50 µL Stop Solution
  15. Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
