Human Thrombomodulin/BDCA-3 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Human Thrombomodulin/BDCA-3 ELISA Standard Curve
2 Images
Product Details
Citations (11)
Supplemental Products
Reviews (1)

Human Thrombomodulin/BDCA-3 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
27 pg/mL
Assay Range
62.5 - 4,000 pg/mL (Cell Culture Supernates, Cell Lysates, Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma, Urine)
Natural and recombinant human Thrombomodulin. This kit also recognizes Thrombomodulin complexed with Thrombin, Protein C, and Thrombin/Protein C.
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human Thrombomodulin Immunoassay is a 4.5 hour solid phase ELISA designed to measure human Thrombomodulin in cell culture supernates, cell lysates, serum, plasma, and urine. It contains NS0-expressed recombinant human Thrombomodulin and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human Thrombomodulin showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human Thrombomodulin.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Cell Lysates, Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma, Urine

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 571 1123 2318 518 1073 2159
Standard Deviation 13.2 31.1 83.9 41.2 76.1 123
CV% 2.3 2.8 3.6 7.9 7.1 5.7


The recovery of Thrombomodulin spiked to levels throughout the range of the assay was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 96 88-106
Citrate Plasma (n=4) 94 85-102
EDTA Plasma (n=4) 95 86-105
Heparin Plasma (n=4) 91 85-96
Serum (n=4) 89 85-96
Urine (n=4) 99 85-115

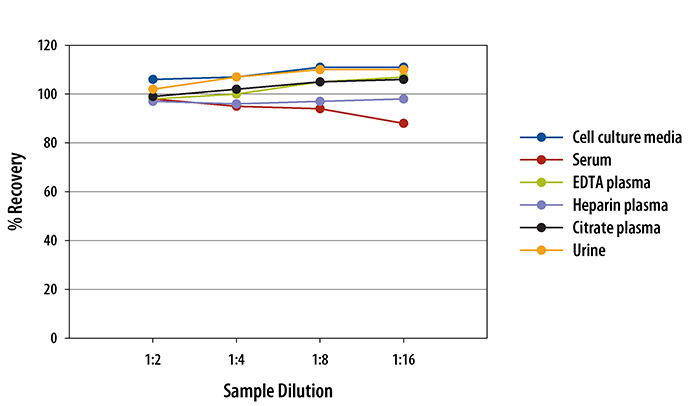

To assess the linearity of the assay, samples containing high concentrations of Thrombomodulin were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human Thrombomodulin/BDCA-3 ELISA Linearity

Scientific Data

Human Thrombomodulin/BDCA-3 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Thrombomodulin/BDCA-3

Thrombomodulin (TM), also known as CD141 and BDCA3, is a transmembrane expressed on vascular endothelial cells (EC), arterial smooth muscle cells, monocytes, and macrophages. It binds Thrombin and enhances the Thrombin-mediated activation of the anti-coagulant Protein C and the anti-fibrinolytic TAFI/Carboxypeptidase B2. Thrombomodulin also inhibits the ability of Thrombin to activate several pro-coagulant proteins (e.g. Fibrinogen, Factor V, Factor XIII, PAR-1). Thrombomodulin exerts multiple anti-inflammatory effects and reduces the severity of disease involving chronic inflammation. In cancer, Thrombomodulin suppresses tumor angiogenesis, growth, and epithelial-mesenchymal transition. Soluble fragments of Thrombomodulin are elevated in the serum, urine, and synovial fluid during coagulation disorders, inflammation, and organ failure.

Entrez Gene IDs:
7056 (Human); 21824 (Mouse); 83580 (Rat)
Alternate Names:
BDCA3; BDCA-3; CD141 antigen; CD141; Fetomodulin; THBD; THRM; Thrombomodulin; TM
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
