• Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours
  • Sample Type & Volume Required Per Well
    Cell Culture Supernates (50 uL), Serum (50 uL), EDTA Plasma (50 uL), Heparin Plasma (50 uL)
  • Sensitivity
    31.3 pg/mL
  • Assay Range
    125.0 - 4,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
  • Specificity
    Natural and recombinant human VEGF-D
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    No significant interference observed with available related molecules.
Control Available
Product Summary
The Quantikine Human VEGF-D Immunoassay is a 4.5 hour solid phase ELISA designed to measure VEGF-D levels in cell culture supernates, serum, and plasma. It contains Sf 21-expressed, recombinant human VEGF-D and antibodies raised against the recombinant protein. Results obtained for naturally occurring human VEGF-D showed linear curves that were parallel to the standard curves obtained using the kit standards. These results indicate that this kit can be used to determine relative mass values for natural human VEGF-D.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Cell Culture Supernates
Intra-Assay Precision Inter-Assay Precision
Standard Deviation31.835.545.646.372.8117

Serum, EDTA Plasma, Heparin Plasma
Intra-Assay Precision Inter-Assay Precision
Standard Deviation27.840.949.33868.5145


The recovery of VEGF-D spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 100 97-104
EDTA Plasma (n=5) 105 89-114
Heparin Plasma (n=5) 104 88-114
Serum (n=5) 106 94-113

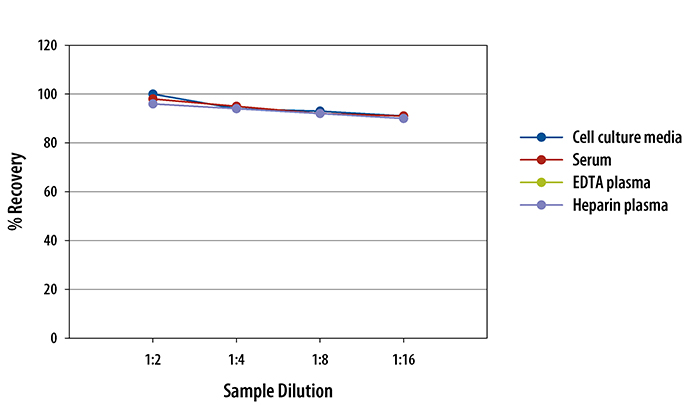

To assess the linearity of the assay, samples were spiked with high concentrations of VEGF-D in various matrices and diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human VEGF-D Quantikine ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: VEGF-D

Vascular endothelia growth factor D (VEGF-D), also known as c-fos-induced growth factor (FIGF), is a secreted glycoprotein of the VEGF/PDGF family. VEGFs regulate angiogenesis and lymphangiogenesis during development and tumor growth, and are characterized by eight conserved cysteine residues that form a cystine knot structure. VEGF-C and VEGF-D, which share 23% amino acid (aa) sequence identity, are uniquely expressed as preproproteins that contain long N- and C-terminal propeptide extensions around the VEGF homology domain (VHD). Proteolytic processing of the 354 aa VEGF-D preproprotein creates a secreted proprotein. Further processing by extracellular serine proteases, such as plasmin or furin-like proprotein convertases, forms mature VEGF-D consisting of non-covalently linked 42 kDa homodimers of the 117 aa VHD.

Mature human VEGF-D shares 94%, 95%, 99%, 97% and 93% aa identity with mouse, rat, equine, canine and bovine VEGF-D, respectively. It is expressed in adult lung, heart, muscle, and small intestine, and is most abundantly expressed in fetal lungs and skin. Mouse and human VEGF-D are ligands for VEGF receptor 3 (VEGF R3, also called Flt-4) that are active across species and show enhanced affinity when processed. Processed human VEGF-D is also a ligand for VEGF R2, also called Flk-1 or KDR. VEGF R3 is strongly expressed in lymphatic endothelial cells and is essential for regulation of the growth and differentiation of lymphatic endothelium. While VEGF-C is the critical ligand for VEGF R3 during embryonic lymphatic development, VEGF-D is most active in neonatal lymphatic maturation and bone growth. Both promote tumor lymphangiogenesis. Consonant with their activity on VEGF receptors, binding of VEGF-C and VEGF-D to neuropilins contributes to VEGF R3 signaling in lymphangiogenesis, while binding to integrin α9β1 mediates endothelial cell adhesion and migration.

    • Long Name
      Vascular Endothelial Growth Factor D/cFos-induced Growth Factor
    • Entrez Gene IDs
      2277 (Human); 14205 (Mouse);
    • Alternate Names
      c-fos induced growth factor (vascular endothelial growth factor D); FIGF; vascular endothelial growth factor D; VEGFD; VEGF-DVEGFDc-Fos-induced growth factor;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 50 µL Standard, Control, or Sample
    6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
    7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    8. 200 µL Conjugate
    9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
    10.   Aspirate and wash 4 times.

    11. 200 µL Substrate Solution
    12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

    13. 50 µL Stop Solution
    14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

    R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

    Showing Results 1 - 10 of 19
    Filter your results:

    Sample Type
    1. Clinical utility of diagnostic guidelines and putative biomarkers in lymphangioleiomyomatosis.
      Respir. Res., 2012;13(0):34.
      Species: Human
      Sample Type: Serum

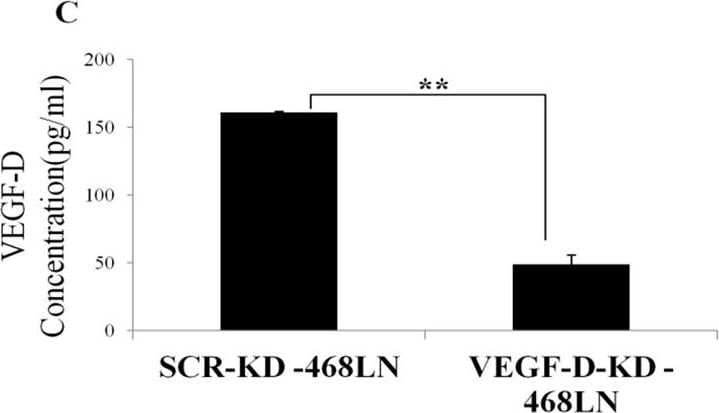

    2. Co-expression of alpha9beta1 integrin and VEGF-D confers lymphatic metastatic ability to a human breast cancer cell line MDA-MB-468LN.
