XCR1, also known as GPR5 and Lymphotactin/SCM-1 (Single Cysteine Motif 1) Receptor, is a 38 kDa member of the G-protein coupled receptor 1 family. It binds XCL1/Lymphotactin/SCM-1 alpha and XCL2/SCM-1 beta. In addition, Human Herpes Virus 8 (HHV8) encodes two viral chemokines vCCL2/vMIP-II and vCCL3/vMIP-III that function as an antagonist and a highly selective agonist, respectively, for XCR1. XCR1 is expressed on neutrophils, CD8+ T cells, NK cells, CD4+ T cells and B cells. Human XCR1 is a 333 amino acid (aa), 7-transmembrane molecule. It contains a 32 aa N-terminus that lacks glycosylation sites and a 42 aa C-terminal cytoplasmic tail. Over the extracellular regions used for immunization, human XCR1 shares 62%, 54% and 64% aa identity with canine, mouse and porcine XCR1, respectively.
Human XCR1 PE‑conjugated Antibody
R&D Systems | Catalog # FAB857P
Key Product Details
Validated by
Biological Validation
Species Reactivity
Validated:
Human
Cited:
Human
Applications
Validated:
Flow Cytometry
Cited:
Flow Cytometry
Label
Phycoerythrin (Excitation = 488 nm, Emission = 565-605 nm)
Antibody Source
Polyclonal Goat IgG
Loading...
Product Specifications
Immunogen
E. coli-derived recombinant human XCR1
Met1-Thr31, Ser89-Lys103, His168-His190, Phe251-Tyr267
Accession # P46094
Met1-Thr31, Ser89-Lys103, His168-His190, Phe251-Tyr267
Accession # P46094
Specificity
Detects human XCR1 in direct ELISAs and Western blots.
Clonality
Polyclonal
Host
Goat
Isotype
IgG
Scientific Data Images for Human XCR1 PE‑conjugated Antibody
Detection of XCR1 in Human PBMCs by Flow Cytometry.
Human peripheral blood mononuclear cells (PBMCs) treated with LPS were stained with Goat Anti-Human XCR1 PE-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB857P, filled histogram) or isotype control antibody (Catalog # IC108P, open histogram). View our protocol for Staining Membrane-associated Proteins.

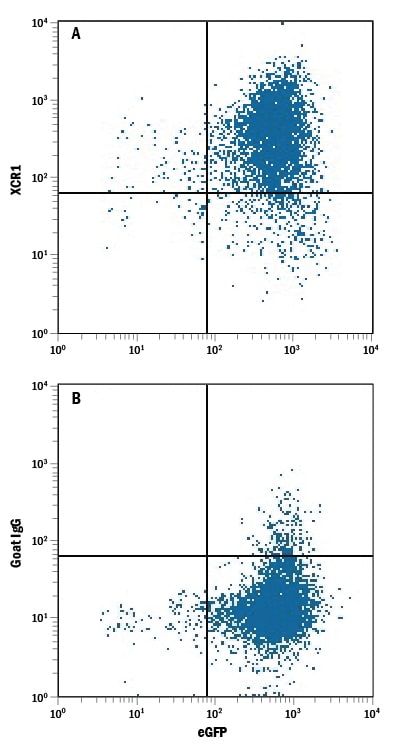

Detection of XCR1 in NS0 Mouse Cell Line Transfected with Human XCR1 and eGFP by Flow Cytometry.
NS0 mouse myeloma cell line transfected with human XCR1 and eGFP was stained with either (A) Goat Anti-Human XCR1 PE-conjugated Antigen Affinity-purified Polyclonal Antibody (Catalog # FAB857P) or (B) Normal Goat IgG Phycoerythrin Control (Catalog # IC108P). View our protocol for Staining Membrane-associated Proteins.Applications for Human XCR1 PE‑conjugated Antibody
Application
Recommended Usage
Flow Cytometry
10 µL/106 cells
Sample: Human peripheral blood mononuclear cells (PBMCs) treated with LPS and NS0 mouse myeloma cell line transfected with human XCR1 and eGFP
Sample: Human peripheral blood mononuclear cells (PBMCs) treated with LPS and NS0 mouse myeloma cell line transfected with human XCR1 and eGFP
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra Viewer
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Antigen Affinity-purified
Formulation
Supplied in a saline solution containing BSA and Sodium Azide.
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: XCR1
Long Name
Chemokine [C Motif] Receptor 1
Alternate Names
CCXCR1, GPR5
Gene Symbol
XCR1
UniProt
