Mouse CCL4/MIP-1 beta Quantikine ELISA Kit

(24 citations)
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours
  • Sample Type & Volume Required Per Well
    Cell Culture Supernates (50 uL), Serum (25 uL), EDTA Plasma (25 uL)
  • Sensitivity
    3 pg/mL
  • Assay Range
    7.8 - 500 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma)
  • Specificity
    Natural and recombinant mouse MIP-1 beta
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    No significant interference observed with available related molecules.
Product Summary
The Quantikine Mouse MIP-1 beta Immunoassay is a 4.5 hour solid phase ELISA designed to measure mouse MIP-1 beta levels in cell culture supernates, serum, and plasma. It contains E. coli-expressed recombinant mouse MIP-1 beta and antibodies raised against the recombinant factor. This immunoassay has been shown to quantitate the recombinant mouse MIP-1 beta accurately. Results obtained using natural mouse MIP-1 beta showed dose response curves that were parallel to the standard curves obtained using the recombinant standards. These results indicate that this kit can be used to determine relative mass values for natural mouse MIP-1 beta.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Cell Culture Supernates, Serum, EDTA Plasma
Intra-Assay Precision Inter-Assay Precision
Standard Deviation2.


The recovery of mouse MIP-1 beta spiked to three levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Supernates (n=5) 104 86-118
EDTA Plasma (n=5) 99 87-106
Serum (n=5) 101 93-109

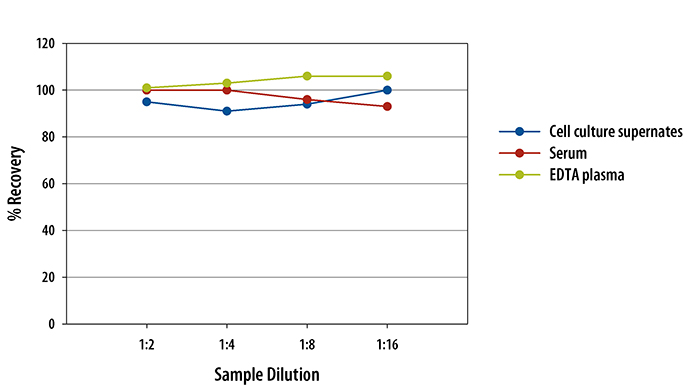

To assess the linearity of the assay, five or more samples containing and/or spiked with various concentrations of mouse MIP-1 beta in each matrix were diluted with Calibrator Diluent and then assayed.
Mouse CCL4/MIP-1 beta Quantikine ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: CCL4/MIP-1 beta
CCL4/MIP-1 beta is a beta chemokine that is secreted at sites of inflammation by activated leukocytes, lymphocytes, vascular endothelial cells, and pulmonary smooth muscle cells. It attracts a variety of immune cells to sites of microbial infection as well as to other pathologic inflammation such as allergic asthma and ischemic myocardium. CCL4 is secreted from activated monocytes as a heterodimer with CCL3/MIP-1 alpha. It signals through CCR5, and an N-terminally trimmed form additionally interacts with CCR1 and CCR2. In humans, the ability of CCL4 to bind CCR5 inhibits the cellular entry of M-tropic HIV-1 which utilizes CCR5 as a coreceptor.
    • Entrez Gene IDs
      6351 (Human); 20303 (Mouse); 116637 (Rat); 448786 (Canine);
    • Alternate Names
      ACT2; ACT-2; AT744.1; C-C motif chemokine 4; chemokine (C-C motif) ligand 4; Exodus-3; G-26 T-lymphocyte-secreted protein; G-26; HC21; LAG1; LAG-1; Lymphocyte activation gene 1 protein; Macrophage inflammatory protein 1-beta; MIP1 beta; MIP-1 beta; MIP1B; MIP1B1; MIP-1-beta; MIP-1-beta(1-69); PAT 744; Protein H400; SCYA2; SCYA4; secreted protein G-26; SIS-gamma; small inducible cytokine A4 (homologous to mouse Mip-1b); Small-inducible cytokine A4; T-cell activation protein 2;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 50 µL Assay Diluent
    4.   Add 50 µL of Assay Diluent to each well.

    5. 50 µL Standard, Control, or Sample
    6.   Add 50 µL of Standard, Control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
    7.   Aspirate each well and wash, repeating the process 4 times for a total of 5 washes.

    8. 100 µL Conjugate
    9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
    10.   Aspirate and wash 5 times.

    11. 100 µL Substrate Solution
    12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

    13. 100 µL Stop Solution
    14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

    R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

    Showing Results 1 - 10 of 24
    Filter your results:

    Sample Type
    1. Cleavage of the T cell protein tyrosine phosphatase by the hepatitis C virus nonstructural 3/4A protease induces a Th1 to Th2 shift reversible by ribavirin therapy.
      Authors: Brenndorfer E, Brass A, Karthe J, Ahlen G, Bode J, Sallberg M
      J Immunol, 2014;192(4):1671-80.
      Species: Mouse
      Sample Type: Cell Extracts
    2. CCL3 production by microglial cells modulates disease severity in murine models of retinal degeneration.
      Authors: Kohno H, Maeda T, Perusek L, Pearlman E, Maeda A
      J Immunol, 2014;192(8):3816-27.
      Species: Mouse
      Sample Type: Tissue Homogenates
    3. Interferon gamma-induced intratumoral expression of CXCL9 alters the local distribution of T cells following immunotherapy with
      Authors: Guirnalda P, Wood L, Goenka R, Crespo J, Paterson Y
      Oncoimmunology, 2013;2(8):e25752.
      Species: Mouse
      Sample Type: Homogenized Tissue
    4. Potential roles of CCR5(+) CCR6(+) dendritic cells induced by nasal ovalbumin plus Flt3 ligand expressing adenovirus for mucosal IgA responses.
      Authors: Fukuyama Y, Tokuhara D, Sekine S, Aso K, Kataoka K, Davydova J, Yamamoto M, Gilbert R, Tokuhara Y, Fujihashi K, Kunisawa J, Yuki Y, Kiyono H, McGhee J, Fujihashi K
      PLoS ONE, 2013;8(4):e60453.
      Species: Mouse
      Sample Type: cell culture supernate
    5. Modelling of mouse experimental colitis by global property screens: a holistic approach to assess drug effects in inflammatory bowel disease.
      Authors: Gottfries J, Melgar S, Michaelsson E
      PLoS ONE, 2012;7(1):e30005.
      Species: Mouse
      Sample Type: Tissue Homogenates
    6. TLR9 agonist, but not TLR7/8, functions as an adjuvant to diminish FI-RSV vaccine-enhanced disease, while either agonist used as therapy during primary RSV infection increases disease severity.
      Authors: Johnson TR, Rao S, Seder RA, Chen M, Graham BS
      Vaccine, 2009;27(23):3045-52.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    7. CCR5 is involved in resolution of inflammation in proteoglycan-induced arthritis.
      Authors: Doodes PD, Cao Y, Hamel KM, Wang Y, Rodeghero RL, Kobezda T, Finnegan A
      Arthritis Rheum., 2009;60(10):2945-53.
      Species: Mouse
      Sample Type: Serum
    8. Endotoxin augmented antigen-induced Th1 cell trafficking amplifies airway neutrophilic inflammation.
      Authors: Mikhak Z, Farsidjani A, Luster AD
      J. Immunol., 2009;182(12):7946-56.
      Species: Mouse
      Sample Type: BALF
    9. Pulmonary eosinophilia requires interleukin-5, eotaxin-1, and CD4+ T cells in mice immunized with respiratory syncytial virus G glycoprotein.
      Authors: Johnson TR, Rothenberg ME, Graham BS
      J. Leukoc. Biol., 2008;84(3):748-59.
      Species: Mouse
      Sample Type: Tissue Homogenates
    10. Role of the chemokine decoy receptor D6 in balancing inflammation, immune activation, and antimicrobial resistance in Mycobacterium tuberculosis infection.
      Authors: Di Liberto D, Locati M, Caccamo N, Vecchi A, Meraviglia S, Salerno A, Sireci G, Nebuloni M, Caceres N, Cardona PJ, Dieli F, Mantovani A
      J. Exp. Med., 2008;205(9):2075-84.
      Species: Mouse
      Sample Type: Serum
    11. Cannabinoid-2 receptor mediates protection against hepatic ischemia/reperfusion injury.
      Authors: Batkai S, Osei-Hyiaman D, Pan H, El-Assal O, Rajesh M, Mukhopadhyay P, Hong F, Harvey-White J, Jafri A, Hasko G, Huffman JW, Gao B, Kunos G, Pacher P
      FASEB J., 2007;21(8):1788-800.
      Species: Mouse
      Sample Type: Tissue Homogenates
    12. CCL4 protects from type 1 diabetes by altering islet beta-cell-targeted inflammatory responses.
      Authors: Meagher C, Arreaza G, Peters A, Strathdee CA, Gilbert PA, Mi QS, Santamaria P, Dekaban GA, Delovitch TL
      Diabetes, 2007;56(3):809-17.
      Species: Mouse
      Sample Type: Serum
    13. The direct action of 1alpha,25(OH)2-vitamin D3 on purified mouse Langerhans cells.
      Authors: Fujita H, Asahina A, Komine M, Tamaki K
      Cell. Immunol., 2007;245(2):70-9.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    14. Immunosuppressant triptolide inhibits dendritic cell-mediated chemoattraction of neutrophils and T cells through inhibiting Stat3 phosphorylation and NF-kappaB activation.
      Authors: Liu Q, Chen T, Chen G, Li N, Wang J, Ma P, Cao X
      Biochem. Biophys. Res. Commun., 2006;345(3):1122-30.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    15. Organ-specific role of MyD88 for gene regulation during polymicrobial peritonitis.
      Authors: Weighardt H, Mages J, Jusek G, Kaiser-Moore S, Lang R, Holzmann B
      Infect. Immun., 2006;74(6):3618-32.
      Species: Mouse
      Sample Type: Tissue Homogenates
    16. Deficiency of P-selectin or P-selectin glycoprotein ligand-1 leads to accelerated development of glomerulonephritis and increased expression of CC chemokine ligand 2 in lupus-prone mice.
      Authors: He X, Schoeb TR, Panoskaltsis-Mortari A, Zinn KR, Kesterson RA, Zhang J, Samuel S, Hicks MJ, Hickey MJ, Bullard DC
      J. Immunol., 2006;177(12):8748-56.
      Species: Mouse
      Sample Type: Tissue Homogenates
    17. Local production of chemokines and prostaglandin E2 in the acute, chronic and recovery phase of murine experimental colitis.
      Authors: Drmotova M, Rehnstrom E, Jansson L
      Cytokine, 2006;35(5):275-83.
      Species: Mouse
      Sample Type: Tissue Homogenates
    18. Immunization with gp120-depleted whole killed HIV immunogen and a second-generation CpG DNA elicits strong HIV-specific responses in mice.
      Authors: Trabattoni D, Clivio A, Bray DH, Bhagat L, Beltrami S, Maffeis G, Cesana E, Lowry P, Lissoni F, Kandimalla ER, Sullivan T, Agrawal S, Bartholomew R, Clerici M
      Vaccine, 2005;24(9):1470-7.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    19. Effects of poly(ADP-ribose) polymerase inhibition on inflammatory cell migration in a murine model of asthma.
      Authors: Virag L, Bai P, Bak I, Pacher P, Mabley JG, Liaudet L, Bakondi E, Gergely P, Kollai M, Szabo C
      Med. Sci. Monit., 2004;10(3):BR77-83.
      Species: Mouse
      Sample Type: BALF
    20. The role of gammadelta T cells in the regulation of neutrophil-mediated tissue damage after thermal injury.
      Authors: Toth B, Alexander M, Daniel T, Hubbard WJ, Schwacha MG
      J. Leukoc. Biol., 2004;76(3):545-52.
      Species: Mouse
      Sample Type: Plasma
    21. Vbeta14(+) T cells mediate the vaccine-enhanced disease induced by immunization with respiratory syncytial virus (RSV) G glycoprotein but not with formalin-inactivated RSV.
      Authors: Johnson TR, Varga SM, Braciale TJ, Graham BS
      J. Virol., 2004;78(16):8753-60.
      Species: Mouse
      Sample Type: Tissue Homogenates
    22. Role of the autocrine chemokines MIP-1alpha and MIP-1beta in the metastatic behavior of murine T cell lymphoma.
      Authors: Menten P, Saccani A, Dillen C, Wuyts A, Struyf S, Proost P, Mantovani A, Wang JM, Van Damme J
      J. Leukoc. Biol., 2002;72(4):780-9.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    23. Immunostimulatory DNA-based vaccines elicit multifaceted immune responses against HIV at systemic and mucosal sites.
      Authors: Horner AA, Datta SK, Takabayashi K, Belyakov IM, Cinman N, Nguyen MD, Van Uden JH, Berzofsky JA
      J. Immunol., 2001;167(3):1584-91.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    24. Inhibition of lipopolysaccharide-induced signal transduction in endotoxin-tolerized mouse macrophages: dysregulation of cytokine, chemokine, and toll-like receptor 2 and 4 gene expression.
      Authors: Medvedev AE, Kopydlowski KM, Vogel SN
      J. Immunol., 2000;164(11):5564-74.
      Species: Mouse
      Sample Type: Cell Culture Supernates
    Expand to show all
