Mouse MDL-1/CLEC5A APC-conjugated Antibody

  • Species Reactivity
  • Specificity
    Detects mouse MDL-1/CLEC5A. In ELISAs, approximately 50% cross-reactivity with recombinant human MDL‑1 is observed.
  • Source
    Monoclonal Rat IgG2A Clone # 226402
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    BaF3 mouse pro-B cell line transfected with mouse MDL-1/CLEC5A
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

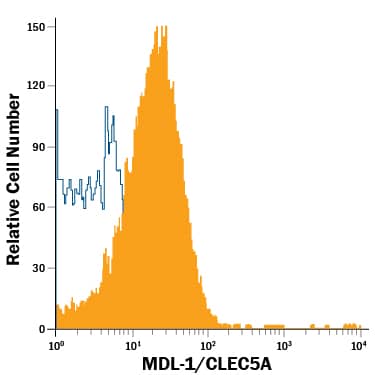

Detection of MDL‑1/CLEC5A in RAW 264.7 Mouse Cell Line by Flow Cytometry. RAW 264.7 mouse monocyte/macrophage cell line was stained with Rat Anti-Mouse MDL‑1/CLEC5A APC‑conjugated Monoclonal Antibody (Catalog # FAB1639A, filled histogram) or isotype control antibody (Catalog # IC006A, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: MDL-1/CLEC5A
MDL-1 is an approximately 40 kDa transmembrane glycoprotein belonging to the C-type lectin superfamily (CLEC5A). MDL-1 is expressed on immature myeloid cells, monocytes, macrophages, dendritic cells, neutrophils, NK cells, and osteocytes. It contains a charged lysine in the transmembrane region that enables it to associate with DAP12 and deliver an activating signal. MDL-1 mediates inflammatory responses during autoimmune arthritis and upon binding to Dengue and Japanese encephalitis viruses. The extracellular domain (ECD) of MDL-1 contains a juxtamembrane stalk region and one C-type lectin domain. Within the ECD, mouse and human MDL-1 share 67% amino acid sequence identity. In mouse, alternative splicing generates a short isoform with a 25 aa deletion in the stalk region.
  • Long Name:
    Myeloid DAP12-associating Lectin
  • Entrez Gene IDs:
    23601 (Human); 23845 (Mouse)
  • Alternate Names:
    CLEC5A; CLECSF5; CLECSF5carbohydrate-recognition domain) lectin, superfamilymember 5; C-type lectin domain family 5, member A; C-type lectin superfamily member 5; MDL1; MDL-1MGC138304; Myeloid DAP12-associating lectin 1; myeloid DAP12-associating lectin-1
