Mouse Neuropilin-1 Alexa Fluor® 488-conjugated Antibody

Catalog # Availability Size / Price Qty
Detection of Neuropilin‑1 in Mouse CD4+Splenocytes by Flow Cytometry.
1 Image
Product Details
Supplemental Products

Mouse Neuropilin-1 Alexa Fluor® 488-conjugated Antibody Summary

Species Reactivity
Detects mouse Neuropilin-1 in direct ELISAs.
Monoclonal Rat IgG2A Clone # 761704
Protein A or G purified from hybridoma culture supernatant
Mouse myeloma cell line NS0-derived recombinant mouse Neuropilin-1
Accession # P97333
Supplied in a saline solution containing BSA and Sodium Azide.
Alexa Fluor 488 (Excitation= 488 nm, Emission= 515-545 nm)


Recommended Concentration
Flow Cytometry
0.5 µg/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

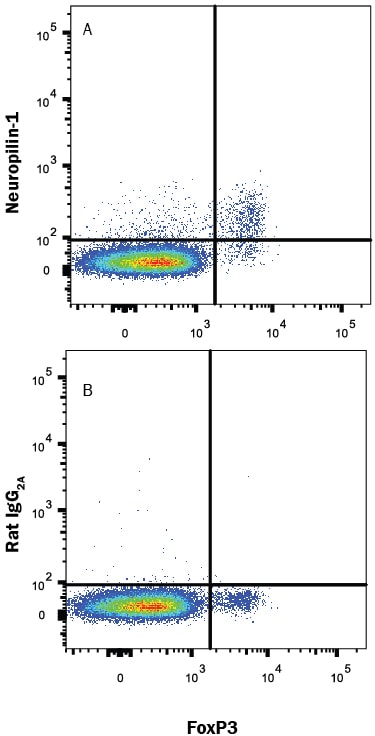

Flow Cytometry Detection of Neuropilin-1 antibody in Mouse CD4<sup>+</sup>Splenocytes antibody by Flow Cytometry. View Larger

Detection of Neuropilin‑1 in Mouse CD4+Splenocytes by Flow Cytometry. Mouse CD4+splenocytes were stained with Rabbit Anti-Human/Mouse FoxP3 Alexa Fluor® 647-conjugated Monoclonal Antibody (Catalog # IC8214R) and either (A) Rat Anti-Mouse Neuropilin-1 Alexa Fluor® 488-conjugated Monoclonal Antibody (Catalog # FAB59941G) or (B) Rat IgG2AAlexa Fluor 488 Isotype Control (Catalog # IC006G). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: Neuropilin-1

Neuropilin-1 (Nrp‑1, previously Neuropilin; also CD304) is a 130‑140 kDa type I transmembrane (TM) glycoprotein that regulates axon guidance and angiogenesis. The full-length 923 amino acid (aa) mouse Nrp‑1 contains a 835 aa extracellular domain (ECD) that shares 98% aa identity with rat and 93% aa identity with human, equine, bovine and canine Nrp-1. The ECD contains two N‑terminal CUB domains (termed a1a2), two domains with homology to coagulation factors V and VIII (b1b2) and a MAM (meprin) domain (c). The sema domains of Class III secreted semaphorins such as Sema3A bind Nrp‑1 a1a2. Heparin, the heparin-binding forms of VEGF (VEGF165, VEGF-B and VEGF-E), PlGF (PlGF2), and the C‑terminus of Sema3 bind the b1b2 region. Nrp‑1 and Nrp-2 share 48% aa identity within the ECD and can form homo‑ and hetero‑oligomers via interaction of their MAM domains. Neuropilins show partially overlapping expression in neuronal and endothelial cells during development. Both neuropilins act as co‑receptors with multiple molecules, which for Nrp-1 includes Sema3A through Sema3F, Plexin A1 through A4, Plexin B1 and D1. It also interacts with Robo1 and as noted, Nrp-2, as a heterodimer, which binds Sema3C. Finally, it has recently been found to bind miRNA that are complexed to AGO2 in the extracellular space. Both are co‑receptors with VEGF R2 (also called KDR or Flk‑1) for VEGF165 binding. Sema3A signaling can be blocked by VEGF165, which has higher affinity for Npn-1. Nrp-1 is preferentially expressed in developing or remodeling arteries. Nrp‑1 is also expressed on multiple cell types, including keratinocytes, Nrp-1+  T cells, Schwann cells, macrophages, vascular and lymphatic endothelium, breast duct epithelium, hepatic stellate cells, and neural crest cells that give rise to both sensory and autonomic ganglia.

Entrez Gene IDs
8829 (Human); 18186 (Mouse); 246331 (Rat); 100286859 (Porcine)
Alternate Names
BDCA4; BDCA-4; CD304 antigen; CD304; DKFZp686A03134; DKFZp781F1414; neuropilin 1; Neuropilin1; Neuropilin-1; NP1; NRP; NRP1; transmembrane receptor; Vascular endothelial cell growth factor 165 receptor; VEGF165R
