Mouse NKG2D/CD314 APC-conjugated Antibody

  • Species Reactivity
  • Specificity
    Detects mouse NKG2D in direct ELISAs and Western blots. Does not cross-react with recombinant human NKG2D.
  • Source
    Monoclonal Rat IgG2B Clone # 191004
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant mouse NKG2D
    Accession # O54709
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
  • Flow Cytometry
    10 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

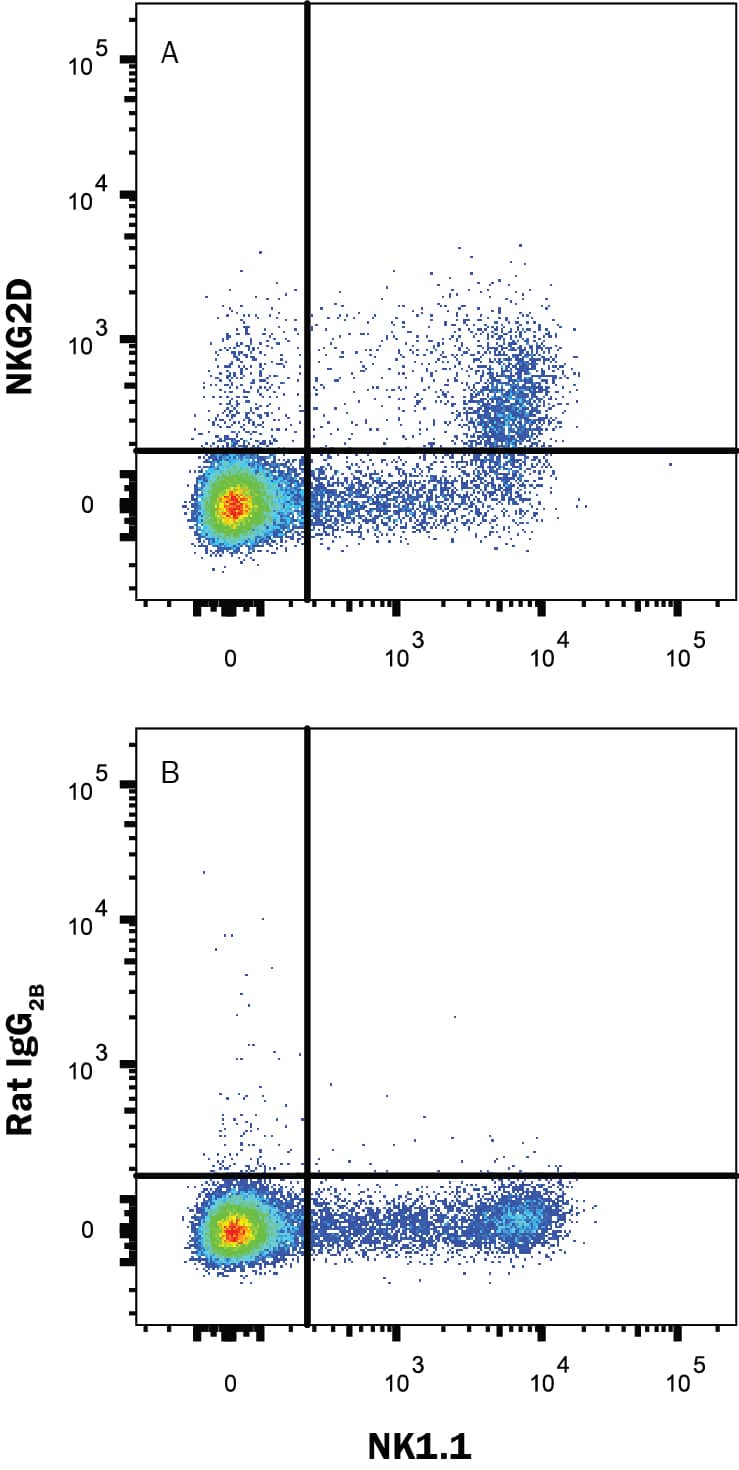

Detection of NKG2D/CD314 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Mouse Anti-Mouse CD161/NK1.1 PE‑conjugated Monoclonal Antibody (Catalog # FAB8319P) and either (A) Rat Anti-Mouse NKG2D/CD314 APC‑conjugated Monoclonal Antibody (Catalog # FAB1547A) or (B) Rat IgG2B Allophycocyanin Isotype Control (Catalog # IC013A). View our protocol for Staining Membrane-associated Proteins
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: NKG2D/CD314

NKG2D is a type II transmembrane protein with an extracellular C-type lectin-like domain. It occurs as a disulfide-linked homodimer that associates with the transmembrane DAP10 (DNAX-activator protein 10) adapter protein to deliver an activating signal. This protein shares approximately 25% amino acid sequence identity with a number of other type II lectin-like proteins that are encoded by genes within the natural killer complex on mouse chromosome 6. NKG2D is expressed on NK cells, where it functions as an activating receptor to trigger cytolytic activity and cytokine secretion, and on some T cell subsets, where it acts as a co‑stimulatory receptor complementing T cell receptor signaling. Several ligands have now been identified for mouse NKG2D including H60 and Rae 1 alpha, beta, gamma, δ, and epsilon. All of these ligands are cell-surface proteins distantly related to MHC class I. However, they do not bind peptide or associate with beta 2-microglobulin. Ligand expression is up-regulated in many transformed cell lines and also during conditions of stress such as heat shock or viral infection. In vivo, tumor models demonstrate that NKG2D functions in anti-tumor surveillance (1-5).

  • References:
    1. Bauer, S. et al. (1999) Science 285:727.
    2. Wu, J. et al. (1999) Science 285:730.
    3. Diefenbach, A. et al. (2001) Nature 413:165.
    4. Vivier, E. et al. (2002) Curr. Opin. Immunol. 14:306.
    5. NKG2D and its Ligands;
  • Long Name:
    Natural Killer G2D
  • Entrez Gene IDs:
    22914 (Human); 27007 (Mouse)
  • Alternate Names:
    CD314 antigen; CD314; D12S2489E; FLJ17759; FLJ75772; Killer cell lectin-like receptor subfamily K member 1; killer cell lectin-like receptor subfamily K, member 1; KLR; KLRK1; NK cell receptor D; NKG2-D type II integral membrane protein; NKG2-D; NKG2-D-activating NK receptor; NKG2DDNA segment on chromosome 12 (unique) 2489 expressed sequence
