Mouse Plexin B2 Alexa Fluor® 488-conjugated Antibody

Datasheet / CoA / SDS
Product Details
Supplemental Products
  • Species Reactivity
  • Specificity
    Detects mouse Plexin B2 in direct ELISAs. In direct ELISAs, no cross-reactivity with recombinant human Plexin B2 is observed.
  • Source
    Monoclonal Rat IgG2A Clone # 772417
  • Purification
    Protein A or G purified from hybridoma culture supernatant
  • Immunogen
    Chinese hamster ovary cell line CHO-derived recombinant mouse Plexin B2
    Accession # B2RXS4
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Alexa Fluor 488
Product Datasheets

Certificate of Analysis Lookup

To download a Certificate of Analysis, please enter a lot number in the search box below.

Note: Certificate of Analysis not available for kit components.

Certificate of Analysis Lookup

Certificate of Analysis Request Form

To download a Certificate of Analysis, please enter the catalog and lot numbers in the search box below.

Note: Certificate of Analysis not available for kit components.

  • Flow Cytometry
    5 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Example

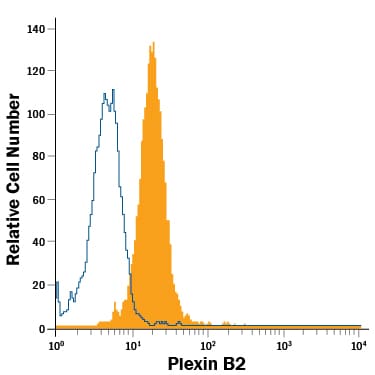

Detection of Plexin B2 in D3 Mouse Cell Line by Flow Cytometry. D3 mouse embryonic stem cell line was stained with Rat Anti-Mouse Plexin B2 Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # FAB6836G, filled histogram) or isotype control antibody (Catalog # IC006G, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: Plexin B2

Plexin B2 is a 240-250 kDa type I transmembrane (TM) glycoprotein that belongs to the Plexin family, Plexin B subfamily of semaphorin receptors (1, 2). The mouse Plexin B2 cDNA encodes 1842 amino acids (aa) that include a 19 aa signal sequence, a 1182 aa extracellular domain (ECD), a 21 aa TM domain, and a 620 aa cytoplasmic region. The ECD contains one semaphorin domain (aa 20‑468) and three IPT repeats (aa 806‑1096). The ECD may be cleaved into two subunits, a 170 kDa alpha ‑chain (aa 20‑1168) and an 80 kDa TM beta ‑chain, that remain noncovalently linked (1). Multiple splice variants may exist. Within aa 20‑1029 in the ECD, mouse Plexin B2 shares 82%, 93%, 80% and 79% aa identity with human, rat, canine and bovine Plexin B2, respectively. The B Plexins (B1, B2 and B3) share approximately 40% aa identity with each other. Plexin B2 mRNA is expressed in proliferating cerebellar granule cell progenitors, neuroepithelium, developing neurons, growth plate chondrocytes, tooth bud inner enamel epithelium, glomeruli and mesenchyme of the developing kidney, macrophages plus plasmacytoid dendritic cells, and in germinal center B lymphocytes when T cell help is present (3‑9). Plexin B2 is often co‑expressed with Plexin B1, and the two may form heterodimers (1, 4, 6). Genetic deletion of mouse Plexin B2 results in defects in proliferation and migration of cerebellar granule cells, abnormal development of the neural tube and disorganization of the embryonic brain; these defects are not seen when Plexin B1 is deleted (10‑12). In adults, Plexin B2 is expressed in specialized vascular endothelia, pancreatic islets of Langerhans, and adrenal glands (13). Plexin B2 serves as a receptor for type 4 semaphorins, especially Sema4C and Sema4G (8‑14). B Plexins, including Plexin B2, can bind the scatter factor receptors, Met and Ron, and activate them upon semaphorin engagement (1, 15).

  • References:
    1. Artigiani, S. et al. (2003) J. Biol. Chem. 278:10094.
    2. Malik, M.F. et al. (2014) Histol. Histopathol. 29:151.
    3. Friedel, R.H. et al. (2007) J. Neurosci. 27:3921.
    4. Worzfeld, T. et al. (2004) Eur. J. Neurosci. 19:2622.
    5. Zhang, M. et al. (2008) Bone 43:511.
    6. Perala, N.M. et al. (2005) Gene Expr. Patterns 5:355.
    7. Yu, D. et al. (2008) Immunol. Cell Biol. 86:3.
    8. Luque, M.C. et al. (2015) Mol. Immunol. 67:559.
    9. Holl, al. (2012) PLoS ONE 7:e43333.
    10. Deng, S. et al. (2007) J. Neurosci. 27:6333.
    11. Hirschberg, A. et al. (2010) Mol. Cell. Biol. 30:764.
    12. Maier, V. et al. (2011) Mol. Cell. Neurosci. 46:419.
    13. Zielonka, M. et al. (2010) Exp. Cell Res. 316:2477.
    14. Yukawa, K. et al. (2010) Int. J. Mol. Med. 25:225.
    15. Conrotto, P. et al. (2004) Oncogene 23:5131.
  • Entrez Gene IDs:
    23654 (Human); 140570 (Mouse); 315217 (Rat)
  • Alternate Names:
    MM1; MM1KIAA0315dJ402G11.3; Nbla00445; PLEXB2; Plexin B2; plexin-B2; PLXNB2
