Mouse/Rat PDGF-BB Quantikine ELISA Kit

Catalog # Availability Size / Price Qty

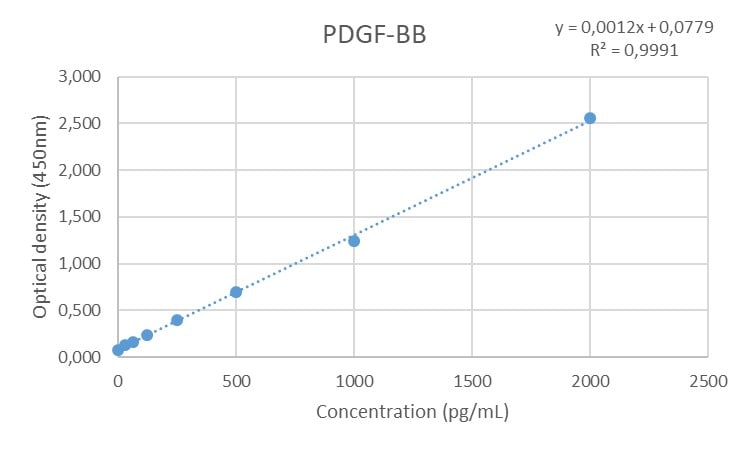

Mouse/Rat PDGF-BB ELISA Cell Culture Supernate Standard Curve
4 Images
Product Details
Citations (22)
Supplemental Products
Reviews (2)

Mouse/Rat PDGF-BB Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (10 uL), EDTA Plasma (25 uL), Heparin Plasma (25 uL)
19.3 pg/mL
Assay Range
31.2 - 2,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Natural and recombinant mouse and rat PDGF-BB.  This assay cross-reacts 10.2% with recombinant Rat PDGF-AB, 5.3% with recombinant Human PDGF-AB, 64.7% with recombinant Human PDGF-BB, 38.1% with natural Human PDGF and 65.2% with natural Porcine PDGF.
Cross-reactivity observed with 1 or more available related molecules.Cross-species reactivity observed with 1 or more species tested.
Interference observed with 1 or more available related molecules.

Product Summary

The Quantikine Mouse/Rat PDGF-BB Immunoassay is a 4.5 hour solid-phase ELISA designed to measure mouse/rat PDGF-BB in cell culture supernates, serum, and plasma. It contains E. coli-expressed recombinant rat PDGF-BB and antibodies raised against recombinant human PDGF-BB. This immunoassay has been shown to accurately quantitate the recombinant factor. Results obtained using natural mouse/rat PDGF-BB showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring mouse/rat PDGF-BB.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 22 24 24
Mean (pg/mL) 49.7 252 823 52.1 246 811
Standard Deviation 4.5 18.7 36.7 5.3 21.1 40.4
CV% 9.1 7.4 4.5 10.2 8.6 5

Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 22 22 23
Mean (pg/mL) 61.1 298 1019 69.5 305 1048
Standard Deviation 5.6 24.6 40.3 6.6 26.3 98.5
CV% 9.2 8.3 4 9.5 8.6 9.4


The recovery of PDGF-BB spiked to three levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Mouse Cell Culture Supernates (n=8) 100 89-118
Mouse Heparin Plasma (n=5) 96 85-113
Rat Cell Culture Supernates (n=8) 102 94-114
Rat EDTA Plasma (n=5) 102 86-111
Rat Heparin Plasma (n=5) 102 85-111
Rat Serum (n=5) 100 89-113

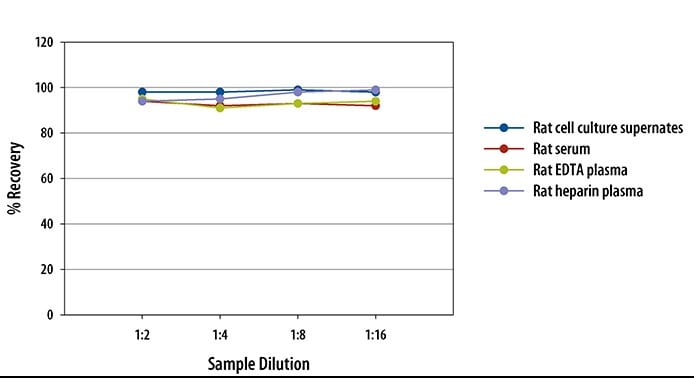

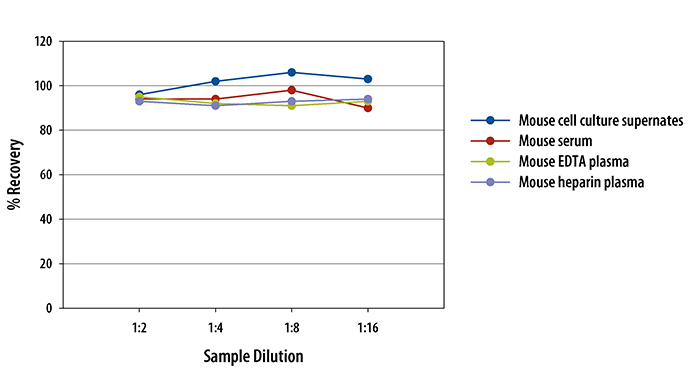

To assess the linearity of the assay, samples spiked with or containing PDGF-BB in each matrix were diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Mouse/Rat PDGF-BB ELISA Linearity
Mouse/Rat PDGF-BB ELISA Linearity

Scientific Data

Mouse/Rat PDGF-BB ELISA Cell Culture Supernate Standard Curve

Mouse/Rat PDGF-BB ELISA Serum/Plasma Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: PDGF-BB

The platelet-derived growth factor (PDGF) family of disulfide-linked dimeric proteins consists of four homodimeric proteins, PDGF-AA, PDGF-BB, PDGF-CC and PDGF-DD, and one heterodimeric protein, PDGF-AB. Members of this protein family act mainly on connective tissue. The dimeric isoforms of PDGF are expressed by different cell types and at different times during embryonic development. All PDGF isoforms are synthesized as inactive precursors and are processed to active forms that contain a PDGF/VEGF cysteine knot domain. Only PDGF-C and PDGF-D, also named spinal cord-derived growth factors SCDGF and SCDGF-B, also contain an N-terminal CUB domain. Mature PDGF dimers bind and induce the homo- or hetero-dimerization of two receptor tyrosine kinases (PDGF R alpha and R beta).

Long Name:
Platelet-derived Growth Factor BB
Entrez Gene IDs:
5155 (Human); 24628 (Rat)
Alternate Names:
c-sis;IBGC5;PDGF2;PDGF-2;PDGFB;Platelet-derived growth factor subunit B;SIS;SSV; PDGFBB; PDGF-BB
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 50 µL Assay Diluent
  4.   Add 50 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, Control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 4 times for a total of 5 washes.

  8. 100 µL Conjugate
  9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 5 times.

  11. 100 µL Substrate Solution
  12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 100 µL Stop Solution
  14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
