VEGF R2, also known as KDR, Flk-1, and CD309, is a 210-220 kDa type I transmembrane glycoprotein member of the 7-Ig/Class V subfamily that belongs to the tyrosine protein kinase family of molecules (1, 2). It is principally expressed on endothelial cells (EC), but also appears on neurons, mast cells, immature dendritic cells and monocytes (3-6). VEGF R2 serves as the major proangiogenic switch that regulates blood vessel development and repair (1, 2). It is known to bind VEGF-A, -C, and -D. On the cell surface, VEGF R2 either homodimerizes or heterodimerizes with VEGF R3 (1). As a homodimer, it appears to interact with Neuropilin-1 (7). It also interacts with Integrin beta 3 subunit, either through its extracellular domain or cytoplasmic tail (8). This interaction may be necessary for EC activation. Notably, VEGF R2 can also be activated in the absence of a VEGF ligand when under torsion stress and in a complex with CD31 and VE-Cadherin (9). Over amino acids 20-762, mouse VEGF R2 shares 93% and 80% amino acid sequence identity with rat and human VEGF R2, respectively.
Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
R&D Systems | Catalog # FAB4432A
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Ala20-Glu762
Accession # P35918
Specificity
Clonality
Host
Isotype
Scientific Data Images for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody

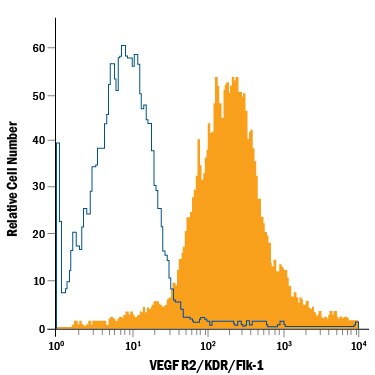

Detection of VEGF R2/KDR/Flk‑1 in bEnd.3 Mouse Cell Line by Flow Cytometry.
bEnd.3 mouse endothelioma cell line was stained with Rat Anti-Mouse VEGF R2/KDR/Flk-1 APC-conjugated Monoclonal Antibody (Catalog # FAB4432A, filled histogram) or isotype control antibody (Catalog # IC005A, open histogram). View our protocol for Staining Membrane-associated Proteins.Applications for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
Flow Cytometry
Sample: bEnd.3 mouse endothelioma cell line
Spectra Viewer
Plan Your Experiments
Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.
Spectra ViewerFlow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, 2 to 8 °C as supplied.
Background: VEGFR2/KDR/Flk-1
References
- Smith, G.A. et al. (2015) Biosci. Rep. Aug 18 [ePub ahead of print].
- Shibuya, M. (2013) J. Biochem. 153:13.
- Le, X-F. et al. (2008) Cell Cycle 7:3747.
- Okabe, K. et al. (2014) Cell 159:584.
- Detoraki, A. et al. (2009) J. Allergy Clin. Immunol. 123:1142.
- Dong, Z. et al. (2009) Curr. Pharm. Des. 15:365.
- Plein, A. et al. (2014) Microcirculation 21:315.
- Somanath, P.R. et al. (2009) Angiogenesis 12:177.
- DuToit, A. (2015) Nat. Rev. Mol. Cell Biol. 16:268.
Long Name
Alternate Names
Gene Symbol
UniProt
Additional VEGFR2/KDR/Flk-1 Products
Product Documents for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
For research use only
Citations for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
Customer Reviews for Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody
There are currently no reviews for this product. Be the first to review Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody and earn rewards!
Have you used Mouse VEGFR2/KDR/Flk-1 APC‑conjugated Antibody?
Submit a review and receive an Amazon gift card!
$25/€18/£15/$25CAN/¥2500 Yen for a review with an image
$10/€7/£6/$10CAN/¥1110 Yen for a review without an image
Submit a review
