NG2/MCSP Antibody (JM10-13)

Novus Biologicals | Catalog # NBP2-66979

Recombinant Monoclonal Antibody
Novus Biologicals
Loading...

Key Product Details

Validated by

Biological Validation

Species Reactivity

Human, Mouse, Rat

Applications

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry

Label

Unconjugated

Antibody Source

Recombinant Monoclonal Rabbit IgG Clone # JM10-13 expressed in HEK293
Loading...

Product Specifications

Immunogen

Synthetic peptide within Human NG2/MCSP aa 2,271-2,314 / 2,322. (SwissProt: Q6UVK1 Human; SwissProt: CSPG4 Mouse; SwissProt: Q00657 Rat)

Localization

Cell membrane, Apical cell membrane, Cell projection, Cell surface.

Clonality

Monoclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for NG2/MCSP Antibody (JM10-13)

Western Blot: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Western Blot: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Western Blot: NG2/MCSP Antibody (JM10-13) [NBP2-66979] - Analysis of NG2 on SiHa cell lysates. Proteins were transferred to a PVDF membrane and blocked with 5% BSA in PBS for 1 hour at room temperature. The primary antibody ( 1/500) was used in 5% BSA at room temperature for 2 hours. Goat Anti-Rabbit IgG - HRP Secondary Antibody at 1:5,000 dilution was used for 1 hour at room temperature.
Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979] - Analysis of paraffin-embedded human malignant melanoma tissue using anti-NG2/MCSP antibody. The section was pre-treated using heat mediated antigen retrieval with Tris-EDTA buffer (pH 9.0) for 20 minutes.The tissues were blocked in 1% BSA for 30 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (1/400) for 30 minutes at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Flow Cytometry: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Flow Cytometry: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

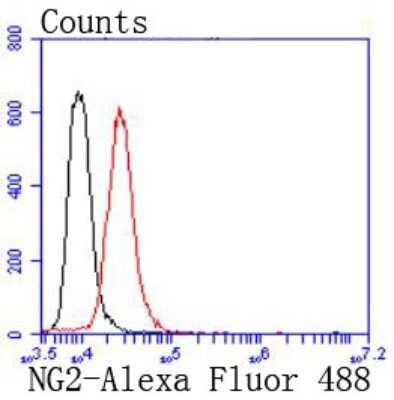

Flow Cytometry: NG2/MCSP Antibody (JM10-13) [NBP2-66979] - Analysis of SHG-44 cells with NG2 antibody at 1/50 dilution (red) compared with an unlabelled control (cells without incubation with primary antibody; black). Alexa Fluor 488-conjugated goat anti rabbit IgG was used as the secondary antibody.
Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979] - Analysis of paraffin-embedded mouse brain tissue using anti-NG2 antibody. Counter stained with hematoxylin.
Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979]

Immunohistochemistry-Paraffin: NG2/MCSP Antibody (JM10-13) [NBP2-66979] - Analysis of paraffin-embedded rat brain tissue using anti-NG2 antibody. Counter stained with hematoxylin.

Applications for NG2/MCSP Antibody (JM10-13)

Application
Recommended Usage

Flow Cytometry

1:50-1:100

Immunohistochemistry-Paraffin

1:50-1:400

Western Blot

1:500-1:1000

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now

Formulation, Preparation, and Storage

Purification

Protein A purified

Formulation

TBS (pH7.4), 0.05% BSA, 40% Glycerol

Preservative

0.05% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: NG2/MCSP

Proteoglycans (PGs) are a family of proteins composed of different polypeptide chains containing glycosaminoglycan (GAG) modifications. They vary in their cellular locations and have diverse structure and functions. NG2 is a proteoglycan found in the nervous system, comprising a large integral membrane PG with a core protein of 300 kDa and at least one covalently attached chondroitin sulfate (CS) GAG chain. In the CNS this protein is expressed mainly on the surfaces of developing and adult oligodendrocyte precursor cells, but is also associated with developing chondrocytes, cardiomyocytes, pericytes and several human tumours.

Long Name

Chondroitin Sulfate Proteoglycan NG2/Melanoma Associated Chondroitin Sulfate Proteoglycan

Alternate Names

AN2, CSPG4, HMW-MAA, MCSP, MCSPG, MEL-CSPG

Gene Symbol

CSPG4
