PCNA Antibody (A6-G11-R)
Novus Biologicals | Catalog # NBP3-32725
Recombinant Monoclonal Antibody
Loading...
Key Product Details
Species Reactivity
Human, Mouse, Rat
Applications
Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence, Immunoprecipitation
Label
Unconjugated
Antibody Source
Recombinant Monoclonal Mouse IgG1 Clone # A6-G11-R expressed in HEK293
Loading...
Product Specifications
Immunogen
Recombinant protein within human PCNA aa 1-261. (Uniprot: P12004)
Localization
Nucleus
Clonality
Monoclonal
Host
Mouse
Isotype
IgG1
Theoretical MW
29 kDa.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Disclaimer note: The observed molecular weight of the protein may vary from the listed predicted molecular weight due to post translational modifications, post translation cleavages, relative charges, and other experimental factors.
Scientific Data Images for PCNA Antibody (A6-G11-R)
Immunoprecipitation: PCNA Antibody (A6-G11-R) [NBP3-32725]
Immunoprecipitation: PCNA Antibody (A6-G11-R) [NBP3-32725] - PCNA was immunoprecipitated from 0.2 mg HeLa cell lysate with NBP3-32725 at 2 ug/25 ul agarose. Western blot was performed from the immunoprecipitate using NBP3-32725 at 1/10,000 dilution. Anti-Mouse IgG for IP Nano-secondary antibody at 1/5,000 dilution was used for 1 hour at room temperature.Lane 1: HeLa cell lysate (input)
Lane 2: NBP3-32725 IP in HeLa cell lysate
Lane 3: Mouse IgG instead of NBP3-32725 in HeLa cell lysate
Blocking/Dilution buffer: 5% NFDM/TBST
Exposure time: 24 seconds; ECL
Immunohistochemistry: PCNA Antibody (A6-G11-R) [NBP3-32725]
Immunohistochemistry: PCNA Antibody (A6-G11-R) [NBP3-32725] - Immunohistochemical analysis of paraffin-embedded human lymph node tissue with Mouse anti-PCNA antibody (NBP3-32725) at 1/2,000 dilution.The section was pre-treated using heat mediated antigen retrieval with sodium citrate buffer (pH 6.0) for 2 minutes. The tissues were blocked in 1% BSA for 20 minutes at room temperature, washed with ddH2O and PBS, and then probed with the primary antibody (NBP3-32725) at 1/2,000 dilution for 1 hour at room temperature. The detection was performed using an HRP conjugated compact polymer system. DAB was used as the chromogen. Tissues were counterstained with hematoxylin and mounted with DPX.
Immunocytochemistry/ Immunofluorescence: PCNA Antibody (A6-G11-R) [NBP3-32725]
Immunocytochemistry/ Immunofluorescence: PCNA Antibody (A6-G11-R) [NBP3-32725] - Immunocytochemistry analysis of HeLa cells labeling PCNA with Mouse anti-PCNA antibody (NBP3-32725) at 1/100 dilution.Cells were fixed in 100% precooled methanol for 5 minutes at room temperature, then blocked with 1% BSA in 10% negative goat serum for 1 hour at room temperature. Cells were then incubated with Mouse anti-PCNA antibody (NBP3-32725) at 1/100 dilution in 1% BSA in PBST overnight at 4 ℃. Goat Anti-Mouse IgG H&L (iFluor™ 488) was used as the secondary antibody at 1/1,000 dilution. PBS instead of the primary antibody was used as the secondary antibody only control. Nuclear DNA was labelled in blue with DAPI.
beta Tubulin (red) was stained at 1/100 dilution overnight at +4℃. Goat Anti-Rabbit IgG H&L (iFluor™ 594) were used as the secondary antibody at 1/1,000 dilution.
Western Blot: PCNA Antibody (A6-G11-R) [NBP3-32725]

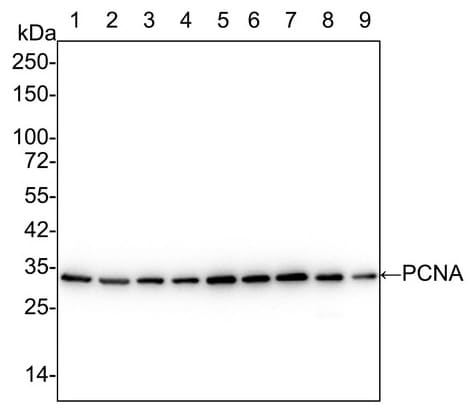

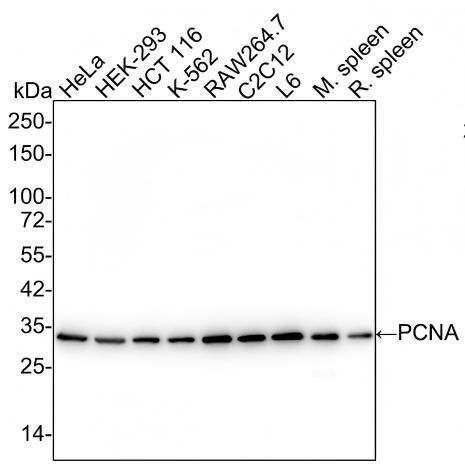

Western Blot: PCNA Antibody (A6-G11-R) [NBP3-32725] - Western blot analysis of PCNA on different lysates with Mouse anti-PCNA antibody (NBP3-32725) at 1/20,000 dilution.Lane 1: HeLa cell lysate (15 µg/Lane)
Lane 2: HEK-293 cell lysate (15 µg/Lane)
Lane 3: HCT 116 cell lysate (15 µg/Lane)
Lane 4: K-562 cell lysate (15 µg/Lane)
Lane 5: RAW264.7 cell lysate (15 µg/Lane)
Lane 6: C2C12 cell lysate (15 µg/Lane)
Lane 7: L6 cell lysate (15 µg/Lane)
Lane 8: Mouse spleen tissue lysate (15 µg/Lane)
Lane 9: Rat spleen tissue lysate (15 µg/Lane)
Predicted band size: 29 kDa
Observed band size: 34 kDa
Exposure time: 11 seconds; ECL;
4-20% SDS-PAGE gel.
Proteins were transferred to a PVDF membrane and blocked with 5% NFDM/TBST for 1 hour at room temperature. The primary antibody at 1/20,000 dilution was used in 5% NFDM/TBST at room temperature for 2 hours. Goat Anti-Mouse IgG - HRP Secondary Antibody at 1/50,000 dilution was used for 1 hour at room temperature.
Applications for PCNA Antibody (A6-G11-R)
Application
Recommended Usage
Immunocytochemistry/ Immunofluorescence
1:100
Immunohistochemistry-Paraffin
1:2000
Immunoprecipitation
1-2ug/sample
Western Blot
1:1000-1:5000
Formulation, Preparation, and Storage
Purification
Protein A purified
Formulation
PBS (pH7.4), 0.1% BSA and 40% Glycerol
Preservative
0.05% Sodium Azide
Concentration
1 mg/ml
Shipping
The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.
Background: PCNA
Long Name
Proliferating Cell Nuclear Antigen
Alternate Names
cyclin, DNA polymerase delta auxiliary protein, MGC8367, proliferating cell nuclear antigen
Gene Symbol
PCNA
Additional PCNA Products
Product Documents for PCNA Antibody (A6-G11-R)
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Product Specific Notices for PCNA Antibody (A6-G11-R)
This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
