Recombinant Human CD19 Protein, Atto 647N Conjugate

Detection of CD19 construct on human CART cells

Human PBMC CD4+ and CD8+ T cells were either (A) transduced or (B) not transduced (negative control) with a Human CD19 CAR and then cultured for 11 days. Cells were washed twice with 2mL 1x PBS then stained with a viability dye for 15-30 min at room temp in the dark. Human block (1-001-1) was added during the viability stain to block Fc receptors. Cells were washed twice with Flow Cytometry Staining Buffer (FC001) then stained with Human CD4 PE-Cy7-conjugated Antibody and rhCD19 Atto 647N-conjugated protein (ATM9269) for 25 min at room temp in the dark. Staining was performed using our staining membrane proteins protocol.

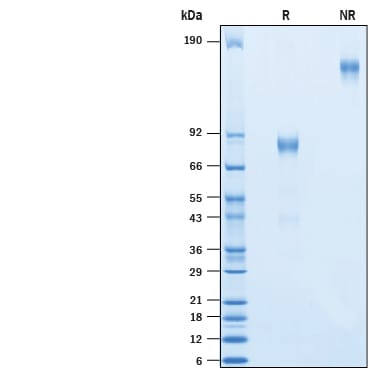

Recombinant Human CD19 Protein, Atto 647N Conjugate SDS-PAGE.

2 μg/lane of Recombinant Human CD19 Fc Chimera Atto 647N (ATM9269) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 77-92 kDa and 154-184 kDa, respectively.
