Recombinant Human CD200 Fc Chimera Avi-tag Protein, CF

Catalog # Availability Size / Price Qty
AVI2724-050
Recombinant Human CD200 Fc Chimera Avi-tag Protein, CF Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human CD200 Fc Chimera Avi-tag Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human CD200R1 Fc Chimera (Catalog # 3414-CD) is immobilized at 2 μg/mL (100 μL/well), the concentration of Recombinant Human CD200 Fc Chimera Avi-tag (Catalog # AVI2724) that produces 50% of the optimal binding response is 2-10 ng/mL.
Source
Human embryonic kidney cell, HEK293-derived human CD200 protein
Human CD200
(Gln31-Gly232)
Accession # P41217
IEGRMDPHuman IgG1
(Pro100-Lys330)
Avi-tag
N-terminusC-terminus
Accession #
N-terminal Sequence
Analysis
No results obtained: Gln31 inferred from enzymatic pyroglutamate treatment revealing Val32
Structure / Form
Disulfide-linked homodimer, Biotinylated via Avi-tag
Predicted Molecular Mass
51 kDa
SDS-PAGE
60-80 kDa, under reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI2724

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Binding Activity Binding Activity View Larger

When Recombinant Human CD200R1 Fc Chimera (Catalog # 3414-CD) is immobilized at 2 μg/mL (100 μL/well), Biotinylated Recombinant Human CD200 Fc Chimera Avi-tag (Catalog # AVI2724) binds with an ED50 of 2‑10 ng/mL.

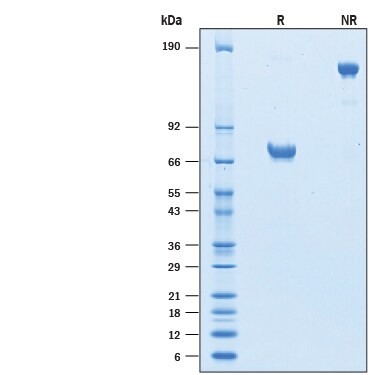

SDS-PAGE SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human CD200 Fc Chimera Avi-tag Protein (Catalog # AVI2724)was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 60-80 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: CD200

CD200, also known as OX-2, is a 45 kDa transmembrane immunoregulatory protein that belongs to the immunoglobulin superfamily (1, 2). The human CD200 cDNA encodes a 278 amino acid (aa) precursor that includes a 30 aa signal sequence, a 202 aa extracellular domain (ECD), a 27 aa transmembrane segment, and a 19 aa cytoplasmic domain. The ECD is composed of one Ig-like V-type domain and one Ig-like C2-type domain (3). A splice variant of CD200 has been described and has a truncated cytoplasmic tail. Within the ECD, human CD200 shares 76% aa sequence identity with mouse and rat CD200. CD200 is widely but not ubiquitously expressed (4). Its receptor (CD200R) is restricted primarily to mast cells, basophils, macrophages, and dendritic cells, which suggests myeloid cell regulation as the major function of CD200 (5-7). CD200 knockout mice are characterized by increased macrophage number and activation and are predisposed to autoimmune disorders (8). CD200 and CD200R associate via their respective N-terminal Ig-like domains (9). In myeloid cells, CD200R initiates inhibitory signals following receptor-ligand contact (6, 7, 10). In T cells, however, CD200 functions as a costimulatory molecule independent of the CD28 pathway (11). Several additional CD200R-like molecules have been identified in human and mouse, but their capacity to interact with CD200 is controversial (12, 13). Several viruses encode CD200 homologs which are expressed on infected cells during the lytic phase (14, 15). Like CD200 itself, viral CD200 homologs also suppress myeloid cell activity, enabling increased viral propagation (5, 14-16).

References
  1. Gorczynski, R.M. (2005) Curr. Opin. Invest. Drugs 6:483.
  2. Barclay, A.N. et al. (2002) Trends Immunol. 23:285.
  3. McCaughan, G.W. et al. (1987) Immunogenetics 25:329.
  4. Wright, G.J. et al. (2001) Immunology 102:173.
  5. Shiratori, I. et al. (2005) J. Immunol. 175:4441.
  6. Cherwinski, H.M. et al. (2005) J. Immunol. 174:1348.
  7. Fallarino, F. et al. (2004) J. Immunol. 173:3748.
  8. Hoek, R.M. et al. (2000) Science 290:1768.
  9. Hatherley, D. and A.N. Barclay (2004) Eur. J. Immunol. 34:1688.
  10. Jenmalm, M.C. et al. (2006) J. Immunol. 176:191.
  11. Borriello, F. et al. (1997) J. Immunol. 158:4548.
  12. Gorczynski, R. et al. (2004) J. Immunol. 172:7744.
  13. Hatherley, D. et al. (2005) J. Immunol. 175:2469.
  14. Foster-Cuevas, M. et al. (2004) J. Virol. 78:7667.
  15. Cameron, C.M. et al. (2005) J. Virol. 79:6052.
  16. Langlais, C.L. et al. (2006) J. Virol. 80:3098.
Entrez Gene IDs
4345 (Human); 17470 (Mouse); 102146004 (Cynomolgus Monkey)
Alternate Names
antigen identified by monoclonal MRC OX-2; CD200 antigenMOX1; CD200 molecule; CD200; MOX1; MOX2; MOX2MRC; MRC OX-2 antigen; MRC; OX-2 membrane glycoprotein; OX-2
