Fibroblast growth factors (FGFs) comprise a family of at least eighteen structurally related proteins that are involved in a multitude of physiological and pathological cellular processes, including cell growth, differentiation, angiogenesis, wound healing and tumorgenesis. The biological activities of the FGFs are mediated by a family of type I transmembrane tyrosine kinases which undergo dimerization and autophosphorylation after ligand binding. Four distinct genes encoding closely related FGF receptors, FGF R1-4, are known. All four genes for FGF Rs encode proteins with an N-terminal signal peptide, three immunoglobulin (Ig)-like domains, an acid‑box region containing a run of acidic residues between the IgI and IgII domains, a transmembrane domain and the split tyrosine-kinase domain. Multiple forms of FGF R1‑3 are generated by alternative splicing of the mRNAs. A frequent splicing event involving FGF R1 and 2 results in receptors containing all three Ig domains, referred to as the alpha isoform, or only IgII and IgIII, referred to as the beta isoform. Only the alpha isoform has been identified for FGF R3 and FGF R4. Additional splicing events for FGF R1-3, involving the C-terminal half of the IgIII domain encoded by two mutually exclusive alternative exons, generate FGF receptors with alternative IgIII domains (IIIb and IIIc). A IIIa isoform which is a secreted FGF binding protein containing only the N-terminal half of the IgIII domain plus some intron sequences has also been reported for FGF R1. Mutations in FGF R1-3 have been found in patients with birth defects involving craniosynostosis. The complex patterns of expression of these receptors as well as the specificity of their interactions with the various FGF ligand family members are under investigation. Our Avi-tag Biotinylated human FGFR3 Fc Chimera features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.
Recombinant Human FGFR3 (IIIc) Fc Avi-tag Protein, CF
R&D Systems | Catalog # AVI766
Biotinylated Fc Chimera
Loading...
Key Product Details
- R&D Systems HEK293-derived Recombinant Human FGFR3 (IIIc) Fc Avi-tag Protein (AVI766)
- Quality control testing to verify active proteins with lot specific assays by in-house scientists
- All R&D Systems proteins are covered with a 100% guarantee
Source
HEK293
Accession Number
Structure / Form
Disulfide-linked homodimer
Biotinylated via Avi-tag
Biotinylated via Avi-tag
Conjugate
Biotin
Applications
Bioactivity
Loading...
Learn more about Avi-tag Biotinylated Proteins
Product Specifications
Source
Human embryonic kidney cell, HEK293-derived human FGFR3 protein
| Human FGFR3 (IIIc) (Glu23-Gly375) Accession # P22607.1 |
IEGRMD | Human IgG1 (Pro100-Lys330) |
Avi-tag |
| N-terminus | C-terminus | ||
Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
N-terminal Sequence Analysis
Glu23
Predicted Molecular Mass
67 kDa
SDS-PAGE
94-104 kDa, under reducing conditions.
Activity
Measured by its binding ability in a functional ELISA.
Biotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag (Catalog # AVI766) binds to Recombinant Human FGF acidic/FGF1 (aa16-155) Protein (Catalog # 232-FA) with a ED50 of 0.250-2.50 µg/mL
Biotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag (Catalog # AVI766) binds to Recombinant Human FGF acidic/FGF1 (aa16-155) Protein (Catalog # 232-FA) with a ED50 of 0.250-2.50 µg/mL
Scientific Data Images for Recombinant Human FGFR3 (IIIc) Fc Avi-tag Protein, CF
Biotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag Protein Binding Activity.
Measured by its binding ability in a functional ELISA. Biotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag Protein (Catalog # AVI766) binds to Recombinant Human FGF acidic/FGF1 (aa 16-155) Protein (232-FA) with a ED50 of 0.250-2.50 µg/mLBiotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag Protein SDS-PAGE.

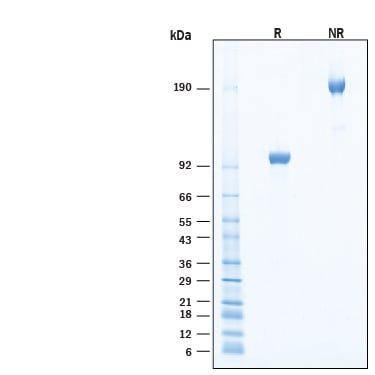

2 μg/lane of Biotinylated Recombinant Human FGFR3 Fc Chimera Avi-tag Protein (Catalog # AVI766) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 94-104 kDa and 190-210 kDa, respectively.Formulation, Preparation, and Storage
AVI766
| Formulation | Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. |
| Reconstitution | Reconstitute at 500 μg/mL in PBS. |
| Shipping | The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. |
| Stability & Storage | Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
|
Calculators
Background: FGFR3
References
- Galzie, Z. et al. (1997) Biochem. Cell Biol. 75:669.
- Burke, D. et al. (1998) Trends Biochem. Sci. 23:59.
Long Name
Fibroblast Growth Factor Receptor 3
Alternate Names
CD333, CEK, FGF R3, JTK4
Gene Symbol
FGFR3
UniProt
