Recombinant Human IL-18 R beta/IL-1 R7 Fc Avi Protein, CF

R&D Systems | Catalog # AVI118

Biotinylated
R&D Systems
Loading...

Key Product Details

  • R&D Systems CHO-derived Recombinant Human IL-18 R beta/IL-1 R7 Fc Avi Protein (AVI118)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

CHO

Accession Number

Structure / Form

Disulfide-linked homodimer
Biotinylated via Avi-tag

Conjugate

Biotin

Applications

Bioactivity
Loading...

Product Specifications

Source

Chinese Hamster Ovary cell line, CHO-derived human IL-18 R beta/IL-1 R7 protein
Human IL-18 R beta /IL-1 R7
(Phe20-Arg356)
Accession # O95256.1
DIEGRMD Human IgG1
(Pro100-Lys330)
Avi-tag
N-terminus C-terminus

Purity

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.

Endotoxin Level

<0.10 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Phe20

Predicted Molecular Mass

65 kDa (monomer)

SDS-PAGE

87-97 kDa, under reducing conditions.

Activity

Measured by its binding ability in a functional ELISA.
When Recombinant Human IL‑18 R alpha /IL‑1 R5 Fc Chimera (Catalog # 816-LR) is coated at 1.00 μg/mL (100 μL/well), in the presence of 50.0 ng/mL of Recombinant Human IL-18 (Catalog # 9124-IL), Biotinylated Recombinant Human IL‑18 R beta /IL‑1 R7 Fc Chimera Avi-tag binds with an ED50 of 10.0-100 ng/mL.

The biotin to protein ratio is greater than 0.7 as determined by the HABA assay.

Scientific Data Images for Recombinant Human IL-18 R beta/IL-1 R7 Fc Avi Protein, CF

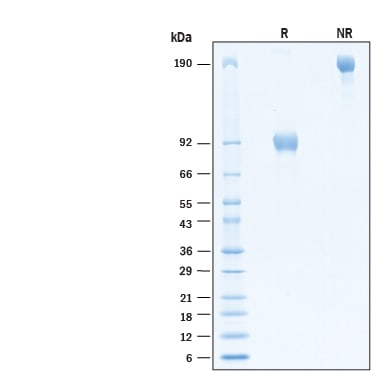

Biotinylated Recombinant Human IL‑18 R beta /IL‑1 R7 Fc Chimera Avi-tag Protein SDS-PAGE.

2 μg/lane of Biotinylated Recombinant Human IL‑18 R beta /IL‑1 R7 Fc Chimera Avi-tag Protein (Catalog # AVI118) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 87-97 kDa and 175-195 kDa, respectively.

Formulation, Preparation, and Storage

AVI118
Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 500 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: IL-18 R beta/IL-1 R7

IL-18, originally described as an interferon-gamma inducing factor (IGIF), is a member of the IL-1 family of cytokines that has multiple immunoregulatory functions. It has potent IFN-gamma inducing activities and plays a key role in the activation of T helper type 1 (Th1) responses. The functional IL-18 receptor complex consists of two components, the IL-18 R alpha (IL-1 R5) and IL-18 R beta (also termed IL-1 R7 and AcPL) subunits. Both subunits are members of the IL-1 receptor superfamily. Although IL-18 R alpha by itself binds IL-18 with low-affinity and IL-18 R beta does not bind IL-18 in vitro, co-expression of IL-18 R alpha and IL-18 R beta is required for high-affinity binding and IL-18 responsiveness. Human IL-18 R beta cDNA encodes a 599 amino acid (aa) residue precursor type I membrane protein with a 14 aa signal peptide, a 342 aa extracellular region containing three immunoglobulin-like domains, a single transmembrane domain and a 222 aa cytoplasmic domain. Human and mouse IL-18 R beta share 65% aa sequence identity. The expression of IL-18 R beta parallels that of IL-18 R alpha and is detected in numerous tissues including lung, spleen, leukocytes and colon. Our Avi-tag Biotinylated IL-18 R beta /IL-1R7 Fc Chimera features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

References

  1. Born, T.L. et al. (1998) J. Biol. Chem. 273:29445.
  2. Okamura, H. et al. (2000) in Cytokine Reference, Vol. 2:1605, Academic Press.

Long Name

Interleukin 18 Receptor beta

Alternate Names

AcPL, CD218b, IL-1 R7, IL-18Rb, IL18R beta, IL18RAP

Entrez Gene IDs

8807 (Human); 16174 (Mouse)

Gene Symbol

IL18RAP

UniProt
