Recombinant Human TRANCE/RANK L His Avi-tag Protein, CF

Catalog # Availability Size / Price Qty
Biotinylated Recombinant Human TRANCE/RANK L His-tag Avi-tag Protein Binding Activity.
2 Images
Product Details
Citations (1)
Supplemental Products

Recombinant Human TRANCE/RANK L His Avi-tag Protein, CF Summary

Product Specifications

>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Measured by its binding ability in a functional ELISA. When Recombinant Human RANK/TNFRSF11A Fc Chimera Protein (Catalog # 683-RK) is coated at 0.5 μg/mL (100 μL/well), the concentration of Biotinylated Recombinant Human TRANCE/TNFSF11/RANK L His-tag Avi-tag that produces 50% optimal binding response is 3.00‑15.0 ng/mL
Chinese Hamster Ovary cell line, CHO-derived human TRANCE/TNFSF11/RANK L protein
Accession # O14788.1
Accession #
N-terminal Sequence

Gly of Avi-tag

Structure / Form
Biotinylated via Avi-tag
Predicted Molecular Mass
24 kDa
26-39 kDa under reducing conditions.

Product Datasheets

You must select a language.



Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.


Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 100 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Scientific Data

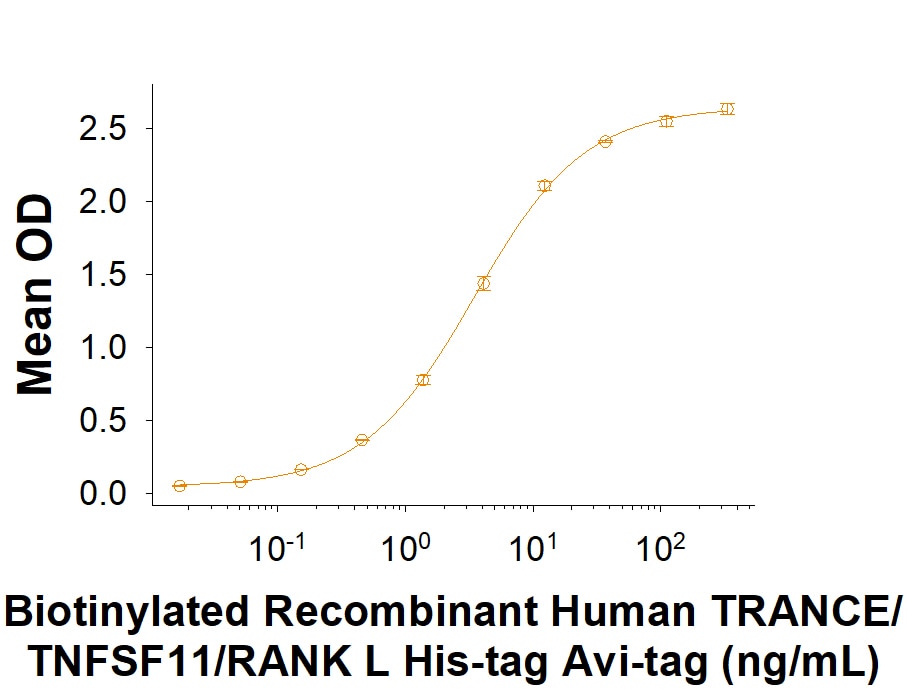

Binding Activity View Larger

When Recombinant Human RANK/TNFRSF11A Fc Chimera Protein (683-RK) is coated at 0.5 μg/mL (100 μL/well), the concentration of Biotinylated Recombinant Human TRANCE/TNFSF11/RANK L His-tag Avi-tag (Catalog # AVI390) that produces 50% optimal binding response is 3.00‑15.0 ng/mL.

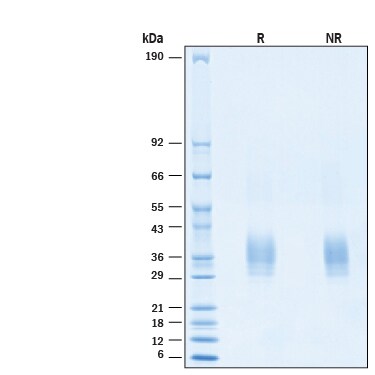

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human TRANCE/TNFSF11/RANK L His-tag Avi-tag Protein (Catalog # AVI390) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 26-39 kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.



RANK L (receptor activator of NF-kappa B ligand), also called TRANCE (TNF-related activation-induced cytokines), OPGL (osteoprotegerin ligand), or ODF (osteoclast differentiation factor), is a 39‑45 kDa type II transmembrane (TM) protein in the tumor necrosis factor family, designated TNFSF11 (1‑5). RANK L, produced by osteoblasts and bone marrow stromal cells, is required for differentiation of osteoclasts and stimulates bone resorption (4, 6). It is also produced by activated T cells and augments dendritic cell stimulation; RANK L-/- mice lack lymph nodes and have impaired thymocyte development (1‑3, 6). The human RANK L cDNA encodes 317 amino acids (aa), including a 47 aa cytoplasmic domain, a 21 aa TM region, and a 249 aa extracellular domain (ECD) with two potential N‑linked glycosylation sites (note: Arg85‑Asp245 of Accession # AAC51762 is identical to Arg157‑Asp317 of SwissProt # O14788. This aa range contains the ECD trimerization and receptor‑binding motifs, but not ECD proteolytic cleavage sites). Within the ECD, human RANK L shares 89%, 89%, 93% and 95% aa identity with mouse, rat, bovine and porcine RANK L, respectively. Mouse RANK L can stimulate human osteoclast differentiation (4). Like most TNF family members, RANK L can form trimers (1). Soluble 31, 25 and 24 kDa forms of RANK L can be created by usage of alternate start sites at aa 74 or 146, or proteolytic cleavage by osteoblast- or stromal cell‑derived ADAM10 (after aa 139) or MMP14 (aa 146), or bone metastatic prostate tumor-derived MT1-MMP (aa 146) (5, 7, 8). Both TM and soluble extracellular RANK L act by engaging RANK receptors and are antagonized by the decoy receptor, OPG (osteoprotegrin) (2, 5). In resting cells, the majority of RANK L is stored in secretory lysosomes (9). In mammary epithelia, RANK L is upregulated by pregnancy hormones and is essential for the formation of a lactating mammary gland (10). In the brain, astrocyte RANK L mediates body temperature regulation (11). Pathologically, RANK L is thought to mediate post-menopausal osteoporosis, vascular calcification, progestin-induced breast cancer, cancer-induced bone disease, and osteopetrosis (in RANK L deficiencies) (12‑16). Our Avi-tag Biotinylated human TRANCE/RANK L features biotinylation at a single site contained within the Avi-tag, a unique 15 amino acid peptide. Protein orientation will be uniform when bound to streptavidin-coated surface due to the precise control of biotinylation and the rest of the protein is unchanged so there is no interference in the protein's bioactivity.

  1. Leibbrandt, A. and J.M. Penninger (2008) Ann. N.Y. Acad. Sci. 1143:123.
  2. Wong, B.R. et al. (1997) J. Biol. Chem. 272:25190.
  3. Anderson, D.M. et al. (1997) Nature 390:175.
  4. Lacey, D.L. et al. (1998) Cell 93:165.
  5. Hikita, A. et al. (2006) J. Biol. Chem. 281:36846.
  6. Kong, Y-Y. et al. (1999) Nature 397:315.
  7. Accession # NP_143026 and EAX08679.
  8. Sabbota, A.L. et al. (2010) Cancer Res. 70:5558.
  9. Aoki, S. et al. (2010) J. Bone Miner. Res. 25:1907.
  10. Fata, J.E. et al. (2000) Cell 103:41.
  11. Hanada, R. et al. (2009) Nature 426:505.
  12. Osako, M.K. et al. (2010) Circ. Res. 107:466.
  13. Schramek, D. et al. (2010) Nature 468:98.
  14. Gonzalez-Suarez, E. et al. (2010) Nature 468:103.
  15. Dougall, W.C. and M. Chaisson (2006) Cancer Metastasis Rev. 25:541.
  16. Sobacchi, C. et al. (2007) Nat. Genet. 39:960.
Long Name
TNF-related Activation-induced Cytokine
Entrez Gene IDs
8600 (Human); 21943 (Mouse); 117516 (Rat); 102137946 (Cynomolgus Monkey)
Alternate Names
CD254 antigen; CD254; ODF; OPGL; OPGLOPTB2; Osteoclast differentiation factor; Osteoprotegerin ligand; RANK L; RANKL; RANKLreceptor activator of nuclear factor kappa B ligand; Receptor activator of nuclear factor kappa-B ligand; sOdf; TNF-related activation-induced cytokine; TNFSF11; TRANCE; TRANCEODFhRANKL2; tumor necrosis factor (ligand) superfamily, member 11; tumor necrosis factor ligand superfamily member 11

Citation for Recombinant Human TRANCE/RANK L His Avi-tag Protein, CF

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

1 Citation: Showing 1 - 1

  1. ADR3, a next generation i-body to human RANKL, inhibits osteoclast formation and bone resorption
    Authors: H Qiu, C Hosking, E Rothzerg, A Samantha, K Chen, V Kuek, H Jin, S Zhu, A Vrielink, K Lim, M Foley, J Xu
    The Journal of Biological Chemistry, 2023;0(0):102889.
    Species: Human
    Sample Types:
    Applications: Bioassay
