Simple Plex Human IL-5 Cartridge

R&D Systems | Catalog # SPCKB-PS-000229

Simple Plex Cartridge Kit for quantitation of IL-5. Includes wash buffer and sample diluent. For use with the Ella automated immunoassay system.
R&D Systems

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (10 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.02 pg/mL

Assay Range

0.13-1248 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Human IL-5 Cartridge Summary

Simple Plex assay for the detection of human IL-5 in cell culture superntant (CCS), serum, and plasma (EDTA/Heparin).

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-5 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.
Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human IL-5.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay.

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 1 2
n 16 16 10 10
Mean (pg/mL) 22.5 999 19.0 886
Standard Deviation 1.69 54.9 1.90 73.3
CV% 7.5 5.5 10.1 8.3

Recovery for Simple Plex Human IL-5 Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type Average % Recovery Range %
EDTA Plasma (n=4) 94 87-102
Heparin Plasma (n=4) 95 85-101
Serum (n=4) 99 90-105

Linearity

Samples containing and/or spiked with high concentrations of human IL-5 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

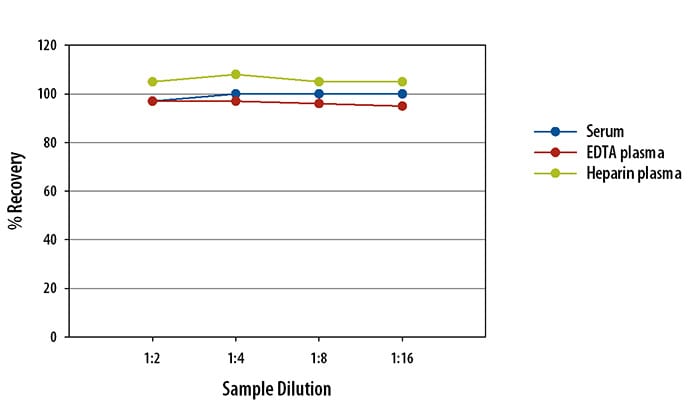

Human IL-5 Simple Plex Assay Linearity

Scientific Data Images for Simple Plex Human IL-5 Cartridge

Human IL-5 Simple Plex Assay Standard Curve

Human IL-5 Ella Assay Standard Curve

Preparation and Storage

Formulation

Lyophilized from a 0.2 µm filtered solution in PBS.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-5

IL-5 (Interleukin-5) is a secreted cytokine that is expressed as a covalent dimer. It is produced by activated Th2 cells, eosinophils, mast cells, and iNKT cells and promotes eosinophilic and basophilic differentiation and activation. IL-5 signals through a receptor complex containing IL-5 R alpha and the Common beta Chain/CD131 on eosinophils and basophils. Naturally occurring soluble forms of IL-5 R alpha retain the ability to bind IL-5 and limit its bioavailability.

Long Name

Interleukin 5

Alternate Names

BCDF mu, BCGFII, EDF, Eo-CSF, IL5, TRF

Entrez Gene IDs

3567 (Human); 16191 (Mouse); 24497 (Rat); 397409 (Porcine); 280825 (Bovine); 403790 (Canine); 100034199 (Equine); 493803 (Feline)

Gene Symbol

IL5
