TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

Novus Biologicals | Catalog # NB100-56585

Novus Biologicals

Key Product Details

Species Reactivity

Validated:

Human

Cited:

Human

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence

Cited:

Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG1 Clone # 200C1339(SB20)

Format

BSA Free
Loading...

Product Specifications

Immunogen

This monoclonal antibody was developed by immunizing mice with a synthetic peptide containing amino acids 481-497 (CINFTRVKNNQPAKYPL) of human TEM8.

Specificity

Nanda et al (2004) note a passage dependent loss of TEM8 in HUVEC suggesting that that TEM8 may be a specific marker of the endothelial cell (EC) phenotype which is lost as primary EC's age in culture and de-differentiate.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20))BSA Free [NB100-56585]

Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20))BSA Free [NB100-56585]

Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20)) [NB100-56585] - Detection in TEM8 transfected cell lysate using this antibody.
Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free [NB100-56585]

Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free [NB100-56585]

Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) [NB100-56585] - Detection of TEM8/ANTXR1 in human liver cancer section using 5 ug/ml concentration of TEM8 antibody. Uniform weak staining was observed in the cancerous cells, while the blood vessels depicted the expected intense positivity for TEM8.
Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20))BSA Free [NB100-56585]

Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20))BSA Free [NB100-56585]

Western Blot: TEM8/ANTXR1 Antibody (200C1339(SB20)) [NB100-56585] - Analysis of human heart lysates (35ug per lane, RIPA buffer) using TEM8 antibody (NB100-56585) at 0.3ug/ml. Band observed at 65kDa. (Expected MW of 62.8kDa according to NP_115584.1).
Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free [NB100-56585]

Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free [NB100-56585]

Immunohistochemistry-Paraffin: TEM8/ANTXR1 Antibody (200C1339(SB20)) [NB100-56585] - Human colon stained with TEM8 antibody at 2.5 ug/ml concentration using DAB chromogen detection method (10X magnification)
TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

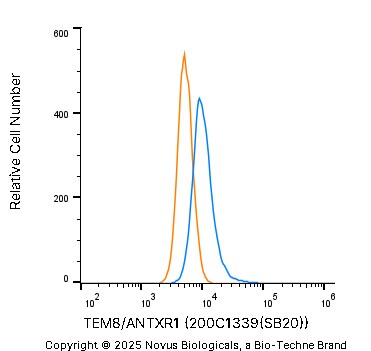

Detection of TEM8/ANTXR1 (200C1339(SB20)) in SJCRH30 Human Cell Line by Flow Cytometry.

An intracellular stain was performed on SJCRH30 human Rhabdomyosarcoma cell line with Mouse anti- TEM8/ANTXR1 (200C1339(SB20)) Protein-G purified Monoclonal Antibody (Catalog # NB100-56585, blue histogram) or matched control antibody (orange histogram) at 2.5 µg/mL for 30 minutes at RT.
TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

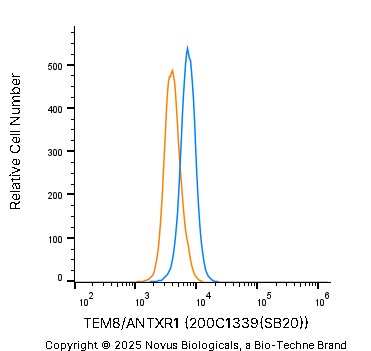

Detection of TEM8/ANTXR1 (200C1339(SB20)) in NIH-3T3 Mouse Cell Line by Flow Cytometry.

An intracellular stain was performed on NIH-3T3 Mouse fibroblast cell line with Mouse anti- TEM8/ANTXR1 (200C1339(SB20)) Protein-G purified Monoclonal Antibody (Catalog # NB100-56585, blue histogram) or matched control antibody (orange histogram) at 2.5 µg/mL for 30 minutes at RT.

Applications for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

reported in scientific literature (Matsuda (2010))

Immunohistochemistry

2-5 ug/ml

Immunohistochemistry-Paraffin

2-5 ug/ml. Use reported in scientific literature (Hotchkiss et al (2005))

Western Blot

1-3 ug/ml
Application Notes
TEM8 is observed at ~80 kDa in western blots of HUVEC cells (Hotchkiss et al, 2005) and as an 80 kDa and 85 kDa double in human colon cell lysates (Nanada et al, 2004). The size difference is thought to be due to glycosylation as a 70 kDa band was seen when cell extracts in Nanda et al (2004) were treated with a glycosidase cocktail.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1.0 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: TEM8/ANTXR1

Recently, using SAGE (Serial Analysis of Gene Expression) technology, St. Croix et al, have identified 46 genes, whose expression is specifically elevated in tumor-associated endothelium. Nine of these genes were prominently expressed only in tumor endothelial cells (EC), but were absent or barely detectable in normal ECs, and named as Tumor Endothelial Markers (TEMs, TEM 1-9). Based on TEM8s interaction with the C5 domain of collagen a3(VI), a protein also preferentially expressed in tumor endothelium, it is thought that TEM8 plays an important role in tumor angiogenesis.

Long Name

Tumor Endothelial Marker 8/Anthrax Toxin Receptor 1

Alternate Names

ANTXR1

Entrez Gene IDs

84168 (Human); 69538 (Mouse); 362393 (Rat)

Gene Symbol

ANTXR1

UniProt

Additional TEM8/ANTXR1 Products

Product Documents for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

Customer Reviews for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free

There are currently no reviews for this product. Be the first to review TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free and earn rewards!

Have you used TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for TEM8/ANTXR1 Antibody (200C1339(SB20)) - BSA Free (NB100-56585):

Immunohistochemistry-Paraffin Embedded Sections

Antigen Unmasking:
Bring slides to a boil in 10 mM sodium citrate buffer (pH 6.0) then maintain at a sub-boiling temperature for 10 minutes. Cool slides on bench-top for 30 minutes (keep slides in the sodium citrate buffer at all times).

Staining:
1. Wash sections in deionized water three times for 5 minutes each.
2. Wash sections in PBS for 5 minutes.
3. Block each section with 100-400 ul blocking solution (1% BSA in PBS) for 1 hour at room temperature.
4. Remove blocking solution and add 100-400 ul diluted primary antibody. Incubate overnight at 4 C.
5. Remove antibody solution and wash sections in wash buffer three times for 5 minutes each.
6. Add 100-400 ul HRP polymer conjugated secondary antibody. Incubate 30 minutes at room temperature.
7. Wash sections three times in wash buffer for 5 minutes each.
8. Add 100-400 ul DAB substrate to each section and monitor staining closely.
9. As soon as the sections develop, immerse slides in deionized water.
10. Counterstain sections in hematoxylin.
11. Wash sections in deionized water two times for 5 minutes each.
12. Dehydrate sections.
13. Mount coverslips.


Western Blot Protocol

1. Perform SDS-PAGE on samples to be analyzed, loading 10-25 ug of total protein per lane.
2. Transfer proteins to PVDF membrane according to the instructions provided by the manufacturer of the membrane and transfer apparatus.
3. Stain the membrane with Ponceau S (or similar product) to assess transfer success, and mark molecular weight standards where appropriate.
4. Rinse the blot TBS -0.05% Tween 20 (TBST).
5. Block the membrane in 5% Non-fat milk in TBST (blocking buffer) for at least 1 hour.
6. Wash the membrane in TBST three times for 10 minutes each.
7. Dilute primary antibody in blocking buffer and incubate overnight at 4C with gentle rocking.
8. Wash the membrane in TBST three times for 10 minutes each.
9. Incubate the membrane in diluted HRP conjugated secondary antibody in blocking buffer (as per manufacturer's instructions) for 1 hour at room temperature.
10. Wash the blot in TBST three times for 10 minutes each (this step can be repeated as required to reduce background).
11. Apply the detection reagent of choice in accordance with the manufacturer's instructio
