Key Product Details

Species Reactivity

Validated:

Human, Rat, Bovine, Feline

Cited:

Human

Predicted:

Primate (100%). Backed by our 100% Guarantee.

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence

Cited:

IF/IHC

Label

PE (Excitation = 488 nm, Emission = 575 nm)

Antibody Source

Polyclonal Rabbit IgG
View all CCR2 Primary Antibodies »

Product Specifications

Immunogen

Synthetic peptide made to an N-terminal portion of the human CCR2 protein (within residues 20-100). [Swiss-Prot# P41597]

Reactivity Notes

Feline reactivity reported in scientific literature (PMID: 30395163). Use in Bovine reported in scientific literature (PMID:31761882). Reactivity with Rat reported by verified customer. The immunogen sequence similarity with other species: Rhesus monkey and several other primate species (100%), Mouse (69%).

Localization

Multi-pass cell membrane protein with extracellular and cytoplasmic domains.

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Scientific Data Images for CCR2 Antibody [PE]

CCR2 Antibody [PE]

CCR2 Antibody [PE] [NBP1-48337PE] -

CCR2 Antibody [PE] [NBP1-48337PE] - Vial of PE conjugated antibody. PE has two excitation maxima, 498 nm excited by the Blue laser (488 nm) and 565 nm excited by the Yellow-Green laser (561 nm). Both result in emission at 578 nm.
CCR2 Antibody [PE]

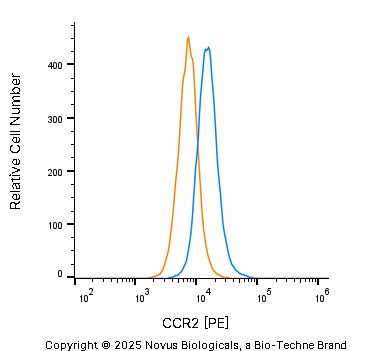

Detection of CCR2 in U-2 OS Human Cell Line by Flow Cytometry.

An intracellular stain was performed on U-2 OS human osteosarcoma cell line with Rabbit anti-CCR2 Affinity-purified Polyclonal Antibody conjugated to Phycoerythrin (Catalog # NBP1-48337PE, blue histogram) or matched control antibody (Catalog # NBP2-24983, orange histogram) at 5 µg/mL for 30 minutes at RT.

Applications for CCR2 Antibody [PE]

Application
Recommended Usage

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry-Paraffin

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Immunogen affinity purified

Formulation

PBS

Preservative

0.05% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark.

Background: CCR2

CCR2 is a major chemokine receptor expressed on monocytes and its activation through its ligands MCP1, MCP2, MCP3 and MCP4 (systematic names CCL2, CCL8, CCL7 and CCL13, respectively) stimulates the migration of monocytes across the vascular wall into tissues wherein they facilitate chronic inflammation. CCR2 is a member of GPCR1 family and is up-regulated by CREB3. It is a multi-pass membrane protein found in cell membrane, and besides monocytes, it is also found on other cell types like NK cells, macrophages, immature dendritic cells, gamma delta T cells, and activated T cells (including Th17 cells). There are two alternatively spliced forms of CCR2: CCR2A - the major isoform expressed by mononuclear cells and vascular smooth muscle cells; and CCR2B - expressed predominantly by monocytes and activated NK cells. CCR2 has both pro-inflammatory (mediated by APC and T cells) and anti-inflammatory (mediated by regulatory T cells) activities. Besides inflammation, it has been implicated several pathologies including HIV-1/AIDS, autoimmune disorders (psoriasis, rheumatoid arthritis, and multiple sclerosis), pulmonary diseases (asthma, COPD), vascular disease and cancer (prostate cancer).

Alternate Names

CC-CKR-2, CCR2, CCR2B, CD192, CKR2, CKR2A, CMKBR2, FLJ78302, MCP-1-R

Gene Symbol

CCR2

Additional CCR2 Products

Product Documents for CCR2 Antibody [PE]

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for CCR2 Antibody [PE]

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.
