FABP4/A-FABP Antibody - BSA Free

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218]

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218] - Staining of human adipose tissue shows strong cytoplasmic positivity in adipocytes.

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218]

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218] - Staining of human cerebral cortex shows no cytoplasmic positivity in neurons as expected.

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218]

Immunohistochemistry-Paraffin: FABP4/A-FABP Antibody [NBP1-89218] - Staining of human placenta shows strong cytoplasmic positivity in endothelial cells.

Simple Western: FABP4/A-FABP Antibody [NBP1-89218]

Simple Western: FABP4/A-FABP Antibody [NBP1-89218] - Simple Western lane view shows a specific band for FABP4 in 0.2 mg/ml of RT-4 (left) and U-251MG sp (right) lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.

Simple Western: FABP4/A-FABP Antibody [NBP1-89218]

Simple Western: FABP4/A-FABP Antibody [NBP1-89218] - Electropherogram image(s) of corresponding Simple Western lane view. FABP4/A-FABP antibody was used at 1:20 dilution on RT-4 and U-251MG sp lysates(s).

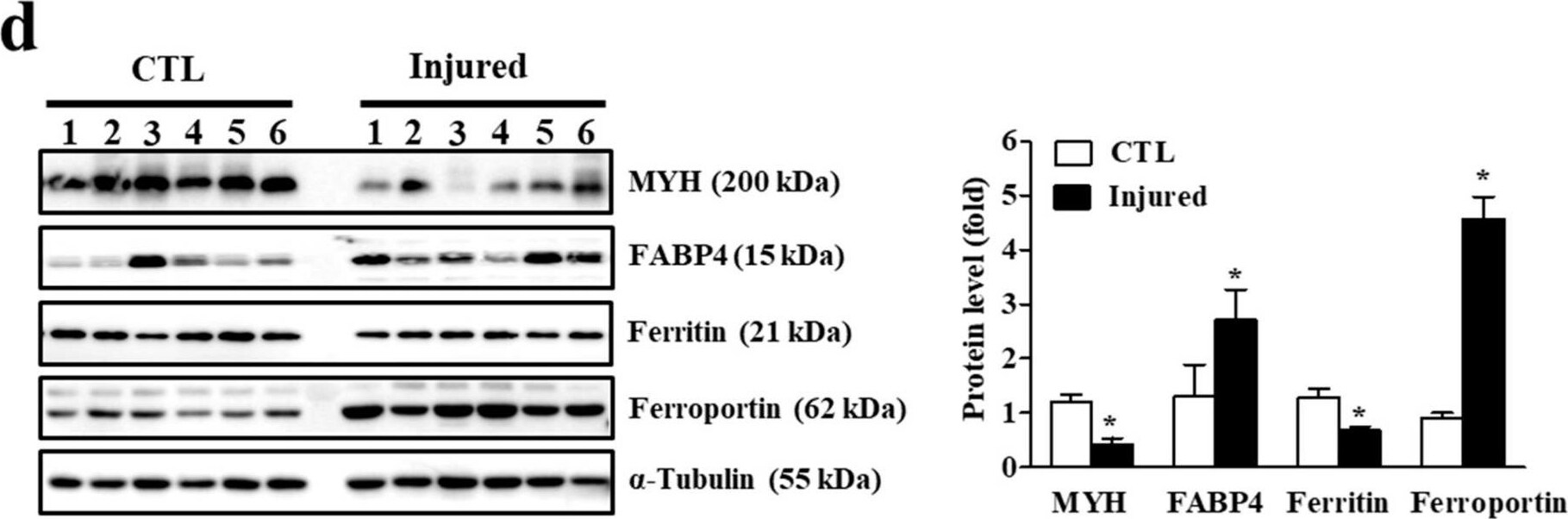

Western Blot: FABP4/A-FABP Antibody - BSA Free [NBP1-89218] -

Correlation between reduced iron levels and increased ferroportin expression in injured muscles. (a) Histological difference between intact control (CTL) muscle and injured muscle by hematoxylin and eosin staining. Pictures are representative of the muscle tissue from pronator quadratus (hand) and rotator cuff (shoulder) muscles (n = 10 per group). Scale bar: 100 μm. (b) Intracellular iron concentration between intact control and injured muscles (n = 30 per group). (c) mRNA expression of ferritin, hepcidin and ferroportin for intact control and injured muscles (n = 30 per group). (d) Western blot analyses for myosin heavy chain (MYH), fatty acid binding protein 4 (FABP4), ferritin, ferroportin and alpha -tubulin protein expression in intact control and injured muscles (n = 6 per group). A densitometric analysis of the Western blots is shown in the graph on the right. (e) Immunofluorescence (IF) microscopy images showing ferroportin expression. The blue signals indicate cell nuclei. Images are representative of independent tissue samples (n = 10 per group). Scale bar: 100 μm. The negative control (secondary antibody only) for the IF showed no specific signal (data not shown). Ferroportin expression levels (green staining) were assessed with densitometry using Image J software (Version 1.8.0, National Institutes of Health, Bethesda, MD, USA), shown on the right. Data represent mean +/- SEM. * p < 0.05. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/36139428), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
