Human ALCAM/CD166 Alexa Fluor® 488-conjugated Antibody

  • Species Reactivity
  • Specificity
    Detects human ALCAM in Western blots. Shows approximately 50% cross-reactivity with recombinant mouse OCAM and no cross-reactivity with recombinant human (rh) BCAM, rhEpCAM, rhMCAM, or rhNCAM-L1.
  • Source
    Monoclonal Mouse IgG1 Clone # 105902
  • Purification
    Protein A or G purified from ascites
  • Immunogen
    Mouse myeloma cell line NS0-derived recombinant human ALCAM/CD166
    Accession # Q13740
  • Formulation
    Supplied in a saline solution containing BSA and Sodium Azide.
  • Label
    Alexa Fluor 488
  • Flow Cytometry
    5 µL/106 cells
    See below
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

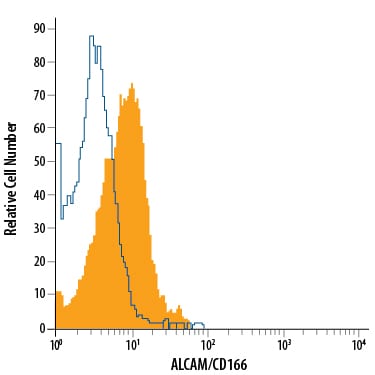

Detection of ALCAM/CD166 in Human Blood Lymphocytes by Flow Cytometry. Human peripheral blood lymphocytes were stained with Mouse Anti-Human ALCAM/CD166 Alexa Fluor® 488‑conjugated Monoclonal Antibody (Catalog # FAB6561G, filled histogram) or isotype control antibody (Catalog # IC002G, open histogram). View our protocol for Staining Membrane-associated Proteins.
Preparation and Storage
  • Shipping
    The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
  • Stability & Storage
    Protect from light. Do not freeze.
    • 12 months from date of receipt, 2 to 8 °C as supplied.
Background: ALCAM/CD166

ALCAM, activated leukocyte cell adhesion molecule, is a type I membrane glycoprotein and a member of the immunoglobulin supergene family. It is also known as CD166, MEMD, SC-1/DM-GRASP/BEN in the chicken, and KG-CAM in the rat. ALCAM is expressed on thymic epithelial cells, activated B and T cells, and monocytes. ALCAM can bind itself homotypically and is also capable of binding CD6, NgCAM, and other, as of yet, unidentified brain proteins. The ALCAM/CD6 interaction may be involved in T cell development and T cell regulation. Additionally, ALCAM/CD6 and ALCAM/NgCAM interactions may play roles in the nervous system. ALCAM has also been observed to be upregulated on highly metastasizing melanoma cell lines and may play a role in tumor migration. ALCAM is a 583 amino acid (aa) protein consisting of a 27 aa signal peptide, a 500 aa extracellular domain, a 24 aa transmembrane domain and a 32 aa cytoplasmic domain. The extracellular domain of ALCAM contains 5 Ig-like domains.

  • References:
    1. Bowen, M.A. et al. (1995) J. Exp. Med. 181:2213.
    2. Aruffo, A. et al. (1997) Immunol. Today 18:498.
    3. Degen, W.G. et al. (1998) Am. J. Pathol. 152:805.
  • Long Name:
    Activated Leukocyte Cell Adhesion Molecule
  • Entrez Gene IDs:
    214 (Human); 11658 (Mouse)
  • Alternate Names:
    activated leucocyte cell adhesion molecule; activated leukocyte cell adhesion moleculeFLJ38514; CD166 antigen; CD166; MEMDMGC71733
