Human alpha-Fetoprotein Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available
Human alpha-Fetoprotein/AFP ELISA Calibrator Diluent RD5-24 Standard Curve
3 Images
Product Details
Citations (11)
Supplemental Products

Human alpha-Fetoprotein Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (50 uL), EDTA Plasma (50 uL), Heparin Plasma (50 uL)
0.046 ng/mL
Assay Range
0.3 - 20 ng/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)
Natural human AFP
< 0.5% cross-reactivity observed with available related molecules.Cross-species reactivity not tested.
Interference observed with other substances.

Product Summary

The Quantikine Human AFP immunoassay is a 4.5 hour solid phase ELISA designed to measure human AFP in cell culture supernates, serum, and plasma.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (ng/mL) 2.89 6.02 12.3 2.65 5.62 11.7
Standard Deviation 0.109 0.219 0.441 0.158 0.261 0.549
CV% 3.8 3.6 3.6 6 4.6 4.7

Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (ng/mL) 3.15 6.62 13.2 3.22 6.79 14.1
Standard Deviation 0.08 0.149 0.447 0.215 0.382 0.93
CV% 2.5 2.3 3.4 6.7 5.6 6.6


The recovery of AFP spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 99 95-103
EDTA Plasma (n=4) 104 94-114
Heparin Plasma (n=4) 103 95-115
Serum (n=4) 103 86-115

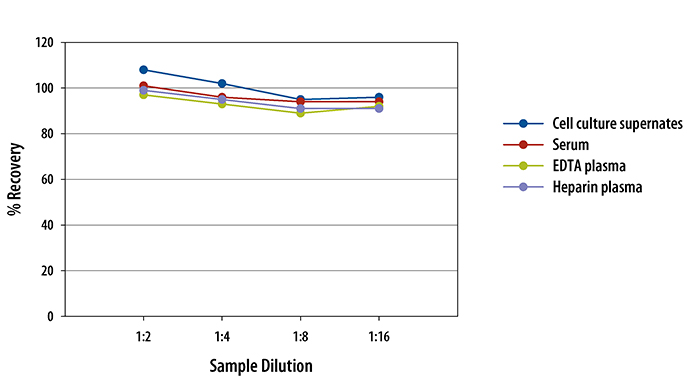

To assess the linearity of the assay, samples spiked with high concentrations of AFP were serially diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human alpha-Fetoprotein/AFP ELISA Linearity

Scientific Data

Human alpha-Fetoprotein/AFP ELISA Calibrator Diluent RD5-24 Standard Curve

Human alpha-Fetoprotein/AFP ELISA Calibrator Diluent RD5-33 Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: alpha-Fetoprotein/AFP

alpha-Fetoprotein (AFP), is albuminoid superfamily protein that is synthesized in the fetus primarily by the liver, yolk sac, and tissues of gastrointestinal origin. It is one of the earliest markers of the hepatocyte lineage. AFP acts as a carrier protein for steroids, bilirubin, fatty acids, retinoids, and flavonoids. In addition, it can exert immunosuppressive activity, regulate cell proliferation and apoptosis, initiate intracellular signaling, and contribute to cell invasion. Altered levels of both fetal and maternal AFP have been associated with hypothyroidism, autoimmune disorders, and heart defects. Low maternal serum AFP levels are associated with a higher incidence of Down syndrome, whereas higher levels are associated with spina bifida and anencephaly. Elevated AFP levels are also coincident with liver, stomach, and germ cell cancers.

Entrez Gene IDs:
174 (Human); 11576 (Mouse); 24177 (Rat)
Alternate Names:
AFP; Alpha-1-fetoprotein; alpha-fetoglobulin; alpha-Fetoprotein; DSCAM2; FETA; HP; HPAFP
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
