Human CXCL12/SDF-1 DuoSet ELISA

Catalog # Availability Size / Price Qty
Ancillary Products Available

SAVE +FREE SHIPPING with ACADEMIA23 (See Promo Details)

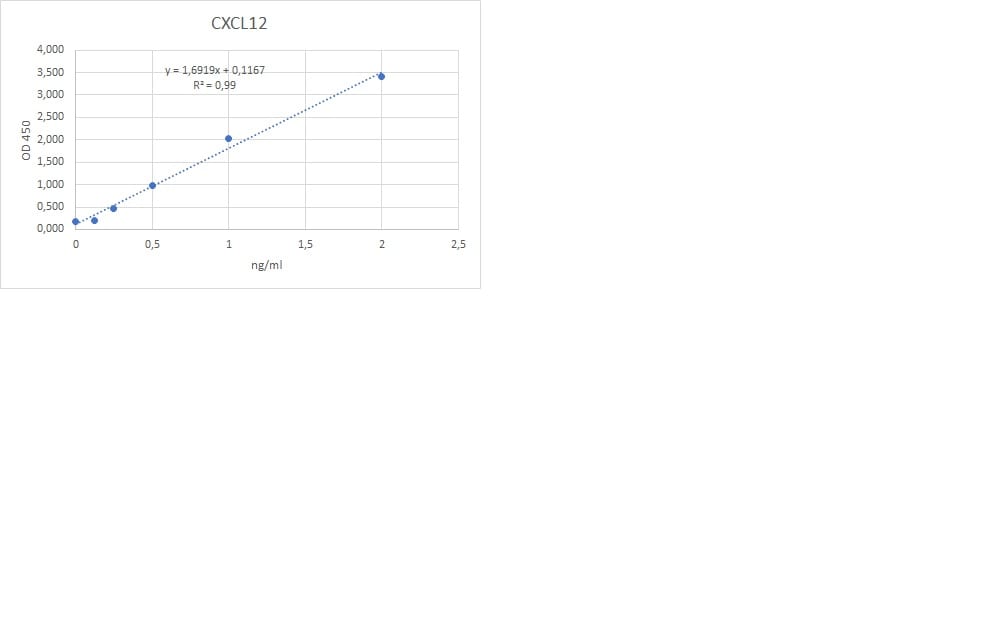

Human CXCL12 / SDF-1 ELISA Standard Curve
1 Image
Product Details
Citations (30)
Supplemental Products
Reviews (2)

Human CXCL12/SDF-1 DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Sample Volume Required
100 µL
Assay Range
31.2 - 2,000 pg/mL
Sufficient Materials
For fifteen 96-well plates*
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human CXCL12/SDF-1. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.

Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

Normal Goat Serum: (Catalog # DY005)


The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Normal Goat Serum: (Catalog # DY005)


Scientific Data

Human CXCL12 / SDF-1 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: CXCL12/SDF-1

CXCL12/Stromal Cell-derived Factor 1 (SDF-1) is a member of the CXC chemokine ligand superfamily. Six alternatively spliced CXCL12/SDF-1 isoforms have been identified including, CXCL12/SDF-1 alpha, CXCL12/SDF-1 beta, and CXCL12/SDF-1 gamma. CXCL12/SDF-1 alpha is 89 amino acids (aa) in length with a predicted molecular weight of 10 kDa, CXCL12/SDF-1 beta is 93 aa in length with a predicted molecular weight of 10.6 kDa, and CXCL12/SDF-1 gamma is 119 aa in length with a predicted molecular weight of 13.7 kDa. The mouse CXCL12/SDF-1 orthologs share 99% aa sequence identity with the human protein. The alpha and beta isoforms are ubiquitously expressed while the gamma isoform is primarily expressed in the heart. CXCL12/SDF-1 isoforms are chemotactic for T lymphocytes and monocytes. It is cardio protective and has also been shown to hinder CXCR4-mediated HIV infection of T cells.

Entrez Gene IDs:
6387 (Human); 20315 (Mouse); 493806 (Feline); 574334 (Rhesus Macaque)
Alternate Names:
chemokine (C-X-C motif) ligand 12; C-X-C motif chemokine 12; CXCL12; hIRH; hSDF-1; Intercrine reduced in hepatomas; IRH; PBSF; PBSFSDF-1a; Pre-B cell growth-stimulating factor; SCYB12; SDF1; SDF-1; SDF1A; SDF1B; SDF1SDF-1b; stromal cell-derived factor 1; TLSF; TLSF-a; TLSF-b; TPAR1

Assay Procedure


Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent with NGS, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Human CXCL12/SDF-1 DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

30 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. CXCL12 and CXCR4 as Novel Biomarkers in Uric Acid-Induced Inflammation and Patients with Gouty Arthritis
    Authors: SK Kim, JY Choe, KY Park
    Biomedicines, 2023-02-21;11(3):.
    Species: Human
    Sample Types: Serum
  2. Association between the expression of Toll-like receptors, cytokines, and homeostatic chemokines in SARS-CoV-2 infection and COVID-19 severity
    Authors: W Alturaiki, H Alkadi, S Alamri, ME Awadalla, A Alfaez, A Mubarak, MA Alanazi, FQ Alenzi, BF Flanagan, B Alosaimi
    Heliyon, 2022-12-24;0(0):e12653.
    Species: Human
    Sample Types: Serum
  3. The fatal trajectory of pulmonary COVID-19 is driven by lobular ischemia and fibrotic remodelling
    Authors: M Ackermann, JC Kamp, C Werlein, CL Walsh, H Stark, V Prade, R Surabattul, WL Wagner, C Disney, AJ Bodey, T Illig, DJ Leeming, MA Karsdal, A Tzankov, P Boor, MP Kühnel, FP Länger, SE Verleden, HM Kvasnicka, HH Kreipe, A Haverich, SM Black, A Walch, P Tafforeau, PD Lee, MM Hoeper, T Welte, B Seeliger, S David, D Schuppan, SJ Mentzer, DD Jonigk
    EBioMedicine, 2022-10-04;85(0):104296.
    Species: Human
    Sample Types: Plasma
  4. Pro-cancerogenic effects of spontaneous and drug-induced senescence of ovarian cancer cells in vitro and in vivo: a comparative analysis
    Authors: S Rutecki, P Szulc, M Paku?a, P Uruski, A Radziemski, E Naumowicz, R Moszy?ski, A Tykarski, J Miku?a-Pie, K Ksi??ek
    Journal of ovarian research, 2022-07-26;15(1):87.
    Species: Human
    Sample Types: Cell Culture Supernates
  5. Evidence of Stem Cells Mobilization in the Blood of Patients with Pancreatitis: A Potential Link with Disease Severity
    Authors: K D?bkowski, A ?ab?d?-Mas, B Do??gowska, K Safranow, M Budkowska, E Zuba-Surma, T Starzy?ska
    Stem Cells International, 2022-07-08;2022(0):5395248.
    Species: Human
    Sample Types: Serum
  6. MIF/CXCR4 signaling axis contributes to survival, invasion, and drug resistance of metastatic neuroblastoma cells in the bone marrow microenvironment
    Authors: L Garcia-Ger, M García, A Garrido-Ga, S Gómez-Gonz, M Torrebadel, E Prada, G Pascual-Pa, O Muñoz, S Perez-Jaum, I Lemos, N Salvador, M Vila-Ubach, A Doncel-Req, M Suñol, AM Carcaboso, J Mora, C Lavarino
    BMC Cancer, 2022-06-17;22(1):669.
    Species: Human
    Sample Types: Cell Culture Supernates
  7. CHMP2A regulates tumor sensitivity to natural killer cell-mediated cytotoxicity
    Authors: D Bernareggi, Q Xie, BC Prager, J Yun, LS Cruz, TV Pham, W Kim, X Lee, M Coffey, C Zalfa, P Azmoon, H Zhu, P Tamayo, JN Rich, DS Kaufman
    Nature Communications, 2022-04-07;13(1):1899.
    Species: Human
    Sample Types: Cell Culture Supernates
  8. Engagement of the CXCL12-CXCR4 Axis in the Interaction of Endothelial Progenitor Cell and Smooth Muscle Cell to Promote Phenotype Control and Guard Vascular Homeostasis
    Authors: SF Mause, E Ritzel, A Deck, F Vogt, EA Liehn
    International Journal of Molecular Sciences, 2022-01-14;23(2):.
    Species: Human
    Sample Types: Cell Culture Supernates
  9. A Crosslinked Dextran Sulfate-Chitosan Nanoparticle for Delivery of Therapeutic Heparin-binding Proteins
    Authors: VA Guarino, A Blau, J Alvarenga, J Loscalzo, YY Zhang
    International journal of pharmaceutics, 2021-11-11;0(0):121287.
    Species: Rat
    Sample Types: Tissue Homogenates
  10. High circulating SDF-1and MCP-1 levels and genetic variations in CXCL12, CCL2 and CCR5: Prognostic signature of immune recovery status in treated HIV-positive patients
    Authors: E Yeregui, C Viladés, P Domingo, A Ceausu, YM Pacheco, S Veloso, A Inciarte, J Vidal-Gonz, M Peraire, C Perpiñán, V Falcó, J Masip, V Alba, M Vargas, A Martí, L Reverté, J Mallolas, F Vidal, J Peraire, A Rull
    EBioMedicine, 2020-11-06;62(0):103077.
    Species: Human
    Sample Types: Plasma
  11. Clinicogenomic factors of biotherapy immunogenicity in autoimmune disease: A prospective multicohort study of the ABIRISK consortium
    Authors: S Hässler, D Bachelet, J Duhaze, N Szely, A Gleizes, S Hacein-Bey, O Aktas, M Auer, J Avouac, M Birchler, Y Bouhnik, O Brocq, D Buck-Marti, G Cadiot, F Carbonnel, Y Chowers, M Comabella, T Derfuss, N De Vries, N Donnellan, A Doukani, M Guger, HP Hartung, E Kubala Hav, B Hemmer, T Huizinga, K Ingenhoven, PE Hyldgaard-, EC Jury, M Khalil, B Kieseier, A Laurén, R Lindberg, A Loercher, E Maggi, J Manson, C Mauri, B Mohand Oum, X Montalban, M Nachury, P Nytrova, C Richez, M Ryner, F Sellebjerg, C Sievers, D Sikkema, M Soubrier, S Tourdot, C Trang, A Vultaggio, C Warnke, S Spindeldre, P Dönnes, TP Hickling, A Hincelin M, M Allez, F Deisenhamm, A Fogdell-Ha, X Mariette, M Pallardy, P Broët, ABIRISK co
    PLoS Med, 2020-10-30;17(10):e1003348.
    Species: Human
    Sample Types: Serum
  12. Regional hyperthermia enhances mesenchymal stem cell recruitment to tumor stroma: Implications for mesenchymal stem cell-based tumor therapy
    Authors: M Tutter, C Schug, KA Schmohl, S Urnauer, C Kitzberger, N Schwenk, M Petrini, C Zach, S Ziegler, P Bartenstei, WA Weber, G Multhoff, E Wagner, LH Lindner, PJ Nelson, C Spitzweg
    Mol Ther, 2020-10-15;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  13. Effect of Enzymatically Extracted Fucoidans on Angiogenesis and Osteogenesis in Primary Cell Culture Systems Mimicking Bone Tissue Environment
    Authors: J Ohmes, Y Xiao, F Wang, MD Mikkelsen, TT Nguyen, H Schmidt, A Seekamp, AS Meyer, S Fuchs
    Mar Drugs, 2020-09-21;18(9):.
    Species: Human
    Sample Types: Cell Culture Supernates
  14. Development of a Sustained Release Nano-In-Gel Delivery System for the Chemotactic and Angiogenic Growth Factor Stromal-Derived Factor 1alpha
    Authors: J O'Dwyer, M Cullen, S Fattah, R Murphy, S Stefanovic, L Kovarova, M Pravda, V Velebny, A Heise, GP Duffy, SA Cryan
    Pharmaceutics, 2020-06-04;12(6):.
    Species: Human
    Sample Types: Protein
  15. Multiple myeloma exploits Jagged1 and Jagged2 to promote intrinsic and bone marrow-dependent drug resistance
    Authors: M Colombo, S Garavelli, M Mazzola, N Platonova, D Giannandre, R Colella, L Apicella, M Lancellott, E Lesma, S Ancona, MT Palano, M Barbieri, E Taiana, E Lazzari, A Basile, M Turrini, A Pistocchi, A Neri, R Chiaramont
    Haematologica, 2019-10-03;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  16. A Unique Pattern of Mesothelial-Mesenchymal Transition Induced in the Normal Peritoneal Mesothelium by High-Grade Serous Ovarian Cancer
    Authors: M Paku?a, P Uruski, A Niklas, A Wo?niak, D Szpurek, A Tykarski, J Miku?a-Pie, K Ksi??ek
    Cancers (Basel), 2019-05-13;11(5):.
    Species: Human
    Sample Types: Cell Culture Supernates
  17. Fibrin Glue Enhances Adipose-Derived Stromal Cell Cytokine Secretion and Survival Conferring Accelerated Diabetic Wound Healing
    Authors: U Hopfner, MM Aitzetmuel, P Ne beta bach, MS Hu, HG Machens, ZN Maan, D Duscher
    Stem Cells Int, 2018-12-19;2018(0):1353085.
    Species: Human
    Sample Types: Cell Culture Supernates
  18. Functionally distinct disease-associated fibroblast subsets in rheumatoid arthritis
    Authors: F Mizoguchi, K Slowikowsk, K Wei, JL Marshall, DA Rao, SK Chang, HN Nguyen, EH Noss, JD Turner, BE Earp, PE Blazar, J Wright, BP Simmons, LT Donlin, GD Kalliolias, SM Goodman, VP Bykerk, LB Ivashkiv, JA Lederer, N Hacohen, PA Nigrovic, A Filer, CD Buckley, S Raychaudhu, MB Brenner
    Nat Commun, 2018-02-23;9(1):789.
    Species: Human
    Sample Types: Cell Culture Supernates
  19. Serum SDF-1 levels are a reliable diagnostic marker of feline mammary carcinoma, discriminating HER2-overexpressing tumors from other subtypes
    Authors: CS Marques, M Soares, A Santos, J Correia, F Ferreira
    Oncotarget, 2017-11-11;8(62):105775-105789.
    Species: Feline
    Sample Types: Serum
  20. The Role of Shed PrP(c) in the Neuropathogenesis of HIV Infection
    Authors: BW Megra, EA Eugenin, JW Berman
    J. Immunol., 2017-05-22;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
    Authors: Marco Santoro
    Tissue Eng Part A, 2017-01-01;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  22. Synergic effects of VEGF-A and SDF-1 on the angiogenic properties of endothelial progenitor cells
    Authors: Gabriela Odent Grig
    J Tissue Eng Regen Med, 2016-12-12;0(0):.
    Species: Human
    Sample Types: Cell Culture Supernates
  23. Incorporation of heparin-binding proteins into preformed dextran sulfate-chitosan nanoparticles
    Int J Nanomedicine, 2016-11-18;11(0):6149-6159.
    Species: Rat
    Sample Types: Tissue Homogenates
  24. Reduction of maternal circulating endothelial progenitor cells in human pregnancies with intrauterine growth restriction.
    Authors: Calcaterra F, Taddeo A, Colombo E, Cappelletti M, Martinelli A, Calabrese S, Mavilio D, Cetin I, Della Bella S
    Placenta, 2014-04-26;35(7):431-6.
    Species: Human
    Sample Types: Plasma
  25. CXCR4 positive and angiogenic monocytes in myocardial infarction.
    Thromb Haemost, 2012-12-06;109(2):255-62.
    Species: Human
    Sample Types: Plasma
  26. The EGFR ligands amphiregulin and heparin-binding egf-like growth factor promote peritoneal carcinomatosis in CXCR4-expressing gastric cancer.
    Authors: Yasumoto K, Yamada T, Kawashima A, Wang W, Li Q, Donev IS, Tacheuchi S, Mouri H, Yamashita K, Ohtsubo K, Yano S
    Clin. Cancer Res., 2011-04-11;17(11):3619-30.
    Species: Human
    Sample Types: Complex Sample Type
  27. Identification of a New Phenotype of Tolerogenic Human Dendritic Cells Induced by Fungal Proteases from Aspergillus oryzae.
    Authors: Zimmer A, Luce S, Gaignier F, Nony E, Naveau M, Biola-Vidamment A, Pallardy M, Van Overtvelt L, Mascarell L, Moingeon P
    J. Immunol., 2011-03-02;186(7):3966-76.
    Species: Human
    Sample Types: Cell Culture Supernates
  28. Distinct platelet packaging, release, and surface expression of proangiogenic and antiangiogenic factors on different platelet stimuli.
    Authors: Chatterjee M, Huang Z, Zhang W, Jiang L, Hultenby K, Zhu L, Hu H, Nilsson GP, Li N
    Blood, 2011-02-17;117(14):3907-11.
    Species: Human
    Sample Types: Cell Culture Supernates
  29. CXCL12 is essential for migration of activated Langerhans cells from epidermis to dermis.
    Authors: Ouwehand K, Santegoets SJ, Bruynzeel DP, Scheper RJ, de Gruijl TD, Gibbs S
    Eur. J. Immunol., 2008-11-01;38(11):3050-9.
    Species: Human
    Sample Types: Cell Culture Supernates
  30. Regulation of SDF-1 (CXCL12) production by osteoblasts; a possible mechanism for stem cell homing.
    Authors: Jung Y, Wang J, Schneider A, Sun YX, Koh-Paige AJ, Osman NI, McCauley LK, Taichman RS
    Bone, 2005-12-05;38(4):497-508.
    Species: Human
    Sample Types: Cell Culture Supernates


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Reviews for Human CXCL12/SDF-1 DuoSet ELISA

Average Rating: 4.5 (Based on 2 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Human CXCL12/SDF-1 DuoSet ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Human CXCL12/SDF-1 DuoSet ELISA
By Anonymous on 03/11/2022
Sample Tested: Serum and Plasma

works well for human serum and plasma samples

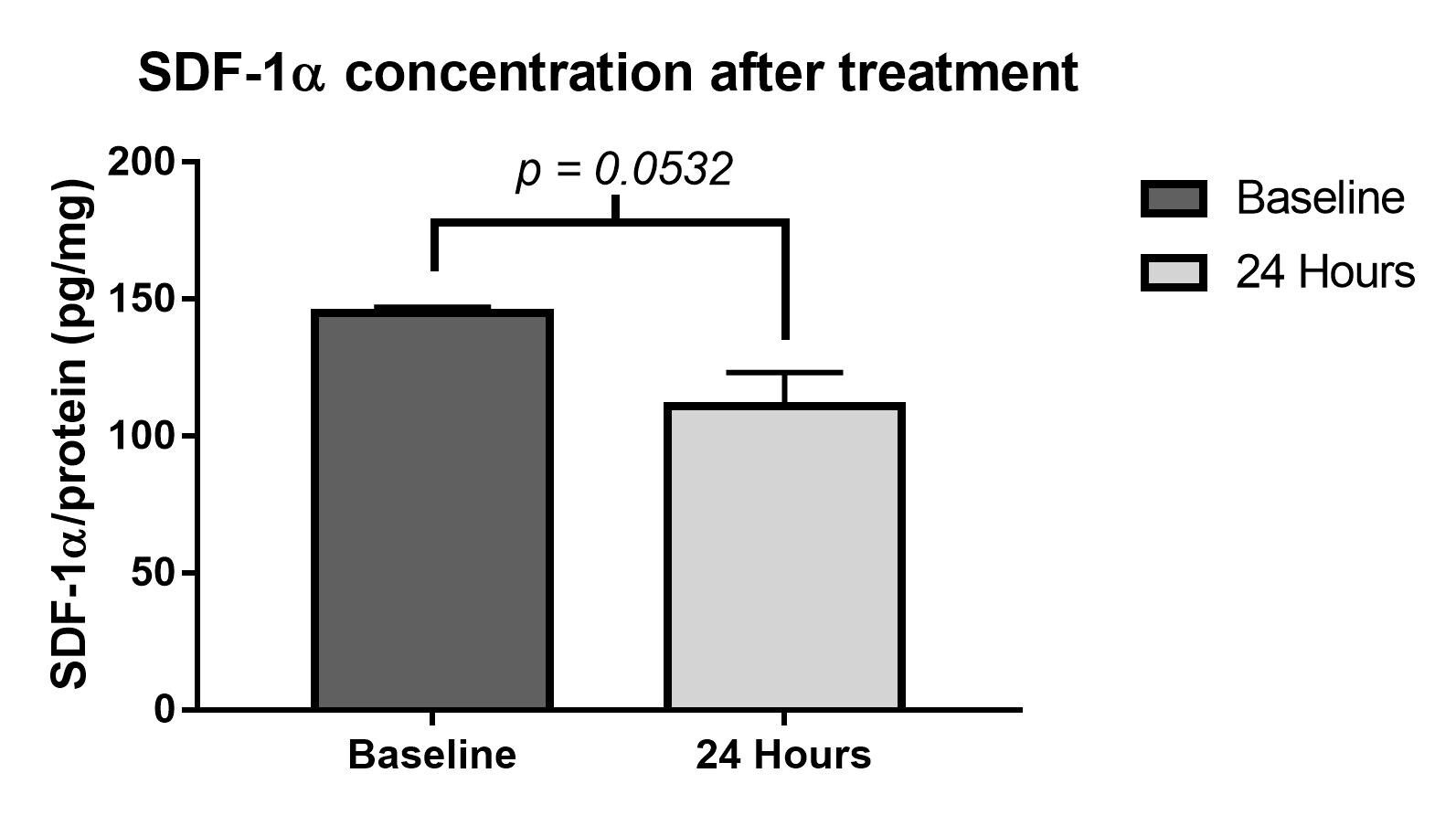

Human CXCL12/SDF-1 DuoSet ELISA
By Anonymous on 12/01/2016
Sample Tested: Brain (cortex) tissue
