Human Erythropoietin Quantikine IVD ELISA Kit

For In Vitro Diagnostic Use
(35 citations)
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    4.5 hours (Benchtop Protocol) or 2.5 hours (Shaker Protocol)
  • Sample Type & Volume Required Per Well
    Serum (100 uL), EDTA Plasma (100 uL)
  • Sensitivity
    0.6 mIU/mL
  • Assay Range
    2.5 - 200 mIU/mL (Serum, EDTA Plasma)
  • Specificity
    Natural and recombinant human Epo
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
  • Interference
    Interference observed with other substances.
Control Available
Product Summary
The Quantikine IVD Human Epo ELISA is designed to measure Epo levels in serum or plasma in less than 4.5 hours (or less than 2.5 hours using the shaker protocol) for the quantitative determination of erythropoietin (Epo) concentration in human serum and plasma as an aid in the diagnosis of anemia and polycythemia. For in vitro diagnostic use.

Intra-Assay Precision (Precision within an assay) Four control pools were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Four control pools were tested in separate assays to assess inter-assay precision.
Serum, EDTA Plasma
Intra-Assay Precision Inter-Assay Precision
Standard Deviation0000000000000000


The recovery of human Epo spiked to levels throughout the range of the assay was evaluated.

Sample Type Average % Recovery Range %
EDTA Plasma (Benchtop Protocol) (n=10) 102
EDTA Plasma (Shaker Protocol) (n=10) 105
Serum (Benchtop Protocol) (n=10) 100
Serum (Shaker Protocol) (n=10) 93

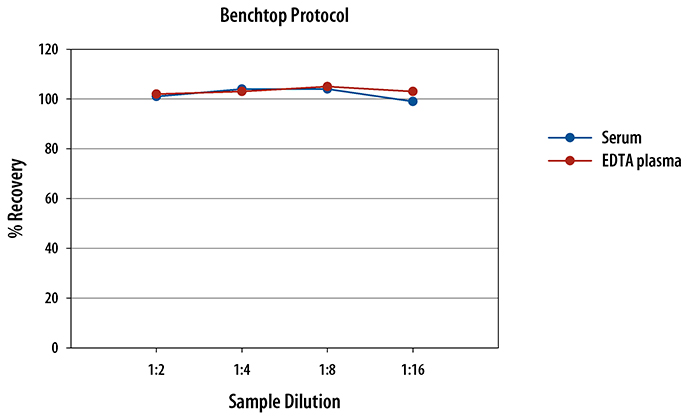

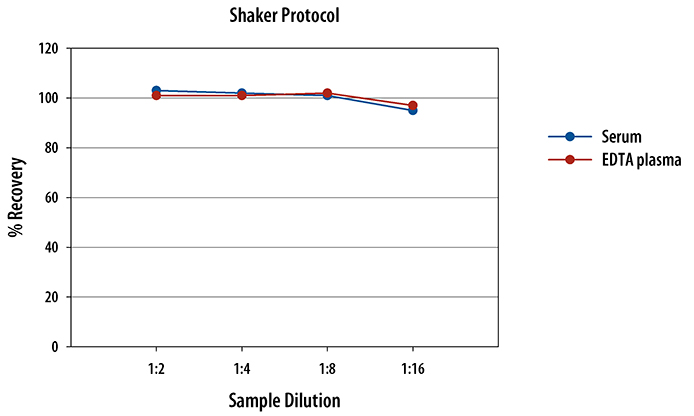

To assess the linearity of the assay, samples spiked with high concentrations of Epo were serially diluted with Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human Erythropoietin Quantikine IVD ELISA Kit
Human Erythropoietin Quantikine IVD ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: Erythropoietin
Erythropoietin (Epo) is a 30-kDa, heavily glycosylated protein produced primarily by the kidney. It is the principal factor that regulates erythropoiesis. The production of Epo by kidney cells is increased in response to hypoxia or anemia. The cDNAs for Epo have been cloned from many species. The mature proteins from the various species are highly conserved, exhibiting greater than 80% sequence identity at the amino acid level.

The biological effects of Epo are mediated by the Erythropoietin receptor (Epo R). At the protein sequence level, the human Epo R is approximately 83% identical to the mouse protein. As a result of alternative splicing of the Epo R gene, cDNA clones encoding truncated soluble forms of Epo R have been found. Recombinant soluble Epo R binds Epo with high affinity and is a potent Epo antagonist.

    • Entrez Gene IDs
      2056 (Human); 13856 (Mouse); 24335 (Rat);
    • Alternate Names
      EP; EPO; epoetin; erythropoietin; MGC138142; MVCD2;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and specimens to room temperature before use. It is recommended that all specimens, standards, and controls be assayed in duplicate. Benchtop and shaker protocols are provided. The same protocol must be used throughout the assay.
    1.   Prepare all reagents as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 100 µL Standard, Control, or Specimen
    6.   Add 100 µL of Standard, control, or specimen to each well. Cover with a plate sealer.
    7.   For Benchtop Protocol: Incubate at room temperature for 2 hours.
      For Shaker Protocol: Incubate at room temperature for 1 hour on a horizontal orbital microplate shaker.
    8.   Thoroughly aspirate each well. Do not wash.

    9. 200 µL Conjugate
    10.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer.
    11.   For Benchtop Protocol: Incubate at room temperature for 2 hours.
      For Shaker Protocol: Incubate at room temperature for 1 hour on a horizontal orbital microplate shaker.
    12.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    13. 200 µL Substrate Solution
    14. Add 200 µL Substrate Solution to each well. Incubate at room temperature for 20-25 minutes on the benchtop.

    15. 100 µL Stop Solution
    16. Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 600 nm.
