Human LIGHT/TNFSF14 Quantikine ELISA Kit

Catalog # Availability Size / Price Qty

SAVE +FREE SHIPPING with ACADEMIA23 (See Promo Details)

Human LIGHT/TNFSF14 ELISA Calibrator Diluent RD5K Standard Curve
3 Images
Product Details
Citations (12)
Supplemental Products
Reviews (1)

Human LIGHT/TNFSF14 Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), Serum (50 uL), EDTA Plasma (50 uL), Heparin Plasma (50 uL), Saliva (25 uL)
16.5 pg/mL
Assay Range
31.2 - 2,000 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma, Saliva)
Natural and recombinant human LIGHT
< 0.5% cross-reactivity observed with available related molecules.Cross-species reactivity not tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human LIGHT Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human LIGHT in cell culture supernates, serum, plasma, and saliva. It contains NS0-expressed recombinant human LIGHT and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human LIGHT showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human LIGHT.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, Saliva

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 308 626 1181 318 616 1177
Standard Deviation 11.7 25.3 34.6 27 44.2 81.8
CV% 3.8 4 2.9 8.5 7.2 6.9

Serum, EDTA Plasma, Heparin Plasma

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean (pg/mL) 350 712 1388 387 754 1469
Standard Deviation 12 31.7 63.3 19.6 31.8 63.4
CV% 3.4 4.5 4.6 5.1 4.2 4.3


The recovery of LIGHT spiked to levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 105 100-113
EDTA Plasma (n=5) 106 91-114
Heparin Plasma (n=5) 101 89-115
Serum (n=5) 102 85-114

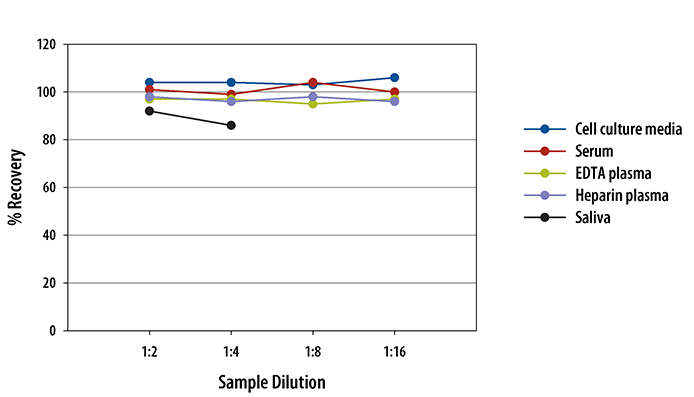

To assess the linearity of the assay, samples containing and/or spiked with high concentrations of LIGHT were serially diluted with the appropriate Calibrator Diluent to produce samples with values within the dynamic range of the assay.
Human LIGHT/TNFSF14 ELISA Linearity

Scientific Data

Human LIGHT/TNFSF14 ELISA Calibrator Diluent RD5K Standard Curve

Human LIGHT/TNFSF14 ELISA Calibrator Diluent RD6-6 Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: LIGHT/TNFSF14

LIGHT, also known as TNFSF14, is a homotrimeric glycoprotein in the TNF superfamily. It is expressed on the surface of activated lymphocytes, NK cells, immature dendritic cells, monocytes, and granulocytes. A soluble form can be shed by proteolysis. LIGHT binds and activates HVEM/TNFRSF14 to costimulate Th1 immune responses, enhance CD8+ T cell mediated tumor immunity, and regulate allogeneic T cell activation and allograft rejection. In addition, it binds and activates Lymphotoxin beta R/TNFRSF3 to induce apoptosis, cytokine production, mesenteric lymph node organogenesis, and maintenance of lymph node structure and function. It can also bind the soluble human decoy receptor DcR3/TNFRSF6B.

Long Name:
TNF Ligand Superfamily Member 14
Entrez Gene IDs:
8740 (Human); 50930 (Mouse)
Alternate Names:
CD258 antigen; CD258; delta transmembrane LIGHT; Herpes virus entry mediator ligand; Herpesvirus entry mediator ligand; HVEM-L; HVEMLherpesvirus entry mediator-ligand; ligand for herpesvirus entry mediator; LIGHT; LIGHTherpesvirus entry mediator A; LTg; TNFSF14; TR2; tumor necrosis factor (ligand) superfamily, member 14; tumor necrosis factor ligand superfamily member 14; tumor necrosis factor receptor-like 2; tumor necrosis factor superfamily member LIGHT
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Additions must be completed within 15 minutes. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well.
  13.   For Cell Culture Supernate & Saliva Samples: Incubate at room temperature for 20 minutes. PROTECT FROM LIGHT.
    For Serum & Plasma Samples: Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  14. 50 µL Stop Solution
  15. Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
