Human Osteopontin (OPN) Quantikine ELISA Kit

Catalog # Availability Size / Price Qty
Control Products Available

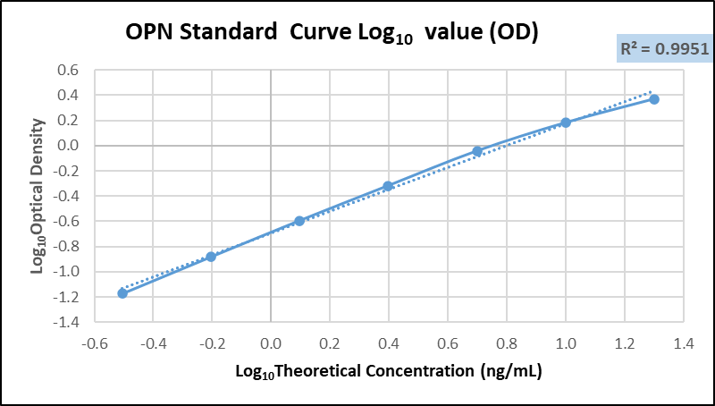

Human Osteopontin/OPN ELISA Standard Curve
2 Images
Product Details
Citations (44)
Supplemental Products

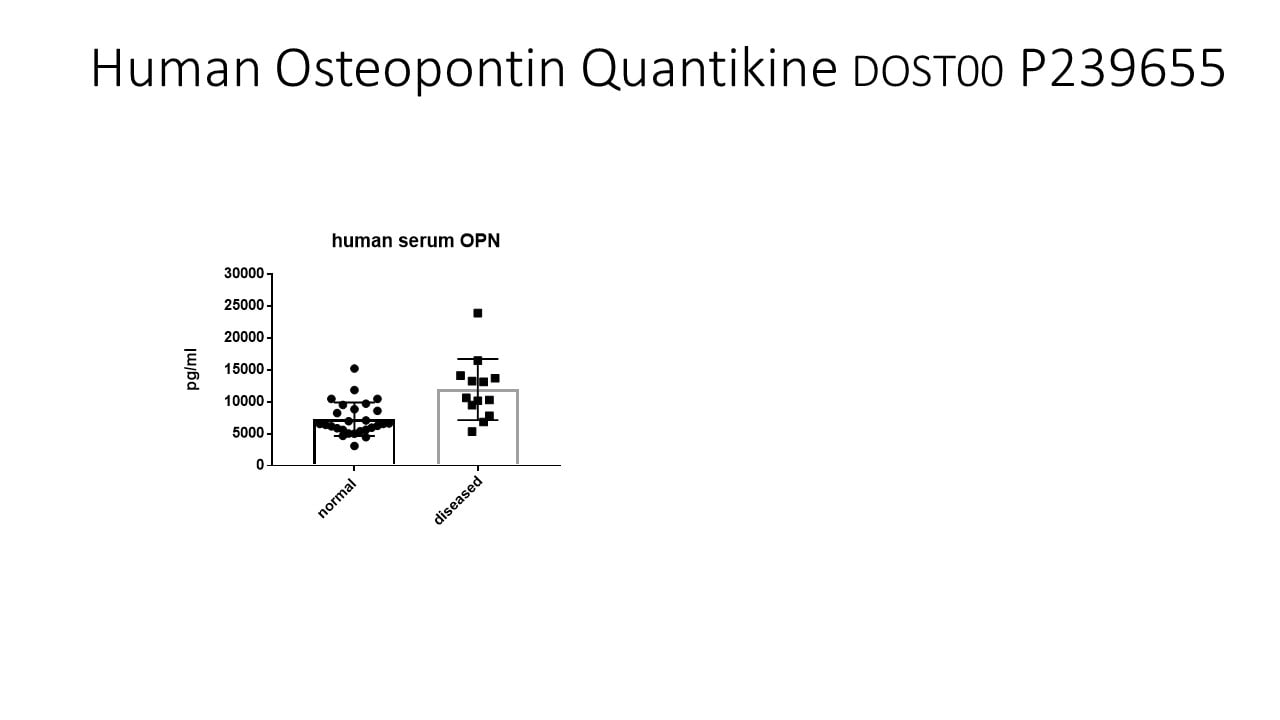

Reviews (1)

Human Osteopontin (OPN) Quantikine ELISA Kit Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Assay Length
4.5 hours
Sample Type & Volume Required Per Well
Cell Culture Supernates (50 uL), EDTA Plasma (10 uL), Heparin Plasma (10 uL), Urine (50 uL), Human Milk (50 uL)
0.024 ng/mL
Assay Range
0.3 - 20 ng/mL (Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Urine, Human Milk)
Natural and recombinant human Osteopontin
< 0.5% cross-reactivity observed with available related molecules.< 50% cross-species reactivity observed with species tested.
No significant interference observed with available related molecules.

Product Summary

The Quantikine Human Osteopontin Immunoassay is a 4.5 hour solid-phase ELISA designed to measure human Osteopontin in cell culture supernates, plasma, urine, and human milk. It contains NS0-expressed recombinant human Osteopontin and has been shown to accurately quantitate the recombinant factor. Results obtained using natural human Osteopontin showed linear curves that were parallel to the standard curves obtained using the Quantikine kit standards. These results indicate that this kit can be used to determine relative mass values for naturally occurring human Osteopontin.


Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Urine, Human Milk

Intra-Assay Precision Inter-Assay Precision
Sample 1 2 3 1 2 3
n 20 20 20 40 40 40
Mean 2.3 4.9 9.3 2.36 4.81 9.17
Standard Deviation 0.092 0.126 0.267 0.155 0.274 0.499
CV% 4 2.6 2.9 6.6 5.7 5.4


The recovery of Osteopontin spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Cell Culture Media (n=4) 104 86-113
EDTA Plasma (n=4) 102 92-114
Heparin Plasma (n=4) 101 95-112


To assess the linearity of the assay, samples containing and/or spiked with high concentrations of Osteopontin were serially diluted with the Calibrator Diluent to produce samples with values within the dynamic range of the assay.

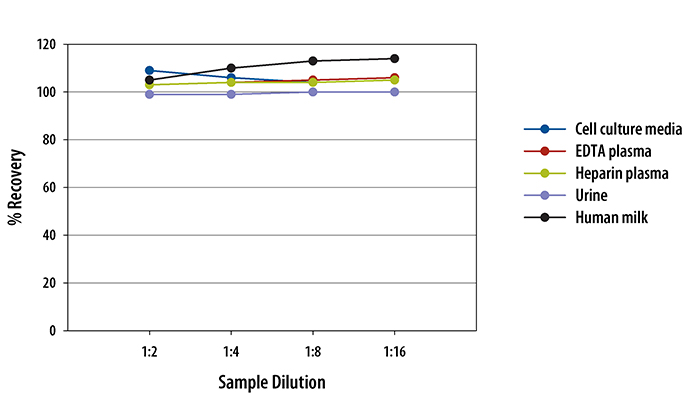

Human Osteopontin/OPN ELISA Linearity

Data Examples

Human Osteopontin/OPN ELISA Standard Curve

Product Datasheets

Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Osteopontin/OPN

Osteopontin (OPN), also known as bone sialoprotein (BSP), is a secreted SIBLING family protein that can be variably modified by O- and N-glycosylation, sulfation, phosphorylation, and transglutamination. OPN is widely expressed and is prominent in mineralized tissues. It inhibits bone mineralization and kidney stone formation and promotes inflammation, cell ad¬hesion, and migration. Its expression is upregulat¬ed during inflammation, obesity, atherosclerosis, cancer, and tissue damage and contributes to the pathophysiology of these conditions. The central region of OPN contains RGD and non-RGD binding sites for multiple integrins. Adjacent to the RGD motif is the sequence SLAYGLR (SVVYGLR in human) which serves as a cryptic binding site for additional integrins: it is masked in full length OPN but is exposed following OPN cleavage by multiple proteases in tumors and sites of tissue injury.

Long Name:
Secreted Phosphoprotein 1 [BNSP]
Entrez Gene IDs:
6696 (Human); 20750 (Mouse); 25353 (Rat); 281499 (Bovine)
Alternate Names:
BNSP; Bone sialoprotein 1; Eta-1; MGC110940; Nephropontin; OPN; Osteopontin; secreted phosphoprotein 1bone sialoprotein I, early T-lymphocyteactivation 1); secreted phosphoprotein-1 (osteopontin, bone sialoprotein); Spp1; SPP-1; SPP1/CALPHA1 fusion; Urinary stone protein; uropontin
⚠ WARNING: This product can expose you to chemicals including N,N-Dimethylforamide, which is known to the State of California to cause cancer. For more information, go to

Assay Procedure

Refer to the product for complete assay procedure.

Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
  1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
  2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

  3. 100 µL Assay Diluent
  4.   Add 100 µL of Assay Diluent to each well.

  5. 50 µL Standard, Control, or Sample
  6.   Add 50 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 2 hours.
  7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

  8. 200 µL Conjugate
  9.   Add 200 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 2 hours.
  10.   Aspirate and wash 4 times.

  11. 200 µL Substrate Solution
  12.   Add 200 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

  13. 50 µL Stop Solution
  14.   Add 50 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.
