Human Phospho-PDGF R alpha (Y742) Antibody

(2 citations)
  • Species Reactivity
    Human
  • Specificity
    Detects human PDGF R alpha when phosphorylated at Y742.
  • Source
    Polyclonal Rabbit IgG
  • Purification
    Antigen Affinity-purified
  • Immunogen
    Phosphopeptide containing human PDGF R alpha Y742 site
  • Formulation
    Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied as a 0.2 µm filtered solution in PBS.
  • Label
    Unconjugated
Applications
  •
    Recommended
    Concentration
    Sample
  • Western Blot
    0.5 µg/mL
    See below
  • Immunohistochemistry
    5-15 µg/mL
    Immersion fixed paraffin-embedded sections of human breast cancer tissue subjected to Antigen Retrieval Reagent-Basic (Catalog # CTS013)
Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.
Data Examples

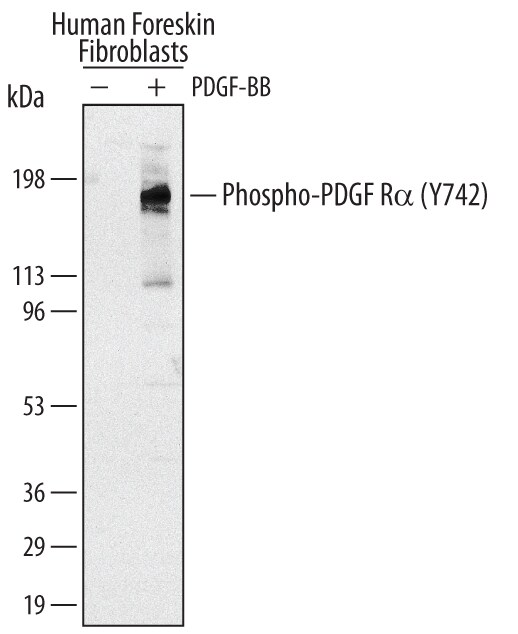

Detection of Human Phospho-PDGF R alpha (Y742) by Western Blot. Western blot shows lysates of human foreskin fibroblast untreated (-) or treated (+) with 100 ng/mL Recombinant Human PDGF-BB (Catalog # 220-BB) for 10 minutes. PVDF membrane was probed with 0.5 µg/mL of Human Phospho-PDGF R alpha (Y742) Antigen Affinity-purified Polyclonal Antibody (Catalog # AF2114), followed by HRP-conjugated Anti-Rabbit IgG Secondary Antibody (Catalog # HAF008). A specific band was detected for Phospho-PDGF R alpha (Y742) at approximately 190 kDa (as indicated). This experiment was conducted under reducing conditions and using Immunoblot Buffer Group 1.
Preparation and Storage
  • Reconstitution
    Reconstitute at 0.2 mg/mL in sterile PBS.
  • Shipping
    The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
  • Stability & Storage
    Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
    • 12 months from date of receipt, -20 to -70 °C as supplied.
    • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
    • 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Background: PDGF R alpha

PDGF is a major serum mitogen that can exist as a homo- or heterodimeric protein consisting of disulfide-linked PDGF-A and PDGF-B chains. The PDGF-AA, PDGF‑BB and PDGF-AB isoforms have been shown to bind to two distinct cell surface PDGF receptors with different affinities. Whereas PDGF R alpha binds all three PDGF isoforms with high affinity, PDGF R beta binds PDGF-BB and AB, but not PDGF-AA. Both PDGF R alpha and PDGF R beta are members of the class III subfamily of receptor tyrosine kinases (RTK) that also includes the receptors for M-CSF, SCF and Flt3 ligand. All class III RTKs are characterized by the presence of five immunoglobulin-like domains in their extracellular region and a split kinase domain in their intracellular region. PDGF binding induces receptor homo-and heterodimerization and signal transduction. The expression of the alpha and beta receptors is independently regulated in various cell types. Only PDGF R alpha is expressed in oligodendrocyte progenitor cells, mesothelial cell and liver endothelial cells. Soluble PDGF-R alpha has been detected in cell conditioned medium and human plasma. Recombinant soluble PDGF R alpha binds PDGF with high affinity and is a potent PDGF antagonist (1).

  • References:
    1. Heldin, C.H. and L. Claesson-Welsh (1994) Guidebook to Cytokines and Their Receptors, Nicola, N.A. (ed) Oxford University Press, New York, NY p. 202.
  • Long Name:
    Platelet-derived Growth Factor Receptor alpha
  • Entrez Gene IDs:
    5156 (Human); 18595 (Mouse)
  • Alternate Names:
    alpha-type platelet-derived growth factor receptor; CD140 antigen-like family member A; CD140a antigen; CD140a; EC 2.7.10; EC 2.7.10.1; MGC74795; PDGF R alpha; PDGFR alpha; PDGFR2; PDGFRA; PDGFRA/BCR fusion; PDGF-R-alpha; platelet-derived growth factor receptor, alpha polypeptide; rearranged-in-hypereosinophilia-platelet derived growth factor receptor alphafusion protein; RHEPDGFRA
Related Research Areas
Citations:

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

2 Citations: Showing 1 - 2
Filter your results:

Species
Applications
Sample Type
  1. Human cytomegalovirus glycoprotein complex gH/gL/gO uses PDGFR-? as a key for entry
    Authors: Y Wu, A Prager, S Boos, M Resch, I Brizic, M Mach, S Wildner, L Scrivano, B Adler
    PLoS Pathog., 2017;13(4):e1006281.
    Species: Human
    Sample Type: Cell Lysates
    Application: WB
  2. Neuropilin-1 regulates platelet-derived growth factor receptor signalling in mesenchymal stem cells.
    Authors: Ball SG, Bayley C, Shuttleworth CA, Kielty CM
    Biochem. J., 2010;427(1):29-40.
    Species: Human
    Sample Type: Whole Cells
    Application: ELISA Development
