Human sTfR Quantikine IVD ELISA Kit

For In Vitro Diagnostic Use.
(21 citations)
(1 Review)
  • Assay Type
    Solid Phase Sandwich ELISA
  • Format
    96-well strip plate
  • Assay Length
    2.5 hours
  • Sample Type & Volume Required Per Well
    Serum (20 uL), EDTA Plasma (20 uL), Heparin Plasma (20 uL), Citrate Plasma (20 uL)
  • Sensitivity
    0.5 nmol/L
  • Assay Range
    3.0 - 80 nmol/L (Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma)
  • Specificity
    Measures human sTfR levels in various samples
  • Cross-reactivity
    < 0.5% cross-reactivity observed with available related molecules.Cross-species reactivity not tested.
  • Interference
    Interference observed with other substances.
Product Summary
The Quantikine IVD Human sTfR Immunoassay is designed for the quantitative determination of soluble transferrin receptor (sTfR) concentrations in human serum and plasma as an aid in the diagnosis of Iron-Deficiency Anemia (IDA), especially for the differential diagnosis of IDA and Anemia of Chronic Disease (ACD). For In Vitro Diagnostic Use.

Intra-Assay Precision (Precision within an assay) Three samples of known concentration were tested on one plate to assess intra-assay precision.
Inter-Assay Precision (Precision between assays) Three samples of known concentration were tested in separate assays to assess inter-assay precision.
Serum, EDTA Plasma, Heparin Plasma, Citrate Plasma
Intra-Assay Precision Inter-Assay Precision
Standard Deviation0.


The recovery of sTfR spiked to three different levels throughout the range of the assay in various matrices was evaluated.

Sample Type Average % Recovery Range %
Citrate Plasma (n=5) 112 105-121
EDTA Plasma (n=5) 103 97-112
Heparin Plasma (n=5) 106 101-112
Serum (n=5) 97 95-100

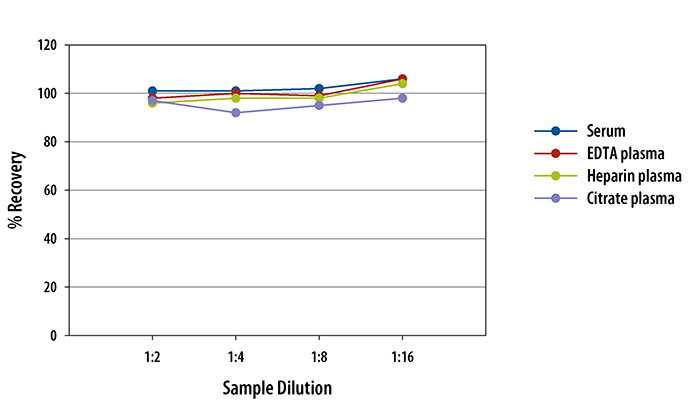

To assess the linearity of the assay, five samples containing high concentrations of sTfR were diluted with Specimen Diluent and evaluated.
Human sTfR Quantikine IVD ELISA Kit
Preparation and Storage
  • Storage
    Store the unopened product at 2 - 8 °C. Do not use past expiration date.
Background: TfR (Transferrin R)
Transferrin receptors are transmembrane, homodimeric proteins that play a role in iron transport, uptake, and storage. TfR is an essential receptor, found on almost all cell types, regulated by intracellular iron concentration, and has a high affiinity for transferrin. Soluble TfR (sTfR) arises from the proteolysis of TfR into monomers that can be measured in plasma and serum. TfR2 has limited tissue distribution (hepatocytes and enterocytes), is regulated by the cell cycle, and binds transferrin poorly.
    • Long Name
      Transferrin Receptor
    • Entrez Gene IDs
      7037 (Human); 22042 (Mouse); 64678 (Rat);
    • Alternate Names
      CD71 antigen; CD71; CD71TRFR; p90; T9; TfR (Transferrin R); TfR (TransferrinR); TfR; TFR1; TFRC; TR; transferrin receptor (p90, CD71); transferrin receptor protein 1; TRFR;
    Related Research Areas
    Assay Procedure
    Refer to the product for complete assay procedure.

    Bring all reagents and samples to room temperature before use. It is recommended that all samples, standards, and controls be assayed in duplicate.
    1.   Prepare all reagents, standard dilutions, and samples as directed in the product insert.
    2.   Remove excess microplate strips from the plate frame, return them to the foil pouch containing the desiccant pack, and reseal.

    3. 100 µL Assay Diluent
    4.   Add 100 µL of Assay Diluent to each well.

    5. 20 µL Standard, Control, or Sample
    6.   Add 20 µL of Standard, control, or sample to each well. Cover with a plate sealer, and incubate at room temperature for 1 hour.
    7.   Aspirate each well and wash, repeating the process 3 times for a total of 4 washes.

    8. 100 µL Conjugate
    9.   Add 100 µL of Conjugate to each well. Cover with a new plate sealer, and incubate at room temperature for 1 hour.
    10.   Aspirate and wash 4 times.

    11. 100 µL Substrate Solution
    12.   Add 100 µL Substrate Solution to each well. Incubate at room temperature for 30 minutes. PROTECT FROM LIGHT.

    13. 100 µL Stop Solution
    14.   Add 100 µL of Stop Solution to each well. Read at 450 nm within 30 minutes. Set wavelength correction to 540 nm or 570 nm.

    R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.
