TIM-1 (T cell-immunoglobulin-mucin; also known as KIM-1 and HAVCR) is a 100 kDa, type I transmembrane glycoprotein member of the TIM family of immunoglobulin superfamily molecules (1-3). This gene family is involved in the regulation of Th1 and Th2-cell-mediated immunity. Human TIM-1 is synthesized as a 359 amino acid (aa) precursor that contains a 20 aa signal sequence, a 270 aa extracellular domain (ECD), a 21 aa transmembrane segment and a 48 aa cytoplasmic domain (4-6). The ECD contains oneV-type Ig-like domain and a mucin region characterized by multiple PTTTTL motifs. The mucin region undergoes extensive O-linked glycosylation. The TIM-1 gene is highly polymorphic and undergoes alternate splicing (1). For instance, the presence of a six aa sequence (MTTTVP) at position #137 of the mature molecule is associated with protection from atopy in people with a history of hepatitis A (7, 8). There are two cytoplasmic alternate splice forms of TIM‑1. One is a long (359 aa) kidney form termed TIM-1b, and one is a short (334 aa) liver form termed TIM-1a. Both are identical through the first 323 aa of their precursors. TIM-1b contains a tyrosine phosphorylation motif that is not present in 1a (6). TIM-1 is also known to circulate as a soluble form. Constitutive cleavage by an undefined MMP (possibly ADAM33) releases an 85-90 kDa soluble molecule (6). The ECD of human TIM-1 is 50% and 43% aa identical to mouse and canine TIM-1 ECD, respectively. The only two reported ligands for TIM-1 are TIM-4 and the hepatitis A virus (4, 9). However, others are believed to exist, and based on the ligand for TIM-3, one may well be an S-type lectin (10). TIM-1 ligation induces T cell proliferation and promotes cytokine production (1, 10).
Human TIM-1/KIM-1/HAVCR Antibody [Biotin]
R&D Systems | Catalog # BAF1750
Scientific images may be resized, cropped, or adjusted for brightness or contrast for presentation purposes. These updates are limited to presentation and do not affect the underlying scientific interpretation of the data. Where available, additional source data may be provided upon request.
Key Product Details
Species Reactivity
Validated:
Cited:
Applications
Validated:
Cited:
Label
Antibody Source
Product Specifications
Immunogen
Ser21-Thr288
Accession # Q96D42
Specificity
Clonality
Host
Isotype
Scientific Data Images for Human TIM-1/KIM-1/HAVCR Antibody [Biotin]

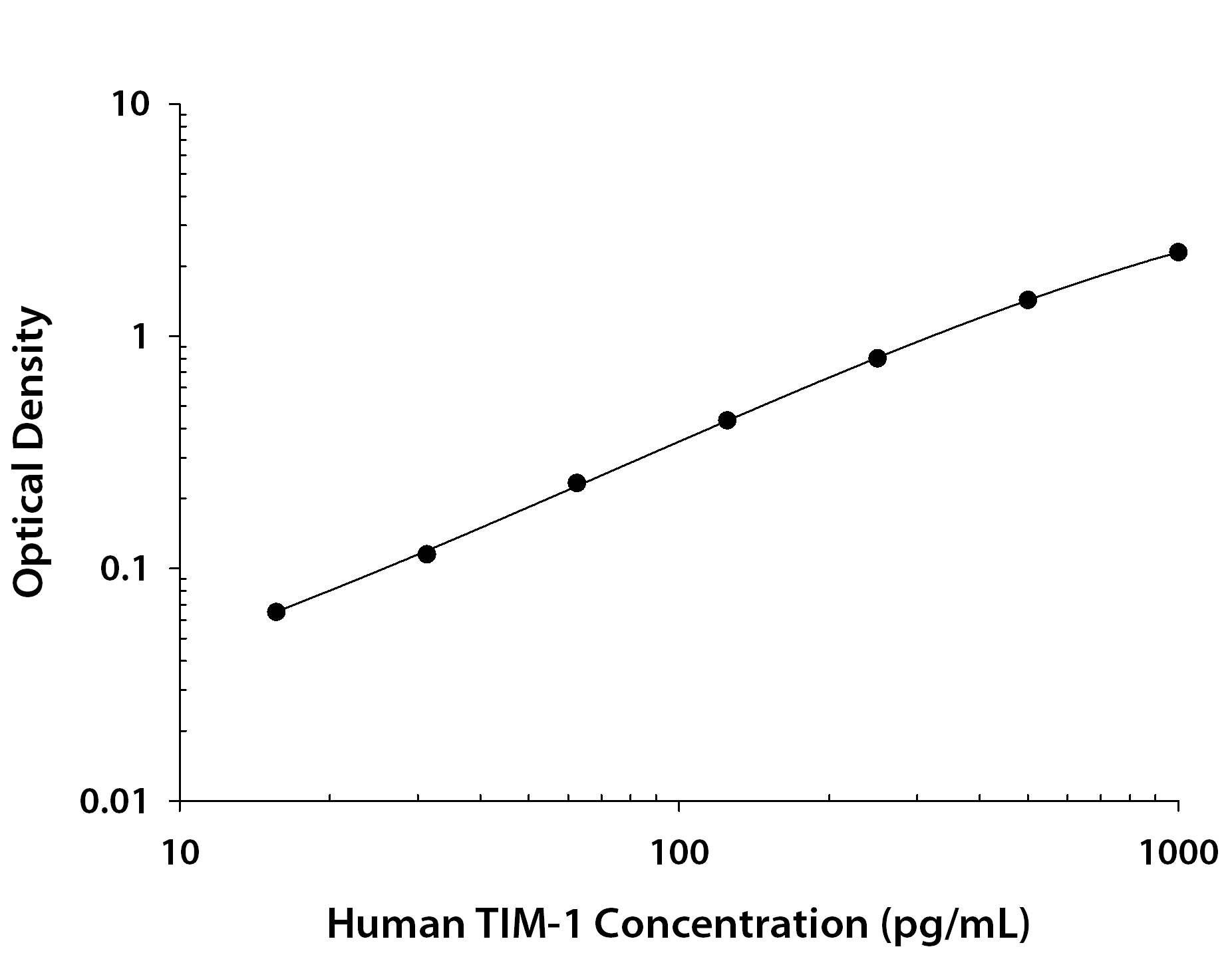

Human TIM-1/KIM-1/HAVCR ELISA Standard Curve
Recombinant Human TIM‑1/KIM‑1/HAVCR His-tag (Catalog # 1750-TM) was serially diluted and captured by Mouse Anti-Human TIM‑1/KIM‑1/HAVCR Monoclonal Antibody (Catalog # MAB17502) coated on a Clear Polystyrene Microplate (Catalog # DY990). Goat Anti-Human TIM‑1/KIM‑1/HAVCR Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1750) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998)Human TIM-1 / KIM-1 / HAVCR ELISA Standard Curve
Recombinant Human TIM‑1/KIM‑1/HAVCR His-tag (Catalog # 1750-TM) was serially diluted and captured by Mouse Anti-Human TIM‑1/KIM‑1/HAVCR Monoclonal Antibody (Catalog # MAB17502) coated on a Clear Polystyrene Microplate (Catalog # DY990). Goat Anti-Human TIM‑1/KIM‑1/HAVCR Antigen Affinity-purified Polyclonal Antibody (Catalog # AF1750) was biotinylated and incubated with the protein captured on the plate. Detection of the standard curve was achieved by incubating Streptavidin-HRP (Catalog # DY998)Applications for Human TIM-1/KIM-1/HAVCR Antibody [Biotin]
Western Blot
Sample: Recombinant Human TIM‑1/KIM‑1/HAVCR (Catalog # 1750-TM)
Human TIM-1/KIM-1/HAVCR Sandwich Immunoassay
Reviewed Applications
Read 1 review rated 4 using BAF1750 in the following applications:
Formulation, Preparation, and Storage
Purification
Reconstitution
Reconstitute at 0.2 mg/mL in sterile PBS.
Formulation
Shipping
Stability & Storage
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: TIM-1/KIM-1/HAVCR
References
- Meyers, J.H. et al. (2005) Trends Mol. Med. 11:1471.
- Kuchroo, V.K. et al. (2003) Nat. Rev. Immunol. 3:454.
- Mariat, C. et al. (2005) Phil. Trans. R. Soc. B 360:1681.
- Feigelstock, D. et al. (1998) J. Virol. 72:6621.
- Ichimura, T. et al. (1998) J. Biol. Chem. 273:4135.
- Bailly, V. et al. (2002) J. Biol. Chem. 277:39739.
- Umetsu, D.T. et al. (2005) J. Pediatr. Gastroenterol. Nutr. 40:S43.
- Gao, P-S. et al. (2005) J. Allergy Clin. Immunol. 115:982.
- Zhu, C. et al. (2005) Nat. Immunol. 6:1245.
- Meyers, J.H. et al. (2005) Nat. Immunol. 6:455.
Long Name
Alternate Names
Gene Symbol
UniProt
Additional TIM-1/KIM-1/HAVCR Products
Product Documents for Human TIM-1/KIM-1/HAVCR Antibody [Biotin]
Certificate of Analysis
To download a Certificate of Analysis, please enter a lot or batch number in the search box below.
Note: Certificate of Analysis not available for kit components.
Product Specific Notices for Human TIM-1/KIM-1/HAVCR Antibody [Biotin]
This product is covered by one or more of the following US Patents 7,300,652; 7,041,290; 6,664,385 and other US and foreign patents pending or issued.
For research use only
