Human TLR7 Alexa Fluor® 700-conjugated Antibody

Catalog # Availability Size / Price Qty
Detection of TLR7 in Ramos Human Cell Line by Flow Cytometry.
1 Image
Product Details

Human TLR7 Alexa Fluor® 700-conjugated Antibody Summary

Species Reactivity
Detects human TLR7 in direct ELISAs.
Monoclonal Mouse IgG2A Clone # 533707
Protein A or G purified from hybridoma culture supernatant
E. coli-derived recombinant human TLR7
Accession # Q9NYK1
Supplied in a saline solution containing BSA and Sodium Azide.
Alexa Fluor 700 (Excitation= 675-700 nm, Emission= 723 nm)


Recommended Concentration
Intracellular Staining by Flow Cytometry
0.25-1 µg/106 cells
See below

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Data Example

Intracellular Staining by Flow Cytometry Detection of TLR7 antibody in Ramos Human Cell Line antibody by Flow Cytometry. View Larger

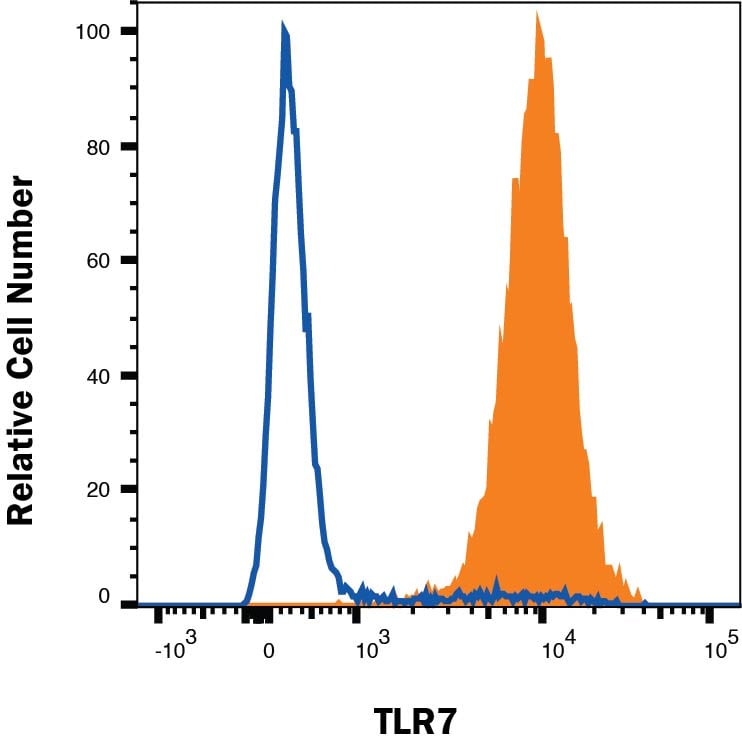

Detection of TLR7 in Ramos Human Cell Line by Flow Cytometry. Ramos human Burkitt's lymphoma cell line was stained with Mouse Anti-Human TLR7 Alexa Fluor® 700-conjugated Monoclonal Antibody (Catalog # IC5875N, filled histogram) or isotype control antibody (Catalog # IC003N, open histogram). To facilitate intracellular staining, cells were fixed with Flow Cytometry Fixation Buffer (Catalog # FC004) and permeabilized with Flow Cytometry Permeabilization/Wash Buffer (Catalog # FC005). View our protocol for Staining Intracellular Molecules.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Protect from light. Do not freeze.
  • 12 months from date of receipt, 2 to 8 °C as supplied.

Background: TLR7

Toll-like receptor 7 (TLR7) is a 120 kDa (predicted, unglycosylated) type I transmembrane glycoprotein and member of the Toll-like receptor family. Human TLR7 is synthesized as a 1049 amino acid (aa) precursor that contains a 26 aa signal sequence, an 803 aa extracellular domain (ECD), a 21 aa transmembrane sequence, and a 189 aa cytoplasmic domain. Mature human TLR7 is 81% aa identical to mature mouse TLR7. TLR7 is detected in brain, placenta, spleen, stomach, small intestine, lung, and in plasmacytoid pre-dendritic cells. Functionally, TLR7 participates in the innate immune response to microbial agents.

Long Name
Toll-like Receptor 7
Entrez Gene IDs
51284 (Human); 170743 (Mouse); 317468 (Rat)
Alternate Names
TLR7; toll-like receptor 7
