Human TREM-1 DuoSet ELISA

Catalog # Availability Size / Price Qty
Ancillary Products Available
Human TREM-1 ELISA Standard Curve
1 Image
Product Details
Citations (14)
Supplemental Products
Reviews (2)

Human TREM-1 DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Sample Volume Required
100 µL
Assay Range
93.8 - 6,000 pg/mL
Sufficient Materials
For fifteen 96-well plates*
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant human TREM-1. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.

Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 3 (5 plates): (Catalog # DY009) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 3.

Normal Goat Serum: (Catalog # DY005)


The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY004), or 5% Tween 20 in PBS, 7.2-7.4, 0.2 μm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Normal Goat Serum: (Catalog # DY005)


Scientific Data

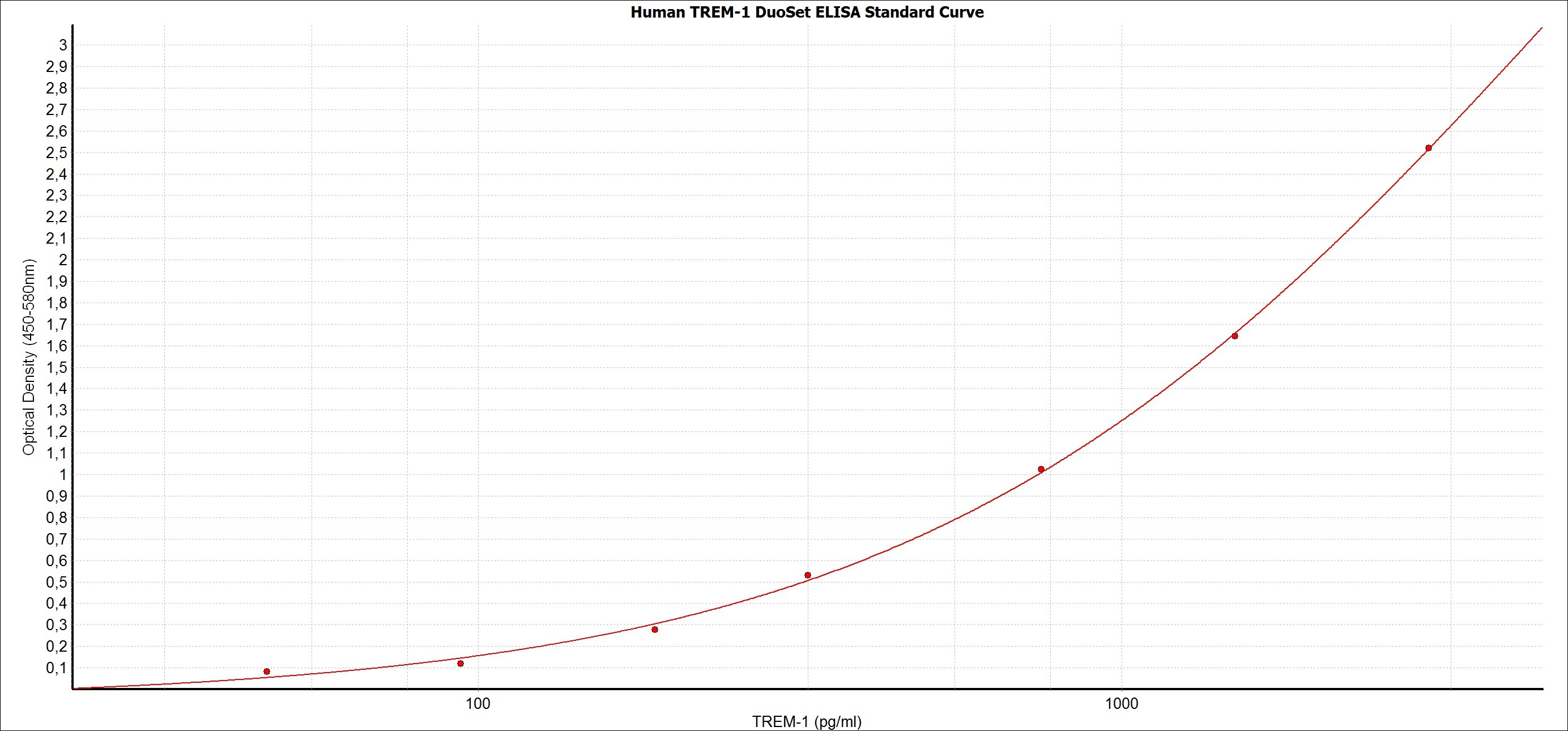

Human TREM-1 ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TREM-1

The TREM family of receptors regulates the activity of various cell types of the immune system including neutrophils, monocyte/macrophages, microglia, and dendritic cells. The receptors are members of the immunoglobulin superfamily, characterized structurally by a single V-set immunoglobulin (Ig) domain and a short cytoplasmic tail. TREMs associate with the DAP12 signal adapter, an immunoreceptor tyrosine-based activation motif- (ITAM)-containing protein that is phosphorylated and transduces signals when activated.

Long Name:
Triggering Receptor Expressed on Myeloid Cells 1
Entrez Gene IDs:
54210 (Human); 58217 (Mouse)
Alternate Names:
CD354 antigen; CD354; TREM1; TREM-1; TREM-1Triggering receptor expressed on monocytes 1; triggering receptor expressed on myeloid cells 1; triggering-receptor TREM1

Assay Procedure


Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.

  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.

  3. Block plates by adding 300 μL of Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.

  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent with NGS, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Human TREM-1 DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

14 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Circulating sTREM-1 as a predictive biomarker of pediatric multisystemic inflammatory syndrome (MIS-C)
    Authors: GS Gonçalves, S Correa-Sil, Y Zheng, I Avelar, MM Montenegro, AEF Ferreira, V Bain, TT Fink, P Suguita, C Astley, L Lindoso, F Martins, OM Matsuo, JCOA Ferreira, I Firigato, F de Toledo, M Fernanda B, C Artur A da, M Carneiro-S, HHS Marques, P Palmeira
    Cytokine, 2023;161(0):156084.
    Species: Human
    Sample Types: Serum
  2. Soluble triggering receptor expressed on myeloid cells-1 (sTREM-1) and other inflammatory mediators in malaria by Plasmodium vivax during enteroparasites coinfection
    Authors: MCS de Jesus, JHR Barbosa, RAO Menezes, MDSM Gomes, LGS Bomfim, TS Pimenta, ARS Baptista, RLD Machado, TR de Moura, LM Storti-Mel
    PLoS ONE, 2022;17(6):e0270007.
    Species: Human
    Sample Types: Serum
  3. Elevated serum TREM-1 is associated with periodontitis and disease activity in rheumatoid arthritis
    Authors: N Inanc, G Mumcu, M Can, M Yay, A Silbereise, D Manoil, H Direskenel, N Bostanci
    Scientific Reports, 2021;11(1):2888.
    Species: Human
    Sample Types: Serum
  4. sTREM-1 assessment as a diagnostic biomarker for suspected acute appendicitis in children
    Authors: TT Klein, E Kohn, B Klin, T Ziv-Baran, E Kozer, M Berkovitch, I Abu Kishk
    Asian journal of surgery, 2021;0(0):.
    Species: Human
    Sample Types: Urine
  5. Elevated Plasma Soluble Triggering Receptor Expressed on Myeloid Cells-1 Level in Patients with Acute Coronary Syndrome (ACS): A Biomarker of Disease Severity and Outcome
    Authors: S Shiber, V Kliminski, K Orvin, I Sagy, M Vaturi, R Kornowski, M Drescher, Y Molad
    Mediators of Inflammation, 2021;2021(0):8872686.
    Species: Human
    Sample Types: Plasma
  6. sTREM-1 Predicts Disease Severity and Mortality in COVID-19 Patients: Involvement of Peripheral Blood Leukocytes and MMP-8 Activity
    Authors: PV da Silva-N, JCS de Carvalh, VE Pimentel, MM Pérez, DM Toro, TFC Fraga-Silv, CA Fuzo, CNS Oliveira, LC Rodrigues, JGM Argolo, I Carmona-Ga, NT Neto, COS Souza, TM Fernandes, VAF Bastos, AM Degiovani, LF Constant, FM Ostini, MR Feitosa, RS Parra, FC Vilar, GG Gaspar, JJR da Rocha, O Feres, FG Frantz, RF Gerlach, SR Maruyama, EMS Russo, AL Viana, APM Fernandes, IKFM Santos, VLD Bonato, AL Boechat, A Malheiro, RT Sadikot, M Dias-Baruf, CRB Cardoso, LH Faccioli, CA Sorgi, On Behalf
    Viruses, 2021;13(12):.
    Species: Human
    Sample Types: Plasma
  7. Diagnostic value of serum soluble triggering expressed receptor on myeloid cells 1 (sTREM-1) in suspected sepsis: a meta-analysis
    Authors: W Chang, F Peng, SS Meng, JY Xu, Y Yang
    BMC Immunol., 2020;21(1):2.
    Species: Human
    Sample Types: Serum
  8. Salivary Biomarkers of Oral Inflammation Are Associated With Cardiovascular Events and Death Among Kidney Transplant Patients
    Authors: F Ortiz, KM Nylund, H Ruokonen, JH Meurman, J Furuholm, N Bostanci, T Sorsa
    Transplant. Proc., 2020;0(0):.
    Species: Human
    Sample Types: Saliva
  9. Elevated plasma level of soluble triggering receptor expressed on myeloid cells-1 is associated with inflammation activity and is a potential biomarker of thrombosis in primary antiphospholipid syndrome
    Authors: Y Edel, V Kliminski, E Pokroy-Sha, S Oren, A Dortort La, Y Pri-Paz Ba, M Egbaria, Y Molad
    Arthritis Res. Ther., 2019;21(1):10.
    Species: Human
    Sample Types: Plasma
  10. Oxidized Low-Density Lipoprotein (Ox-LDL) and Triggering Receptor-Expressed Myeloid Cell (TREM-1) Levels Are Associated with Cardiometabolic Risk in Nonobese, Clinically Healthy, and Young Adults
    Authors: CMP Vázquez, JO Costa, LGS Bomfim, LV Pires, DG da Silva, KF Fukutani, AR de Jesus, N de Jesus S, G de Jesus S, TR de Moura, K Barbosa
    Oxid Med Cell Longev, 2019;2019(0):7306867.
    Species: Human
    Sample Types: Serum
  11. Pleiotropy of ABO gene: correlation of rs644234 with E-selectin and lipid levels
    Authors: AA Arguinano, NC Ndiaye, C Masson, S Visvikis-S
    Clin. Chem. Lab. Med., 2018;0(0):.
    Species: Human
    Sample Types:
  12. In vivo attenuation and genetic evolution of a ST247-SCCmecI MRSA clone after 13 years of pathogenic bronchopulmonary colonization in a patient with cystic fibrosis: implications of the innate immune response.
    Authors: Lopez-Collazo E, Jurado T, de Dios Caballero J, Perez-Vazquez M, Vindel A, Hernandez-Jimenez E, Tamames J, Cubillos-Zapata C, Manrique M, Tobes R, Maiz L, Canton R, Baquero F, Del Campo R
    Mucosal Immunol, 2015;8(2):362-71.
    Species: Human
    Sample Types: Cell Culture Supernates
  13. Role of MMPs in orchestrating inflammatory response in human monocytes via a TREM-1-PI3K-NF-kappaB pathway.
    J. Cell. Sci., 2012;91(6):933-45.
    Species: Human
    Sample Types: Cell Culture Supernates
  14. Combinations of Host Biomarkers Predict Mortality among Ugandan Children with Severe Malaria: A Retrospective Case-Control Study.
    Authors: Erdman LK, Dhabangi A, Musoke C, Conroy AL, Hawkes M, Higgins S, Rajwans N, Wolofsky KT, Streiner DL, Liles WC, Cserti-Gazdewich CM, Kain KC
    PLoS ONE, 2011;6(2):e17440.
    Species: Human
    Sample Types: Plasma


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Reviews for Human TREM-1 DuoSet ELISA

Average Rating: 4.5 (Based on 2 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Human TREM-1 DuoSet ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

Human TREM-1 DuoSet ELISA
By Anonymous on 11/19/2021
Sample Tested: Serum

Human TREM-1 DuoSet ELISA
By Jonatan Dereke on 08/10/2020
Sample Tested: EDTA Plasma

We ran human EDTA-plasma samples at a 1:2 dilution with decent precision with this assay.
