LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488]

Novus Biologicals | Catalog # NBP2-25183AF488

Clone H4A3 was used by HLDA to establish CD designation.
Novus Biologicals
100% Guarantee

Key Product Details

Species Reactivity

Human, Mouse, Primate

Applications

Immunohistochemistry, Immunohistochemistry-Paraffin, Immunohistochemistry-Frozen, Western Blot, Flow Cytometry, Immunocytochemistry/ Immunofluorescence, CyTOF-ready

Label

Alexa Fluor 488 (Excitation = 488 nm, Emission = 515-545 nm)

Antibody Source

Monoclonal Mouse IgG1 Clone # H4A3
View all LAMP-1/CD107a Primary Antibodies »

Product Specifications

Immunogen

Human PBMC

Reactivity Notes

Please note that this antibody is reactive to Mouse and derived from the same host, Mouse. Mouse-On-Mouse blocking reagent may be needed for IHC and ICC experiments to reduce high background signal. You can find these reagents under catalog numbers PK-2200-NB and MP-2400-NB. Please contact Technical Support if you have any questions.

Marker

Late Endosome Marker

Specificity

The mouse monoclonal antibody H4A3 recognizes CD107a, an approximately 100-120 kDa glycoprotein expressed mainly on lysosomal, but also on the plasma membrane.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG1

Scientific Data Images for LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488]

Flow Cytometry: LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488] [NBP2-25183AF488] - An intracellular stain was performed on U-87 cells with LAMP-1/CD107a Antibody (H4A3) NBP2-25183AF488 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 488.
Flow Cytometry: LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488] [NBP2-25183AF488] - An intracellular stain was performed on A431 cells with LAMP-1/CD107a Antibody [H4A3] NBP2-25183AF488 (blue) and a matched isotype control (orange). Cells were fixed with 4% PFA and then permeabilized with 0.1% saponin. Cells were incubated in an antibody dilution of 5 ug/mL for 30 minutes at room temperature. Both antibodies were conjugated to Alexa Fluor 488.
LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488]

LAMP-1/CD107a (H4A3) in U-2 OS Human Cell Line.

LAMP-1/CD107a (H4A3) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti-LAMP-1/CD107a (H4A3) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 488 (Catalog # NBP2-25183AF488) (green) at 5 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488]

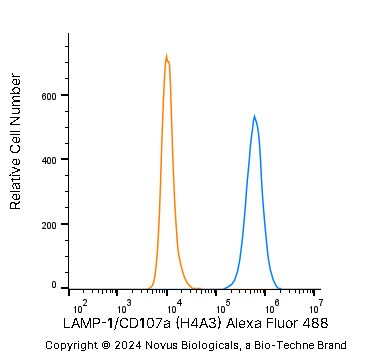

Detection of LAMP-1/CD107a (H4A3) in U-2 OS Human Cell Line by Flow Cytometry.

An intracellular stain was performed on U-2 OS human osteosarcoma cell line with Mouse anti-LAMP-1/CD107a (H4A3) Protein-G purified Monoclonal Antibody conjugated to Alexa Fluor® 488 (Catalog # NBP2-25183AF488, blue histogram) or matched control antibody (orange histogram) at 5 µg/mL for 30 minutes at RT.

Applications for LAMP-1/CD107a Antibody (H4A3) [Alexa Fluor® 488]

Application
Recommended Usage

CyTOF-ready

Optimal dilutions of this antibody should be experimentally determined.

Flow Cytometry

Optimal dilutions of this antibody should be experimentally determined.

Immunocytochemistry/ Immunofluorescence

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry-Frozen

Optimal dilutions of this antibody should be experimentally determined.

Immunohistochemistry-Paraffin

Optimal dilutions of this antibody should be experimentally determined.

Western Blot

Optimal dilutions of this antibody should be experimentally determined.
Application Notes
Optimal dilution of this antibody should be experimentally determined.

Spectra Viewer

Plan Your Experiments

Use our spectra viewer to interactively plan your experiments, assessing multiplexing options. View the excitation and emission spectra for our fluorescent dye range and other commonly used dyes.

Spectra Viewer
Spectra Viewer

Flow Cytometry Panel Builder

Bio-Techne Knows Flow Cytometry

Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.

Advanced Features

  • Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
  • Spillover Popups - Visualize the spectra of individual fluorochromes
  • Antigen Density Selector - Match fluorochrome brightness with antigen density
Build Your Panel Now
Flow Cytometry

Formulation, Preparation, and Storage

Purification

Protein A or G purified

Formulation

50mM Sodium Borate

Preservative

0.05% Sodium Azide

Concentration

Please see the vial label for concentration. If unlisted please contact technical services.

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C in the dark.

Background: LAMP-1/CD107a

LAMP-1 (lysosome-associated membrane protein 1), also known as CD107a (cluster of differentiation 107a), is a major component of lysosomal membranes that plays an important role in lysosomal biogenesis, autophagy, and cholesterol metabolism (1). LAMP-1 is a type I transmembrane glycoprotein that is expressed on plasma membranes and the membranes of endosomes, autolysosomes, and lysosomes (1,2). Additionally, LAMP-1/CD107a is a commonly used marker for natural killer (NK) cell degranulation (3). LAMP-1 and another lysosomal-associated membrane protein, LAMP-2, together make up about half of all lysosome membrane proteins (1). Additionally, LAMP-1 has a role in presenting carbohydrate ligands to selectins (2). Human LAMP-1 protein is comprised of 417 amino acids (aa) with a theoretical molecular weight of 44.8 kDa; however, glycosylation can increase the molecular weight upwards of 120 kDa (1, 4). Structurally, LAMP-1 protein contains a large luminal/extracellular domain (29-382 aa), a helical transmembrane domain (383-405 aa), and a short cytoplasmic tail (406-417 aa) (1,2). Additionally, the protein has many N- and O-linked glycosylation sites which helps with stability in the membrane (1,2).

LAMP-1 plays an important role in autophagy-mediated ATP-release during apoptosis where lysosomes containing intracellular ATP migrate to the plasma membrane and, during exocytosis, LAMP-1 is exposed to the cell surface (5). Studies have found that knockdown of LAMP-1 blocks the ATP release from the cell (5). Furthermore, an absence of LAMP-1 and LAMP-2 leads to an accumulation of lysosomal cholesterol (6). Lysosomal membrane dysfunction or defects has also been associated with disease development (6,7). For example, one feature of pancreatitis is autophagy impairment which is caused by lysosomal dysfunction and a corresponding decrease in lysosomal-membrane associated proteins LAMP-1 and LAMP-2 (7).

References

1. Eskelinen E. L. (2006). Roles of LAMP-1 and LAMP-2 in lysosome biogenesis and autophagy. Molecular aspects of medicine, 27(5-6), 495-502. https://doi.org/10.1016/j.mam.2006.08.005

2. Cheng, X. T., Xie, Y. X., Zhou, B., Huang, N., Farfel-Becker, T., & Sheng, Z. H. (2018). Revisiting LAMP1 as a marker for degradative autophagy-lysosomal organelles in the nervous system. Autophagy, 14(8), 1472-1474. https://doi.org/10.1080/15548627.2018.1482147

3. Krzewski, K., & Coligan, J. E. (2012). Human NK cell lytic granules and regulation of their exocytosis. Frontiers in immunology, 3, 335. https://doi.org/10.3389/fimmu.2012.00335

4. Uniprot (P11279)

5. Wang, Y., Martins, I., Ma, Y., Kepp, O., Galluzzi, L., & Kroemer, G. (2013). Autophagy-dependent ATP release from dying cells via lysosomal exocytosis. Autophagy, 9(10), 1624-1625. https://doi.org/10.4161/auto.25873

6. Schwake, M., Schr0der, B., & Saftig, P. (2013). Lysosomal membrane proteins and their central role in physiology. Traffic (Copenhagen, Denmark), 14(7), 739-748. https://doi.org/10.1111/tra.12056

7. Gukovsky, I., Pandol, S. J., Mareninova, O. A., Shalbueva, N., Jia, W., & Gukovskaya, A. S. (2012). Impaired autophagy and organellar dysfunction in pancreatitis. Journal of gastroenterology and hepatology, 27 Suppl 2(Suppl 2), 27-32. https://doi.org/10.1111/j.1440-1746.2011.07004.x

Long Name

Lysosome-associated Membrane Glycoprotein 1

Alternate Names

CD107a, LAMP1

Gene Symbol

LAMP1
