B7-H2, also called B7RP-1 and ICOSL, is a 60 kDa member of the B7 family of immune costimulatory proteins. It is expressed on resting B cells, dendritic cells, monocytes, alveolar epithelial cells, and placental trophoblasts. B7-H2 interactions with ICOS promote lymphocyte differentiation and activation. Within the ECD, mouse B7-H2 shares 49% and 70% aa sequence identity with human and rat B7-H2, respectively.
Key Product Details
Species Reactivity
Mouse
Applications
Blockade of Receptor-ligand Interaction, Flow Cytometry, CyTOF-ready
Label
Unconjugated
Antibody Source
Monoclonal Rat IgG1 Clone # 987614
Loading...
Product Specifications
Immunogen
Mouse myeloma cell line NS0-derived recombinant mouse B7-H2
Met1-Lys279
Accession # Q9JHJ8
Met1-Lys279
Accession # Q9JHJ8
Specificity
Detects mouse B7-H2 in direct ELISAs.
Clonality
Monoclonal
Host
Rat
Isotype
IgG1
Scientific Data Images for Mouse B7-H2 Antibody (987614)
Detection of B7‑H2 in HEK293 Human Cell Line Transfected with Mouse B7-H2 and eGFP by Flow Cytometry.
HEK293 human embryonic kidney cell line transfected with either (A) mouse B7-H2 or (B) irrelevant transfectants and eGFP were stained with Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB1582) followed by Goat Anti-Rat IgG APC-conjugated Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

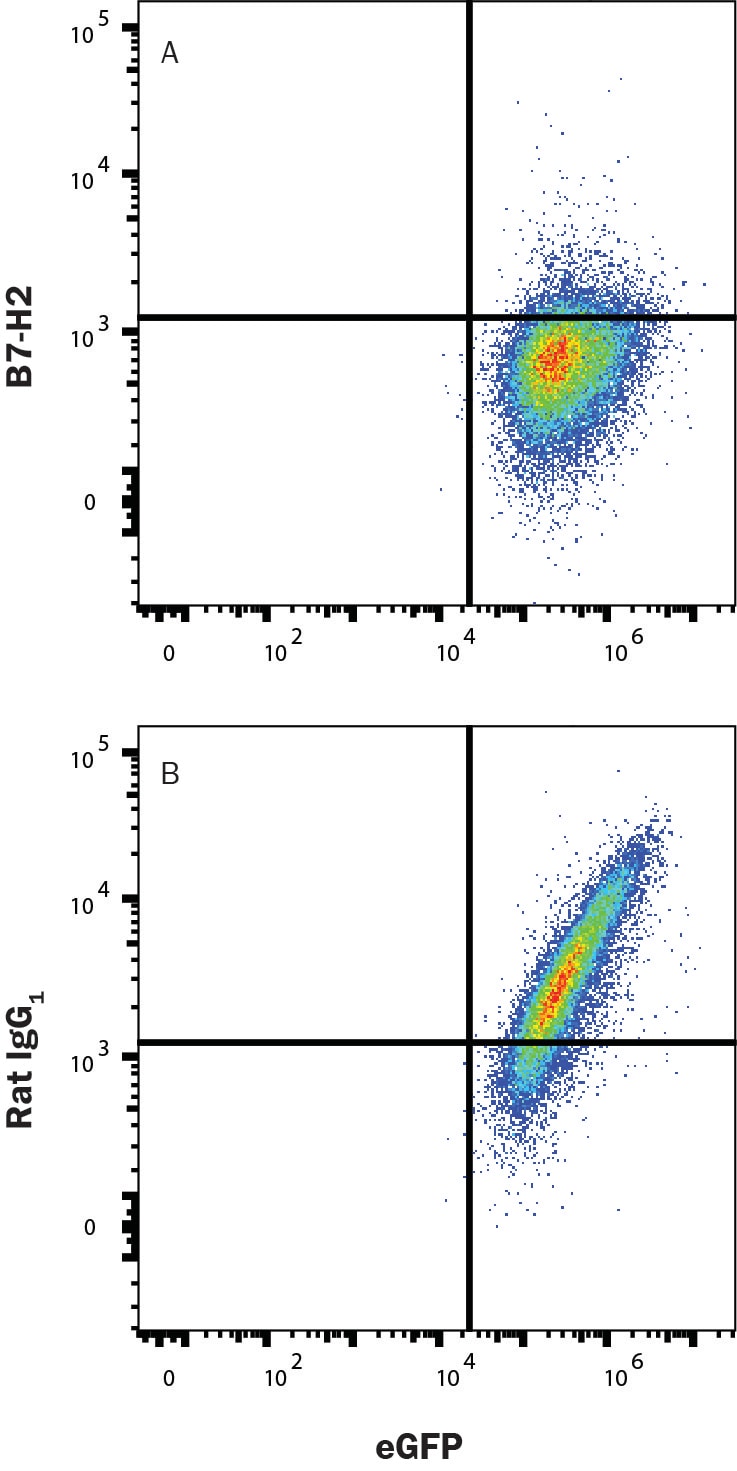

ICOS Binding to B7-H2-transfected HEK293 Cell Line is Blocked by Mouse B7-H2 Antibody.
In a functional flow cytometry test, Recombinant Mouse ICOS Fc Chimera (168-CS; 50 ng/mL) binds to HEK293 human embryonic kidney cell line transfected with mouse B7-H2. Binding is blocked by (A) 2.5 µg/mL of Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB1582) but not by (B) Rat IgG1 Isotype Control (MAB005) at 2.5 µg/mL. Protein binding was detected with APC-conjugated anti-Human IgG Fc Monoclonal Antibody (FAB110A).Applications for Mouse B7-H2 Antibody (987614)
Application
Recommended Usage
Blockade of Receptor-ligand Interaction
In a functional flow cytometry test, Recombinant Mouse ICOS Fc Chimera (50 ng/mL)
binds to HEK293 human embryonic kidney cell line transfected with mouse B7-H2. Binding is blocked by 2.5 μg/mL of Rat Anti-Mouse B7-H2 Monoclonal Antibody (Catalog # MAB1582).
CyTOF-ready
Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
Flow Cytometry
0.25 µg/106 cells
Sample: HEK293 Human cell line transfected with Mouse B7-H2 and eGFP
Sample: HEK293 Human cell line transfected with Mouse B7-H2 and eGFP
Flow Cytometry Panel Builder
Bio-Techne Knows Flow Cytometry
Save time and reduce costly mistakes by quickly finding compatible reagents using the Panel Builder Tool.
Advanced Features
- Spectra Viewer - Custom analysis of spectra from multiple fluorochromes
- Spillover Popups - Visualize the spectra of individual fluorochromes
- Antigen Density Selector - Match fluorochrome brightness with antigen density
Formulation, Preparation, and Storage
Purification
Protein A or G purified from hybridoma culture supernatant
Reconstitution
Reconstitute at 0.5 mg/mL in sterile PBS. For liquid material, refer to CoA for concentration.
Loading...
Formulation
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Shipping
Lyophilized product is shipped at ambient temperature. Liquid small pack size (-SP) is shipped with polar packs. Upon receipt, store immediately at the temperature recommended below.
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
- 12 months from date of receipt, -20 to -70 °C as supplied.
- 1 month, 2 to 8 °C under sterile conditions after reconstitution.
- 6 months, -20 to -70 °C under sterile conditions after reconstitution.
Calculators
Background: B7-H2
Long Name
B7 Homolog 2
Alternate Names
B7H2, B7RP-1, CD275, GL50, ICOSL, ICOSLG
Gene Symbol
ICOSLG
UniProt
