Mouse CCR7 Antibody

Catalog # Availability Size / Price Qty
CCR7 in Mouse Splenocytes.
3 Images
Product Details
Citations (9)
Supplemental Products

Mouse CCR7 Antibody Summary

Species Reactivity
Detects mouse CCR7.
Monoclonal Rat IgG2A Clone # 4B12
Protein A or G purified from hybridoma culture supernatant
RBC-2H3 cells expressing mouse CCR7
Accession # NP_031745
Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose. *Small pack size (SP) is supplied either lyophilized or as a 0.2 µm filtered solution in PBS.
Endotoxin Level
<0.10 EU per 1 μg of the antibody by the LAL method.


Recommended Concentration
Flow Cytometry
0.25 µg/106 cells
See below
Spitzer, M. et al. (2015) Science 349: 1259425. Ready to be labeled using established conjugation methods. No BSA or other carrier proteins that could interfere with conjugation.
8-25 µg/mL
See below
Measured by its ability to neutralize CCL19/MIP‑3 beta -induced chemotaxis in the BaF3 mouse pro‑B cell line transfected with mouse CCR7. The Neutralization Dose (ND50) is typically 2-10 µg/mL in the presence of 25 ng/mL Recombinant Mouse CCL19/MIP‑3 beta.

Please Note: Optimal dilutions should be determined by each laboratory for each application. General Protocols are available in the Technical Information section on our website.

Scientific Data

Immunocytochemistry CCR7 antibody in Mouse Splenocytes by Immunocytochemistry (ICC). View Larger

CCR7 in Mouse Splenocytes. CCR7 was detected in immersion fixed non-stimulated mouse splenocytes using 25 µg/mL Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477) for 3 hours at room temperature. Cells were stained (red) and counterstained (green). View our protocol for Fluorescent ICC Staining of Non-adherent Cells.

Neutralization Chemotaxis Induced by CCL19/MIP‑3 beta  and Neutralization by Mouse CCR7 Antibody. View Larger

Chemotaxis Induced by CCL19/MIP‑3 beta and Neutralization by Mouse CCR7 Antibody. Recombinant Mouse CCL19/MIP-3 beta (Catalog # 440-M3) chemoattracts the BaF3 mouse pro-B cell line transfected with mouse CCR7 in a dose-dependent manner (orange line). The amount of cells that migrated through to the lower chemotaxis chamber was measured by Resazurin (Catalog # AR002). Chemotaxis elicited by Recombinant Mouse CCL19/MIP-3 beta (25 ng/mL) is neutralized (green line) by increasing concentrations of Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477). The ND50 is typically 2-10 µg/mL.

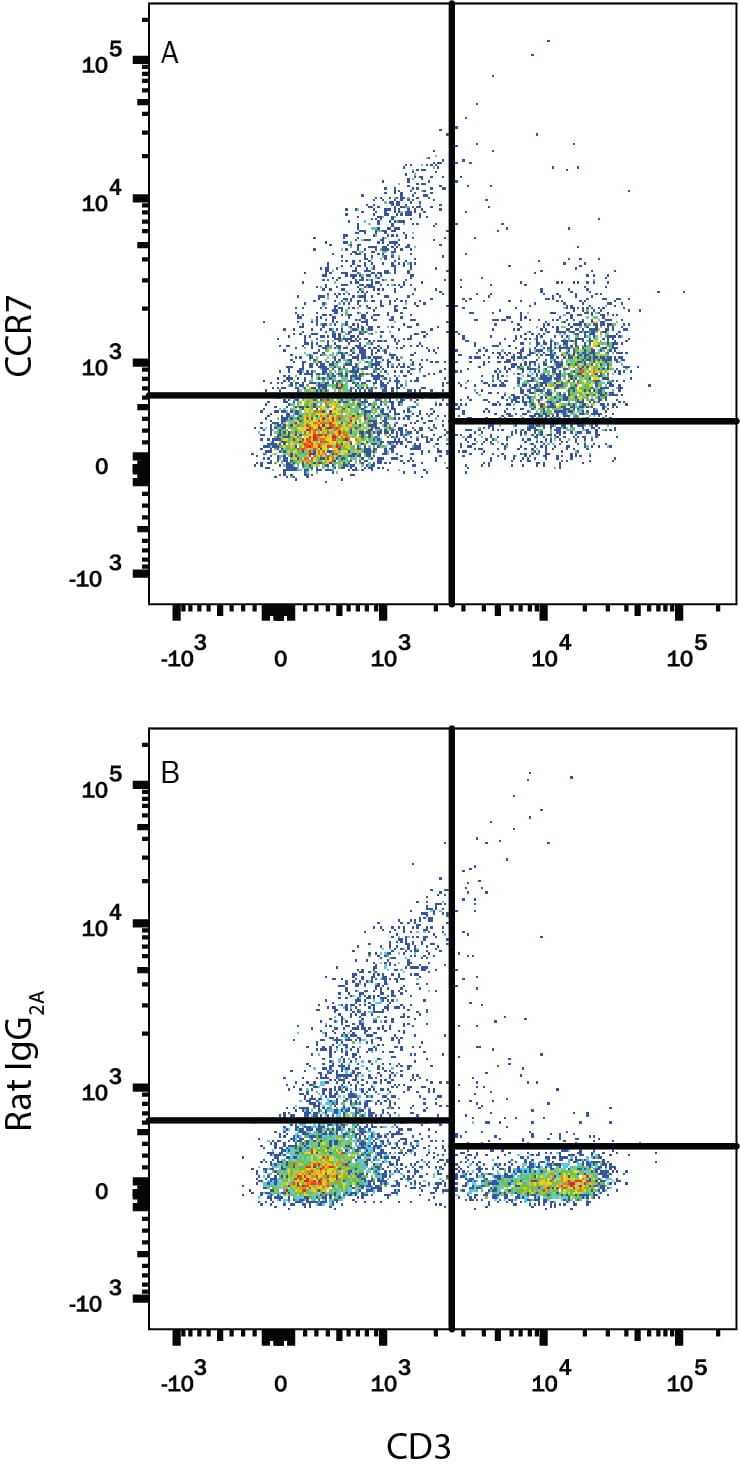

Flow Cytometry Detection of CCR7 antibody in Mouse Splenocytes antibody by Flow Cytometry. View Larger

Detection of CCR7 in Mouse Splenocytes by Flow Cytometry. Mouse splenocytes were stained with Rat Anti-Mouse CD3 PE-conjugated Monoclonal Antibody (Catalog # FAB4841P) and either (A) Rat Anti-Mouse CCR7 Monoclonal Antibody (Catalog # MAB3477) or (B) Rat IgG2AIsotype Control (Catalog # MAB006) followed by Allophycocyanin-conjugated Anti-Rat IgG Secondary Antibody (Catalog # F0113). View our protocol for Staining Membrane-associated Proteins.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.


Preparation and Storage

Reconstitute at 0.5 mg/mL in sterile PBS.
Reconstitution Buffer Available
Reconstitution Buffer 1 (PBS)
Catalog #
Size / Price
The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below. *Small pack size (SP) is shipped with polar packs. Upon receipt, store it immediately at -20 to -70 °C
Stability & Storage
Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 6 months, -20 to -70 °C under sterile conditions after reconstitution.

Background: CCR7

CCR7 (Chemokine Receptor 7; also CD197) is a 7 transmembrane (7TM) G protein-coupled chemokine receptor for the homeostatic chemokines CCL19/MIP-3 beta and CCL21/6Ckine. CCL19 and CCL21 are constitutively expressed by high endothelial venule epithelial cells or fibroblastic reticular cells in secondary lymphoid organs. CCR7 is upregulated on dendritic cells, naïve and memory T cells, Treg, NK cells, and B cells following inflammatory stimulation. Its expression enables the function of immune cell trafficking to and retention in regional lymph nodes for expansion of the adaptive immune response. Mouse CCR7 shares 87% amino acid sequence identity with human CCR7.

Entrez Gene IDs
1236 (Human); 12775 (Mouse); 287673 (Rat)
Alternate Names
BLR2; BLR2C-C chemokine receptor type 7; C-C CKR-7; CC-CKR-7; CCR7; CCR-7; CD197 antigen; CD197; CDw197; CDw197CC chemokine receptor 7; chemokine (C-C motif) receptor 7; CMKBR7; CMKBR7chemokine (C-C) receptor 7; EBI1; EBI1EBV-induced G protein-coupled receptor 1; EBV-induced G-protein coupled receptor 1; Epstein-Barr virus induced gene 1; Epstein-Barr virus induced G-protein coupled receptor; Epstein-Barr virus-induced G-protein coupled receptor 1; EVI1; lymphocyte-specific G protein-coupled peptide receptor; MIP-3 beta receptor

Product Datasheets

You must select a language.


Citations for Mouse CCR7 Antibody

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

9 Citations: Showing 1 - 9
Filter your results:

Filter by:

  1. Ligand-competent fractalkine receptor is expressed on exosomes
    Authors: EJ Park, PK Myint, MG Appiah, P Worawattan, J Inprasit, O Prajuabjin, ZY Soe, A Gaowa, E Kawamoto, M Shimaoka
    Biochemistry and Biophysics Reports, 2021;26(0):100932.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  2. Helicobacter pylori-induced Rev-erb&alpha fosters gastric bacteria colonization by impairing host innate and adaptive defense
    Authors: FY Mao, YP Lv, CJ Hao, YS Teng, YG Liu, P Cheng, SM Yang, W Chen, T Liu, QM Zou, R Xie, JY Xu, Y Zhuang
    Cellular and Molecular Gastroenterology and Hepatology, 2021;0(0):.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Neutralization
  3. Contribution of Heparan Sulphate Binding in CCL21-Mediated Migration of Breast Cancer Cells
    Authors: I Del Molino, A Meeson, K Cooke, MI Malki, B Barron-Mil, JA Kirby, S Ali
    Cancers, 2021;13(14):.
  4. Lymphangiogenesis in kidney and lymph node mediates renal inflammation and fibrosis
    Authors: G Pei, Y Yao, Q Yang, M Wang, Y Wang, J Wu, P Wang, Y Li, F Zhu, J Yang, Y Zhang, W Yang, X Deng, Z Zhao, H Zhu, S Ge, M Han, R Zeng, G Xu
    Sci Adv, 2019;5(6):eaaw5075.
    Species: Mouse
    Sample Types: In Vivo
    Applications: In Vivo
  5. FOXO1 regulates dendritic cell activity through ICAM-1 and CCR7.
    Authors: Dong G, Wang Y, Xiao W, Pacios Pujado S, Xu F, Tian C, Xiao E, Choi Y, Graves D
    J Immunol, 2015;194(8):3745-55.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: IHC
  6. TGF-beta1-induced EMT promotes targeted migration of breast cancer cells through the lymphatic system by the activation of CCR7/CCL21-mediated chemotaxis.
    Authors: Pang M, Georgoudaki A, Lambut L, Johansson J, Tabor V, Hagikura K, Jin Y, Jansson M, Alexander J, Nelson C, Jakobsson L, Betsholtz C, Sund M, Karlsson M, Fuxe J
    Oncogene, 2015;35(6):748-60.
  7. CC-Chemokine receptor CCR7: a key molecule for lymph node metastasis in esophageal squamous cell carcinoma.
    Authors: Irino, Tomoyuki, Takeuchi, Hiroya, Matsuda, Sachiko, Saikawa, Yoshiro, Kawakubo, Hirofumi, Wada, Norihito, Takahashi, Tsunehir, Nakamura, Rieko, Fukuda, Kazumasa, Omori, Tai, Kitagawa, Yuko
    BMC Cancer, 2014;14(0):291.
    Species: Human
    Sample Types: Whole Cells
    Applications: ELISA Development
  8. Deficiency of lymph node-resident dendritic cells (DCs) and dysregulation of DC chemoattractants in a malnourished mouse model of Leishmania donovani infection.
    Authors: Ibrahim M, Barnes J, Osorio E, Anstead G, Jimenez F, Osterholzer J, Travi B, Ahuja S, White A, Melby P
    Infect Immun, 2014;82(8):3098-112.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Flow Cytometry
  9. Direct B cell stimulation by dendritic cells in a mouse model of lupus.
    Authors: Wan S, Zhou Z, Duan B, Morel L
    Arthritis Rheum., 2008;8(0):1741-50.
    Species: Mouse
    Sample Types: Whole Cells
    Applications: Flow Cytometry
