Mouse Granzyme B DuoSet ELISA

In alignment with Bio-Techne’s commitment to sustainability and Go Green initiatives, we will no longer pack paper kit booklets in the following immunoassay kits:

  • Quantikine® RUO ELISA Kits
  • Quantikine® HS ELISA Kits
  • QuantiGloELISA Kits
  • QuicKitELISA Kits
  • Fluorokine Kits
  • Parameter Assay Kits
  • ELISpot Kits
Catalog # Availability Size / Price Qty
Ancillary Products Available

Save Up to 40% on RUO Reagents with BIOSPRING24 (See Details)

Mouse Granzyme B ELISA Standard Curve
1 Image
Product Details
Citations (31)
Supplemental Products
Reviews (4)

Mouse Granzyme B DuoSet ELISA Summary

Assay Type
Solid Phase Sandwich ELISA
96-well strip plate
Sample Volume Required
100 µL
Assay Range
62.5 - 4,000 pg/mL
Sufficient Materials
For five or fifteen 96-well plates*
Please see the product datasheet

* Provided that the recommended microplates, buffers, diluents, substrates and solutions are used, and the assay is run as summarized in the Assay Procedure provided.

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant mouse Granzyme B. The suggested diluent is suitable for the analysis of most cell culture supernate, serum, and plasma samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.


Product Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits

Kit Content

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Scientific Data

Mouse Granzyme B ELISA Standard Curve

Product Datasheets

You must select a language.


Preparation and Storage

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage
Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: Granzyme B

Granzyme family serine proteases are stored in the granules of cytotoxic T lymphocytes and natural killer cells. Granzymes contain one S1 protease domain and are synthesized as preproproteins. Granzymes are released toward pathogen infected or transformed target cells during cellular immune reactions. Target cell entry by granzymes is through perforin channels. Granzymes trigger apoptosis by caspase-dependent and -independent mechanisms. There are five granzymes (A, B, G, H and K) in human and many more in mouse and rat.

Entrez Gene IDs:
3002 (Human); 14939 (Mouse)
Alternate Names:
C11; CCPI; CGL1; CGL-1; CSPB; CSP-B; CTLA1; CTLA-1; CTSGL1; Fragmentin-2; Granzyme B; Granzyme-2; GranzymeB; GRB; GrzB; GZMB; HLP; SECT

Assay Procedure


Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.

Citations for Mouse Granzyme B DuoSet ELISA

R&D Systems personnel manually curate a database that contains references using R&D Systems products. The data collected includes not only links to publications in PubMed, but also provides information about sample types, species, and experimental conditions.

31 Citations: Showing 1 - 10
Filter your results:

Filter by:

  1. Selinexor in Combination with Decitabine Attenuates Ovarian Cancer in Mice
    Authors: Stiff, PJ;Mehrotra, S;Potkul, RK;Banerjee, S;Walker, C;Drakes, ML;
    Species: Mouse
    Sample Types: Cell Culture Supernates
  2. Streptococcus pneumoniae drives specific and lasting Natural Killer cell memory
    Authors: Camarasa, TMN;Torné, J;Chevalier, C;Rasid, O;Hamon, MA;
    PLoS pathogens
    Species: Mouse
    Sample Types: Tissue Homogenates
  3. Single-cell analysis reveals the stromal dynamics and tumor-specific characteristics in the microenvironment of ovarian cancer
    Authors: Zhang, L;Cascio, S;Mellors, JW;Buckanovich, RJ;Osmanbeyoglu, HU;
    bioRxiv : the preprint server for biology
    Species: Human
    Sample Types: Cell Culture Supernates
  4. NK cell-derived extracellular granzyme B drives epithelial ulceration during HSV-2 genital infection
    Authors: YS Lim, AG Lee, X Jiang, JM Scott, A Cofie, S Kumar, D Kennedy, DJ Granville, H Shin
    Cell Reports, 2023-04-17;42(4):112410.
    Species: Mouse
    Sample Types: Vaginal Lavage Fluid
  5. Chemotherapy-induced tumor immunogenicity is mediated in part by megakaryocyte-erythroid progenitors
    Authors: A Vorontsova, TJ Cooper, J Haj-Shomal, M Benguigui, S Levin, B Manobla, R Menachem, M Timaner, Z Raviv, Y Shaked
    Oncogene, 2023-01-16;0(0):.
    Species: Mouse
    Sample Types: Tissue Homogenates
  6. BST2, a Novel Inhibitory Receptor, Is Involved in NK Cell Cytotoxicity through Its Cytoplasmic Tail Domain
    Authors: J Oh, E Yi, SK Jeong, S Park, SH Park
    International Journal of Molecular Sciences, 2022-09-27;23(19):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  7. HSP90 mediates IFNgamma-induced adaptive resistance to anti-PD-1 immunotherapy
    Authors: K Liu, J Huang, J Liu, C Li, G Kroemer, D Tang, R Kang
    Cancer Research, 2022-05-16;0(0):.
    Species: Mouse
    Sample Types: Serum
  8. Peptide Adjuvant to Invigorate Cytolytic Activity of NK Cells in an Obese Mouse Cancer Model
    Authors: S Han, M Jung, AS Kim, DY Lee, BH Cha, CW Putnam, KS Lim, DA Bull, YW Won
    Pharmaceutics, 2021-08-17;13(8):.
    Species: Mouse
    Sample Types: Tissue Homogenates
  9. Inhibition of host Ogr1 enhances effector CD8+ T-cell function by modulating acidic microenvironment
    Authors: L Cao, W Li, X Yang, W Zhang, M Li, H Zhang, C Qin, X Chen, R Gao
    Cancer Gene Therapy, 2021-06-22;0(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  10. Concentrated Secretome of Adipose Stromal Cells Limits Influenza A Virus-Induced Lung Injury in Mice
    Authors: NV Bogatcheva, ME Coleman
    Cells, 2021-03-24;10(4):.
    Species: Mouse
    Sample Types: BALF
  11. Encapsulation of a CpG oligonucleotide in cationic liposomes enhances its local antitumor activity following pulmonary delivery in a murine model of metastatic lung cancer
    Authors: C Loira-Past, K Vanvarenbe, B Ucakar, M Machado Fr, A Staub, M Lemaire, JC Renauld, R Vanbever
    International journal of pharmaceutics, 2021-03-19;600(0):120504.
    Species: Mouse
    Sample Types: Tissue Homogenates
  12. Immunostimulatory Effects of Live Lactobacillus sakei K040706 on the CYP-Induced Immunosuppression Mouse Model
    Authors: SY Kim, JS Shin, KS Chung, HS Han, HH Lee, JH Lee, SY Kim, YW Ji, Y Ha, J Kang, YK Rhee, KT Lee
    Nutrients, 2020-11-22;12(11):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  13. Synergy between hemagglutinin 2 (HA2) subunit of influenza fusogenic membrane glycoprotein and oncolytic Newcastle disease virus suppressed tumor growth and further enhanced by Immune checkpoint PD-1 blockade
    Authors: SM Miri, MS Ebrahimzad, E Abdolalipo, M Yazdi, H Hosseini R, A Ghaemi
    Cancer Cell Int., 2020-08-07;20(0):380.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  14. Microparticles from tumors exposed to radiation promote immune evasion in part by PD-L1
    Authors: M Timaner, R Kotsofruk, Z Raviv, K Magidey, D Shechter, T Kan, A Nevelsky, S Daniel, EGE de Vries, T Zhang, O Kaidar-Per, RS Kerbel, Y Shaked
    Oncogene, 2019-08-29;0(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  15. Preclinical assessment of galunisertib (LY2157299 monohydrate), a first-in-class transforming growth factor-? receptor type I inhibitor
    Authors: JM Yingling, WT McMillen, L Yan, H Huang, JS Sawyer, J Graff, DK Clawson, KS Britt, BD Anderson, DW Beight, D Desaiah, MM Lahn, KA Benhadji, MJ Lallena, RB Holmgaard, X Xu, F Zhang, JR Manro, PW Iversen, CV Iyer, RA Brekken, MD Kalos, KE Driscoll
    Oncotarget, 2017-12-31;9(6):6659-6677.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  16. Citrullinated ?-enolase is an effective target for anti-cancer immunity
    Authors: K Cook, I Daniels, P Symonds, T Pitt, M Gijon, W Xue, R Metheringh, L Durrant, V Brentville
    Oncoimmunology, 2017-11-06;7(2):e1390642.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  17. Fusion to Flaviviral Leader Peptide Targets HIV-1 Reverse Transcriptase for Secretion and Reduces Its Enzymatic Activity and Ability to Induce Oxidative Stress but Has No Major Effects on Its Immunogenic Performance in DNA-Immunized Mice
    Authors: A Latanova, S Petkov, Y Kuzmenko, A Kilpeläine, A Ivanov, O Smirnova, O Krotova, S Korolev, J Hinkula, V Karpov, M Isaguliant, E Starodubov
    J Immunol Res, 2017-06-22;2017(0):7407136.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  18. Smac mimetics synergize with immune checkpoint inhibitors to promote tumour immunity against glioblastoma
    Authors: ST Beug, CE Beauregard, C Healy, T Sanda, M St-Jean, J Chabot, DE Walker, A Mohan, N Earl, X Lun, DL Senger, SM Robbins, P Staeheli, PA Forsyth, T Alain, EC LaCasse, RG Korneluk
    Nat Commun, 2017-02-15;8(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  19. The Yin/Yan of CCL2: a minor role in neutrophil anti-tumor activity in vitro but a major role on the outgrowth of metastatic breast cancer lesions in the lung in vivo
    Authors: N Lavender, J Yang, SC Chen, J Sai, CA Johnson, P Owens, GD Ayers, A Richmond
    BMC Cancer, 2017-01-31;17(1):88.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  20. NK cells activated by Interleukin-4 in cooperation with Interleukin-15 exhibit distinctive characteristics
    Proc Natl Acad Sci USA, 2016-08-22;0(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  21. Cannabinoid receptor 2 modulates susceptibility to experimental cerebral malaria through a CCL17-dependent mechanism
    J Biol Chem, 2016-07-29;0(0):.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  22. Citrullinated Vimentin Presented on MHC-II in Tumor Cells Is a Target for CD4+ T-Cell-Mediated Antitumor Immunity.
    Authors: Brentville V, Metheringham R, Gunn B, Symonds P, Daniels I, Gijon M, Cook K, Xue W, Durrant L
    Cancer Res, 2015-12-30;76(3):548-60.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  23. Lymphocytic Choriomeningitis Virus Expands a Population of NKG2D+CD8+ T Cells That Exacerbates Disease in Mice Coinfected with Leishmania major.
    Authors: Crosby E, Clark M, Novais F, Wherry E, Scott P
    J Immunol, 2015-08-19;195(7):3301-10.
    Species: Mouse
    Sample Types: Tissue Homogenates
  24. Local immune response to injection of Plasmodium sporozoites into the skin.
    Authors: Mac-Daniel L, Buckwalter M, Berthet M, Virk Y, Yui K, Albert M, Gueirard P, Menard R
    J Immunol, 2014-06-30;193(3):1246-57.
    Species: Mouse
    Sample Types: Tissue Homogenates
  25. Asthma increases susceptibility to heterologous but not homologous secondary influenza.
    Authors: Furuya Y, Roberts S, Hurteau G, Sanfilippo A, Racine R, Metzger D
    J Virol, 2014-06-04;88(16):9166-81.
    Species: Mouse
    Sample Types: BALF
  26. Differential role of NK cells against Candida albicans infection in immunocompetent or immunocompromised mice.
    Authors: Quintin J, Voigt J, van der Voort R, Jacobsen I, Verschueren I, Hube B, Giamarellos-Bourboulis E, van der Meer J, Joosten L, Kurzai O, Netea M
    Eur J Immunol, 2014-05-27;44(8):2405-14.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  27. Allogeneic splenocyte transfer and lipopolysaccharide inhalations induce differential T cell expansion and lung injury: a novel model of pulmonary graft-versus-host disease.
    Authors: Martinu, Tereza, Kinnier, Christin, Sun, Jesse, Kelly, Francine, Nelson, Margaret, Garantziotis, Stavros, Foster, W Michae, Palmer, Scott M
    PLoS ONE, 2014-05-20;9(5):e97951.
    Species: Mouse
    Sample Types: BALF
  28. Engagement of NKG2D on bystander memory CD8 T cells promotes increased immunopathology following Leishmania major infection.
    Authors: Crosby E, Goldschmidt M, Wherry E, Scott P
    PLoS Pathog, 2014-02-27;10(2):e1003970.
    Species: Mouse
    Sample Types: Tissue Culture Supernates
  29. The E3 ligase Cbl-b and TAM receptors regulate cancer metastasis via natural killer cells.
    Authors: Paolino, Magdalen, Choidas, Axel, Wallner, Stephani, Pranjic, Blanka, Uribesalgo, Iris, Loeser, Stefanie, Jamieson, Amanda M, Langdon, Wallace, Ikeda, Fumiyo, Fededa, Juan Pab, Cronin, Shane J, Nitsch, Roberto, Schultz-Fademrecht, Carsten, Eickhoff, Jan, Menninger, Sascha, Unger, Anke, Torka, Robert, Gruber, Thomas, Hinterleitner, Reinhard, Baier, Gottfrie, Wolf, Dominik, Ullrich, Axel, Klebl, Bert M, Penninger, Josef M
    Nature, 2014-02-19;507(7493):508-12.
    Species: Mouse
    Sample Types: Cell Culture Supernates
  30. Regulatory T cells expressing granzyme B play a critical role in controlling lung inflammation during acute viral infection.
    Authors: Loebbermann J, Thornton H, Durant L
    Mucosal Immunol, 2012-01-11;5(2):161-72.
    Species: Mouse
    Sample Types: BALF
  31. Plac8-dependent and inducible NO synthase-dependent mechanisms clear Chlamydia muridarum infections from the genital tract.
    Authors: Johnson RM, Kerr MS, Slaven JE
    J. Immunol., 2012-01-11;188(4):1896-904.
    Species: Mouse
    Sample Types: Cell Culture Supernates


No product specific FAQs exist for this product, however you may

View all ELISA FAQs

Reviews for Mouse Granzyme B DuoSet ELISA

Average Rating: 4.8 (Based on 4 Reviews)

5 Star
4 Star
3 Star
2 Star
1 Star

Have you used Mouse Granzyme B DuoSet ELISA?

Submit a review and receive an Amazon gift card.

$25/€18/£15/$25CAN/¥75 Yuan/¥1250 Yen for a review with an image

$10/€7/£6/$10 CAD/¥70 Yuan/¥1110 Yen for a review without an image

Submit a Review

Filter by:

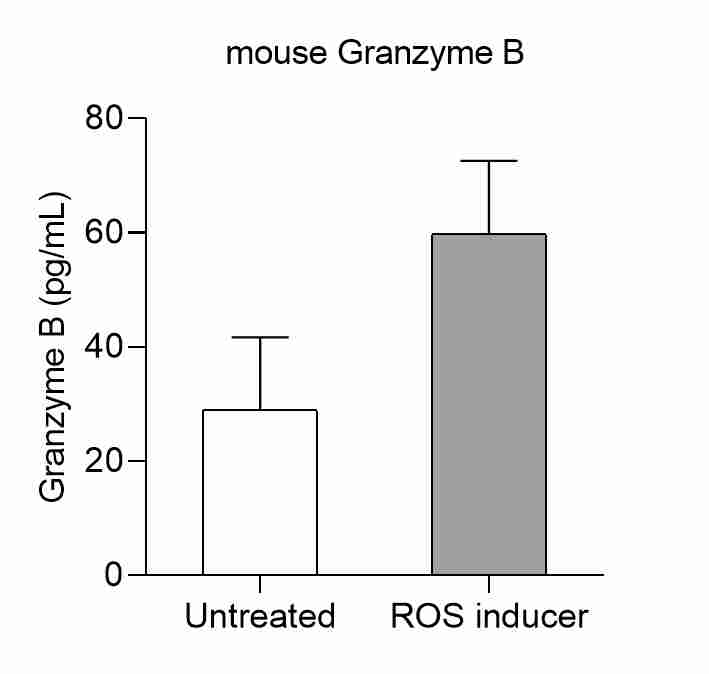

Mouse Granzyme B DuoSet ELISA
By Anonymous on 11/17/2021
Sample Tested: Tumor cell lyastes

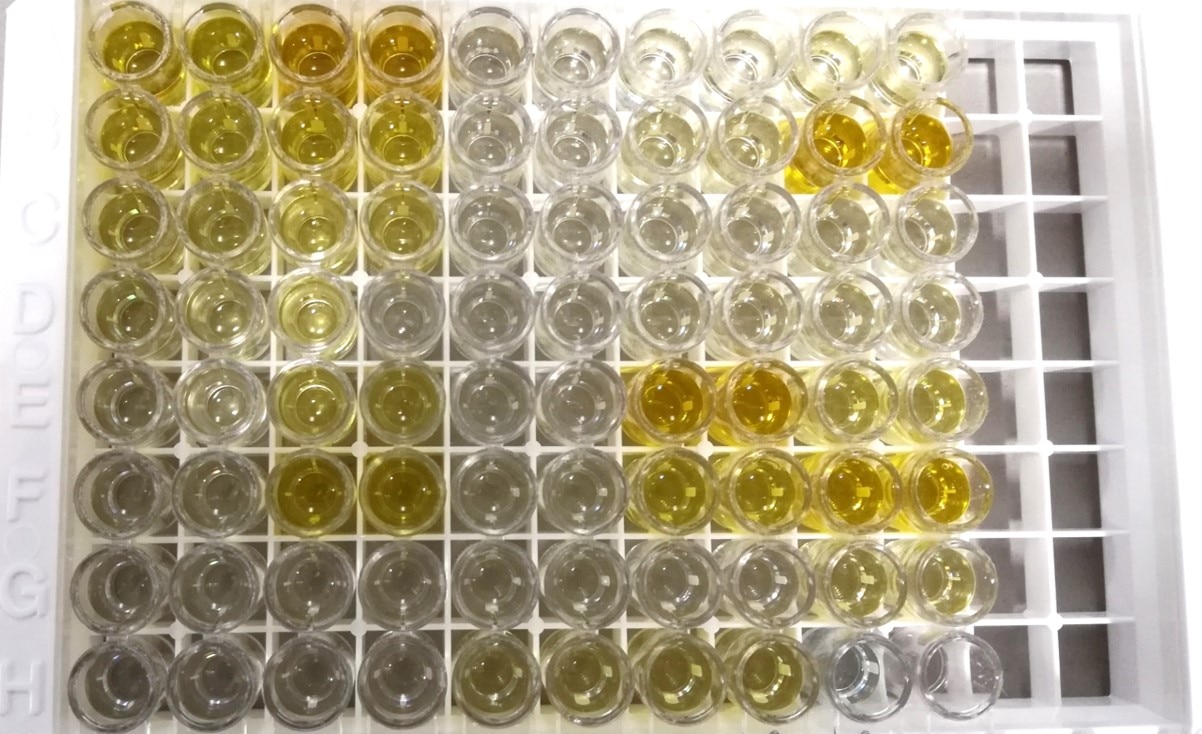

Mouse Granzyme B DuoSet ELISA
By Anonymous on 09/07/2019
Sample Tested: Serum and Plasma

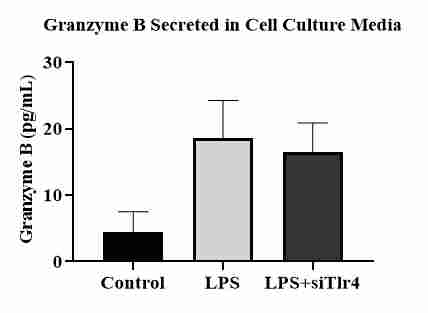

Mouse Granzyme B DuoSet ELISA
By Anonymous on 07/05/2019
Sample Tested: Serum-free Cell Culture Media

Bone Marrow Derived Macrophages

Mouse Granzyme B DuoSet ELISA
By Anonymous on 06/21/2019
Sample Tested: mouse tissue lysate
