Mouse IL-10 DuoSet ELISA

R&D Systems | Catalog # DY417

R&D Systems
Loading...

Key Product Details

Assay Type

Solid Phase Sandwich ELISA

Assay Range

31.2-2000 pg/mL

Sample Type

Cell culture supernates, serum, and plasma
Note: Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet

Reactivity

Mouse

Mouse IL-10 DuoSet ELISA Features

  • Optimized capture and detection antibody pairings with recommended concentrations save lengthy development time
  • Development protocols are provided to guide further assay optimization
  • Assay can be customized to your specific needs
  • Economical alternative to complete kits
Loading...

Product Summary for Mouse IL-10 DuoSet ELISA

This DuoSet ELISA Development kit contains the basic components required for the development of sandwich ELISAs to measure natural and recombinant mouse IL-10. The suggested diluent is suitable for the analysis of most cell culture supernate samples. Diluents for complex matrices, such as serum and plasma, should be evaluated prior to use in this DuoSet.

Product Specifications

Assay Format

96-well strip plate (sold separately)

Sample Volume Required

100 µL

Detection Method

Colorimetric ELISA - 450nm (TMB)

Conjugate

Biotin

Label

HRP

Scientific Data Images for Mouse IL-10 DuoSet ELISA

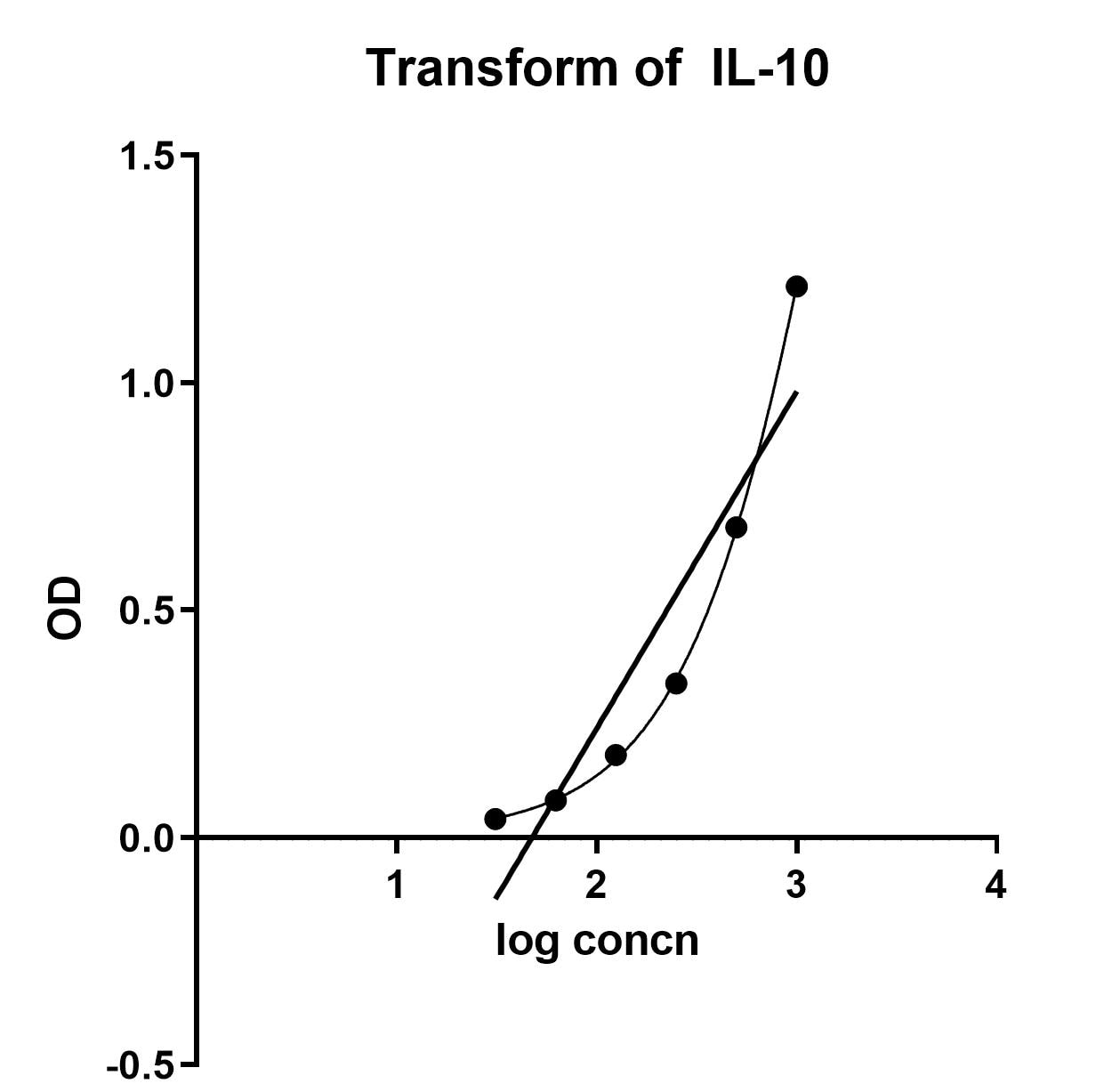

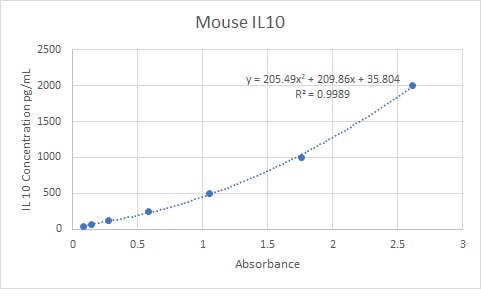

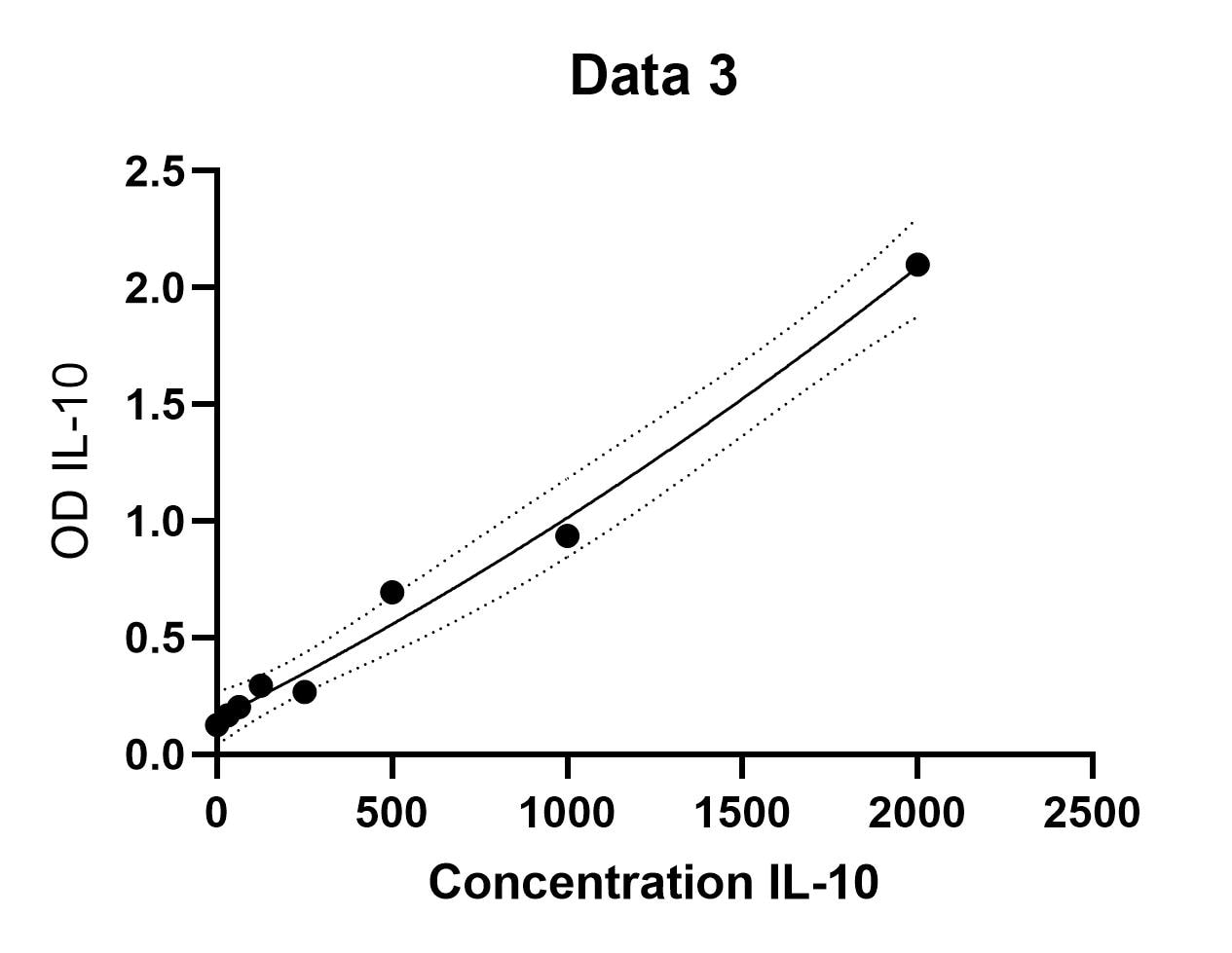

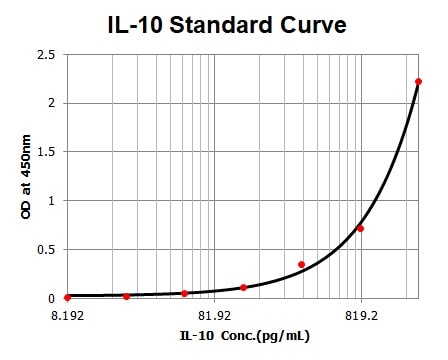

Mouse IL-10 ELISA Standard Curve

Mouse IL-10 ELISA Standard Curve

Kit Contents for Mouse IL-10 DuoSet ELISA

  • Capture Antibody
  • Detection Antibody
  • Recombinant Standard
  • Streptavidin conjugated to horseradish-peroxidase (Streptavidin-HRP)

Other Reagents Required

DuoSet Ancillary Reagent Kit 2 (5 plates): (Catalog # DY008) containing 96 well microplates, plate sealers, substrate solution, stop solution, plate coating buffer (PBS), wash buffer, and Reagent Diluent Concentrate 2.

The components listed above may be purchased separately:

PBS: (Catalog # DY006), or 137 mM NaCl, 2.7 mM KCl, 8.1 mM Na2HPO4, 1.5 mM KH2PO4, pH 7.2 - 7.4, 0.2 µm filtered

Wash Buffer: (Catalog # WA126), or 0.05% Tween® 20 in PBS, pH 7.2-7.4

Reagent Diluent: (Catalog # DY995), or 1% BSA in PBS, pH 7.2-7.4, 0.2 µm filtered

Substrate Solution: 1:1 mixture of Color Reagent A (H2O2) and Color Reagent B (Tetramethylbenzidine) (Catalog # DY999)

Stop Solution: 2 N H2SO4 (Catalog # DY994)

Microplates: R&D Systems (Catalog # DY990)

Plate Sealers: ELISA Plate Sealers (Catalog # DY992)

Preparation and Storage

Shipping

The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-10

Interleukin-10 (IL-10), also known as cytokine synthesis inhibitory factor (CSIF), is the charter member of the IL-10 alpha -helical cytokine family that also includes IL-19, IL-20, IL-22, IL-24, and IL-26/AK155 (1-3). IL-10 is secreted by many activated hematopoietic cell types as well as hepatic stellate cells, keratinocytes, and placental cytotrophoblasts. Whereas human IL-10 is active on mouse cells, mouse IL-10 does not act on human cells (4, 5). Mature mouse IL-10 shares 85% amino acid sequence identity with rat IL-10 and 70-77% with bovine, canine, equine, feline, human, ovine, and porcine IL-10. It contains two intrachain disulfide bridges and is expressed as a 36 kDa noncovalently-associated homodimer (4, 6, 7).
IL-10 mediates its biological activities through a heteromeric receptor complex composed of the type II cytokine receptor subunits IL-10 R alpha and IL-10 R beta. IL-10 R alpha is a 110 kDa transmembrane glycoprotein that is expressed on lymphocytes, NK cells, macrophages, monocytes, astrocytes, intestinal epithelial cells, cytotrophoblasts, and activated hepatic stellate cells (8-13), while the 75 kDa transmembrane IL-10 R beta is widely expressed (14, 15). The IL-10 dimer binds to two IL 10 R alpha chains, triggering recruitment of two IL-10 R beta chains (14, 15). IL-10 R beta does not bind IL-10 directly but is required for signal transduction. IL-10 R beta also associates with IL-20 R alpha, IL-22 R alpha 1, or IL-28 R alpha to form the receptor complexes for IL-22, IL-26, IL-28, and IL-29 (16-18).
The involvement of IL-10 in immunoregulation includes both suppressive and stimulatory effects. It functions as an anti-inflammatory cytokine by inhibiting the expansion and activation of Th1 cells and Th17 cells (19-21) and by promoting the development of M2 macrophages (21). Its expression by immunosuppressive regulatory T cells (Treg) and regulatory B cells is important for Treg proliferation (19). Within a tumor microenvironment, however, IL-10 inhibits the expansion of Treg as well as myeloid-derived suppressor cells (22, 23). IL-10 induces the intratumoral accumulation and activation of CD8+ T cells (24, 25). IL-10 exerts protective effects including limiting tissue damage in arthritic inflammation (19) and promoting muscle regeneration after injury (21), but it also contributes to the persistence of viral infections (26). The levels of IL-10 are elevated in Sjogren's syndrome (saliva), primary CNS lymphoma (cerebrospinal fluid), and ovarian cancer (serum and ascites) (27-29). Its levels are decreased in the serum in patients with recurrent heart attacks or during preeclampsia and also in the seminal fluid of infertile men (30-32).

Long Name

Interleukin 10

Alternate Names

CSIF, GVHDS, IL10, IL10A, TGIF

Entrez Gene IDs

3586 (Human); 16153 (Mouse); 25325 (Rat); 397106 (Porcine); 403628 (Canine); 102133450 (Cynomolgus Monkey); 100034187 (Equine); 493683 (Feline); 100715618 (Guinea Pig); 2949786 (Viral)

Gene Symbol

IL10

Additional IL-10 Products

Product Documents for Mouse IL-10 DuoSet ELISA

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Mouse IL-10 DuoSet ELISA

For research use only

Citations for Mouse IL-10 DuoSet ELISA

Customer Reviews for Mouse IL-10 DuoSet ELISA (15)

4.5 out of 5
15 Customer Ratings
5 Stars
67%
4 Stars
20%
3 Stars
13%
2 Stars
0%
1 Stars
0%

Have you used Mouse IL-10 DuoSet ELISA?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 5 of 15 reviews Showing All
Filter By:
  • Mouse IL-10 DuoSet ELISA
    Name: Evan Williams
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 12/12/2023
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: rbc lysis
    Verified Customer | Posted 05/22/2023
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Colon tissue
    Verified Customer | Posted 05/18/2023
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Caglar Cil
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 08/08/2022
    Kit works good but not very good at detecting IL-10 in M2 macrophages
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Colon tissue
    Verified Customer | Posted 06/17/2022
    very simple and steady
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Rob Knight
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 12/09/2021
    RAW Cell conditioned medium following stimulation with 10ng/mL LPS for 24 hours
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 04/09/2021
    Mouse IL-10 DuoSet ELISA DY417
  • Name: Andy liu
    Sample Tested: Serum
    Verified Customer | Posted 09/14/2020
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: RAW 264.7 mouse monocyte/macrophage cell line and Cell culture supernatant
    Verified Customer | Posted 11/10/2019
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: RAW 264.7 mouse monocyte/macrophage cell line
    Verified Customer | Posted 09/25/2019
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Serum
    Verified Customer | Posted 08/06/2018
  • Mouse IL-10 DuoSet ELISA
    Name: Cristina Perez-Ternero
    Sample Tested: Plasma
    Verified Customer | Posted 07/29/2018
  • Mouse IL-10 DuoSet ELISA
    Name: Jim Hsiao
    Sample Tested: Mouse lung BALF
    Verified Customer | Posted 12/04/2017
    Result has been published in 10.1371/journal.pone.0058258
    Mouse IL-10 DuoSet ELISA DY417
  • Mouse IL-10 DuoSet ELISA
    Name: Luiz Eduardo Baggio Savio
    Sample Tested: Serum and Plasma, Cell Culture Supernates, Liver tissue and Brain tissue
    Verified Customer | Posted 10/21/2017
  • Mouse IL-10 DuoSet ELISA
    Name: Anonymous
    Sample Tested: Cell culture supernatant
    Verified Customer | Posted 05/02/2017

There are no reviews that match your criteria.

Showing  1 - 5 of 15 reviews Showing All

Protocols

View specific protocols for Mouse IL-10 DuoSet ELISA (DY417):

GENERAL ELISA PROTOCOL

Plate Preparation

  1. Dilute the Capture Antibody to the working concentration in PBS without carrier protein. Immediately coat a 96-well microplate with 100 μL per well of the diluted Capture Antibody. Seal the plate and incubate overnight at room temperature.
  2. Aspirate each well and wash with Wash Buffer, repeating the process two times for a total of three washes. Wash by filling each well with Wash Buffer (400 μL) using a squirt bottle, manifold dispenser, or autowasher. Complete removal of liquid at each step is essential for good performance. After the last wash, remove any remaining Wash Buffer by aspirating or by inverting the plate and blotting it against clean paper towels.
  3. Block plates by adding 300 μL Reagent Diluent to each well. Incubate at room temperature for a minimum of 1 hour.
  4. Repeat the aspiration/wash as in step 2. The plates are now ready for sample addition.

Assay Procedure

  1. Add 100 μL of sample or standards in Reagent Diluent, or an appropriate diluent, per well. Cover with an adhesive strip and incubate 2 hours at room temperature.
  2. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  3. Add 100 μL of the Detection Antibody, diluted in Reagent Diluent, to each well. Cover with a new adhesive strip and incubate 2 hours at room temperature.
  4. Repeat the aspiration/wash as in step 2 of Plate Preparation.
  5. Add 100 μL of the working dilution of Streptavidin-HRP to each well. Cover the plate and incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  6. Repeat the aspiration/wash as in step 2.
  7. Add 100 μL of Substrate Solution to each well. Incubate for 20 minutes at room temperature. Avoid placing the plate in direct light.
  8. Add 50 μL of Stop Solution to each well. Gently tap the plate to ensure thorough mixing.
  9. Determine the optical density of each well immediately, using a microplate reader set to 450 nm. If wavelength correction is available, set to 540 nm or 570 nm. If wavelength correction is not available, subtract readings at 540 nm or 570 nm from the readings at 450 nm. This subtraction will correct for optical imperfections in the plate. Readings made directly at 450 nm without correction may be higher and less accurate.
