mtTFA Antibody (18G102B2E11) - BSA Free

Novus Biologicals | Catalog # NBP1-71648

Novus Biologicals
Loading...

Key Product Details

Validated by

Knockout/Knockdown, Biological Validation

Species Reactivity

Validated:

Human, Mouse (Negative)

Cited:

Human, Mouse

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence, Simple Western

Cited:

Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence, Simple Western

Label

Unconjugated

Antibody Source

Monoclonal Mouse IgG2b Kappa Clone # 18G102B2E11

Format

BSA Free
Loading...

Product Specifications

Immunogen

Human mtTFA [Swiss-Prot# Q00059]

Localization

Mitochondrion.

Clonality

Monoclonal

Host

Mouse

Isotype

IgG2b Kappa

Scientific Data Images for mtTFA Antibody (18G102B2E11) - BSA Free

Simple Western: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Simple Western: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Simple Western: mtTFA Antibody (18G102B2E11) [NBP1-71648] - Simple Western lane view shows a specific band for mtTFA in 0.5 mg/ml of HeLa lysate. This experiment was performed under reducing conditions using the 12-230 kDa separation system.

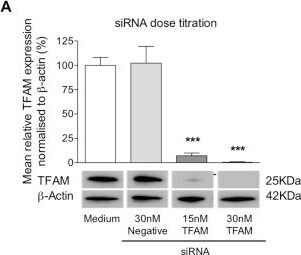

Knockdown Validated: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648] - HeLa cells were fixed in 4% paraformaldehyde for 10 minutes and permeabilized in 0.05% Triton X-100 in PBS for 5 minutes. The cells were incubated with anti-mtTFA Antibody (18G102B2E11) NBP1-71648 at 1 ug/ml overnight at 4C and detected with an anti-mouse Dylight 488 (Green) at a 1:1000 dilution for 60 minutes. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 100X objective and digitally deconvolved.
Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunohistochemistry-Paraffin: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunohistochemistry-Paraffin: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunohistochemistry-Paraffin: mtTFA Antibody (18G102B2E11) [NBP1-71648] - IHC staining of mtTFA on human testis using DAB with hematoxylin counterstain.
Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648] - HeLa cells were fixed in 4% paraformaldehyde for 10 minutes and permeabilized in 0.05% Triton X-100 in PBS for 5 minutes. The cells were incubated with anti-mtTFA Antibody (18G102B2E11) NBP1-71648 at 1 ug/ml overnight at 4C and detected with an anti-mouse Dylight 488 (Green) at a 1:1000 dilution for 60 minutes. Nuclei were counterstained with DAPI (Blue). Cells were imaged using a 40X objective.
Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Immunocytochemistry/Immunofluorescence: mtTFA Antibody (18G102B2E11) [NBP1-71648] - Immunostaining in HeLa cells. C1: DAPI staining 2 nuclei, C2: anti-mtTFA stain with Alexa Fluor 488 secondary ab (green), C3: Mitotracker Red staining mitochondria. Image courtesy of Elizabeth Wang.
Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] - Total protein from Hela and U937 were separated on a 12% gel by SDS-PAGE, transferred to PVDF membrane and blocked in 5% non-fat milk in TBST. The membrane was probed with 2.0 ug/ml anti-mtTFA NBP1-71648 in blocking buffer and detected with an anti-mouse HRP secondary antibody using NovaLume chemiluminescence detection reagent (NPB2-61915).
Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648]

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] - Analysis of mtTFA expression in HeLa whole cell lysate.
mtTFA Antibody (18G102B2E11)

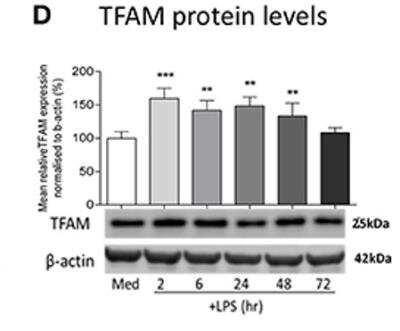

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] -

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] - MtDNA depletion & reversible impaired immune functions in THP-1 cells. A & B, Treatment with 50 ng/mL ethidium bromide (EtBr) for 8 weeks. A, MtDNA levels. B, LPS-induced TNF-alpha & IL-8 release. C-E, Transfection with 30 nmol/L negative or TFAM siRNA for 8 days. C, TFAM protein relative to beta -actin. D, MtDNA levels. E, LPS-induced TNF-alpha & IL-8 release. F-H, TFAM recovery 8 days after removal of TFAM siRNA. F, TFAM protein relative beta -actin. G, MtDNA levels. H, LPS-induced TNF-alpha & IL-8 release. All experiments are presented as means ± SD of 3 to 4 independent biological replicates. *P < .05, **P < .01, & ***P < .001. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28629747), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
mtTFA Antibody (18G102B2E11)

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] -

Western Blot: mtTFA Antibody (18G102B2E11) [NBP1-71648] - MtDNA depletion & impaired immune functions & subsequent recovery in THP-1 cells following transfection with TFAM siRNA. A-G, Transfection with TFAM siRNA. A, TFAM proteins levels relative to beta -actin during titration of TFAM siRNA, showing optimal knockdown of TFAM protein after transfection of THP-1 cells with 30 nmol/L siRNA for 8 days. B, Cell viability. C, Cell proliferation. D, The levels of the MT-CO1 & SDHA proteins relative to beta -actin. D, OCR for different aspects of mitochondrial respiration & respiratory profile. E, Phagocytosis of E coli. Recovery 8 days after removal of TFAM siRNA. F, Levels of the MT-CO1 & SDHA proteins relative to beta -actin. G, Oxygen consumption for different aspects of mitochondrial respiration. H, Bacterial phagocytosis. All experiments were carried out on 3 to 4 independent biological replicates & are presented as means ± SD. **P < .01 & ***P < .001. Image collected & cropped by CiteAb from the following publication (https://pubmed.ncbi.nlm.nih.gov/28629747), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
mtTFA Antibody (18G102B2E11) - BSA Free

mtTFA (18G102B2E11) in U-2 OS Human Cell Line.

mtTFA (18G102B2E11) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti-mtTFA (18G102B2E11) Protein G Purified Monoclonal Antibody (Catalog # NBP1-71648) at 1.0 µg/mL overnight at 4C. Cells were stained using DyLight 488-conjugated Anti-Mouse IgG (H+L) Cross-Absorbed Secondary Antibody (green), and counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
mtTFA Antibody (18G102B2E11) - BSA Free

mtTFA (18G102B2E11) in U-2 OS Human Cell Line.

mtTFA (18G102B2E11) was detected in immersion fixed U-2 OS human osteosarcoma cell line using Mouse anti-mtTFA (18G102B2E11) Protein G Purified Monoclonal Antibody conjugated to Alexa Fluor® 647 (Catalog # NBP1-71648AF647) (light blue) at 5 µg/mL overnight at 4C. Cells were counterstained with DAPI (blue). Cells were imaged using a 100X objective and digitally deconvolved.
mtTFA Antibody (18G102B2E11) - BSA Free

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) - BSA Free [NBP1-71648] -

Silencing of LONP1 aggravates ageing‐related renal fibrosis and mitochondrial dysfunction in vivo. (A) Sirius red and IHC staining for FN, TFAM and Drp1 in the control, D‐gal and D‐gal + AAV‐shLONP1 groups. The scale bars are 50 μm; (B, C) mtDNA levels and ATP content in the control, D‐gal and D‐gal + AAV‐shLONP1 groups; (D, E) protein levels of TFAM and Drp1 in the control, D‐gal and D‐gal + AAV‐shLONP1 groups; (F) immunostaining for COX IV (red) and TFAM (green) and counterstaining with DAPI (blue) in the control, D‐gal and D‐gal + AAV‐shLONP1 groups. The scale bar represents 50 μm. (G) Mitochondrial ultrastructure in the control, D‐gal and D‐gal + AAV‐shLONP1 groups as determined by TEM. **p < 0.01 versus the D‐gal group by one‐way ANOVA. LONP1, lon protease 1; IHC, immunohistochemistry; FN, fibronectin; TFAM, transcription factor A, mitochondrial; Drp1, dynamin related protein 1; mtDNA, mitochondrial DNA; AAV, adeno‐associated virus; COX, cytochrome c oxidase; DAPI, 4′,6‐diamidino‐2‐phenylindole; IF, immunofluorescent; SD, standard deviation; ANOVA, analysis of variance. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/39261902), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
mtTFA Antibody (18G102B2E11) - BSA Free

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) - BSA Free [NBP1-71648] -

LONP1 overexpression ameliorates ageing‐related renal fibrosis and mitochondrial dysfunction in vivo. (A) Sirius red and IHC staining for FN, TFAM and Drp1 in the control, D‐gal and D‐gal + AAV‐LONP1 groups. The scale bars are 50 μm; (B, C) mtDNA and ATP contents in the control, D‐gal and D‐gal + AAV‐LONP1 groups; (D, E) protein levels of TFAM and Drp1 in the control, D‐gal and D‐gal + AAV‐LONP1 groups; (F) immunostaining for COX IV (red) and TFAM (green) and counterstaining with DAPI (blue) in the control, D‐gal and D‐gal + AAV‐LONP1 groups. The scale bar represents 50 μm. (G) Mitochondrial ultrastructure in the control, D‐gal and D‐gal + AAV‐LONP1 groups as determined by TEM. **p < 0.01 versus the D‐gal group by one‐way ANOVA. LONP1, lon protease 1; IHC, immunohistochemistry; FN, fibronectin; TFAM, transcription factor A, mitochondrial; Drp1, dynamin related protein 1; mtDNA, mitochondrial DNA; AAV, adeno‐associated virus; COX, cytochrome c oxidase; DAPI, 4′,6‐diamidino‐2‐phenylindole; IF, immunofluorescent; ANOVA, analysis of variance. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/39261902), licensed under a CC-BY license. Not internally tested by Novus Biologicals.
mtTFA Antibody (18G102B2E11) - BSA Free

Immunocytochemistry/ Immunofluorescence: mtTFA Antibody (18G102B2E11) - BSA Free [NBP1-71648] -

LONP1 attenuates D‐gal‐induced mitochondrial dysfunction in vitro. (A) Representative fluorescence micrographs obtained by MitoTracker deep red staining (scale bar = 10 μm) or double immunostaining of TFAM (red) and Drp1 (green), counterstained with DAPI (blue) (scale bar = 50 μm) in HK‐2 cells; (B, C) mtDNA levels and ATP content in the vector, D‐gal and D‐gal+LONP1 groups of HK‐2 cells; (D–H) the mitochondrial OCR in the vector, D‐gal and D‐gal+LONP1 groups of HK‐2 cells. **p < 0.01 versus the D‐gal group by one‐way ANOVA. LONP1, lon protease 1; TFAM, transcription factor A, mitochondrial; Drp1, dynamin related protein 1; DAPI, 4′,6‐diamidino‐2‐phenylindole; mtDNA, mitochondrial DNA; OCR, oxygen consumption rate; ANOVA, analysis of variance. Image collected and cropped by CiteAb from the following open publication (https://pubmed.ncbi.nlm.nih.gov/39261902), licensed under a CC-BY license. Not internally tested by Novus Biologicals.

Applications for mtTFA Antibody (18G102B2E11) - BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

1-5 ug/ml

Immunohistochemistry

1:200

Immunohistochemistry-Paraffin

1:200

Simple Western

1:20

Western Blot

1:1000
Application Notes
In Western blot, a band can be seen around 20 - 25 kDa. In Simple Western only 10 - 15 uL of the recommended dilution is used per data point.
See Simple Western Antibody Database for Simple Western validation: Tested in HeLa lysate 0.5 mg/mL, separated by Size, antibody dilution of 1:20, apparent MW was 33 kDa. Separated by Size-Wes, Sally Sue/Peggy Sue.

Formulation, Preparation, and Storage

Purification

Protein G purified

Formulation

PBS

Format

BSA Free

Preservative

0.02% Sodium Azide

Concentration

1 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: mtTFA

mtTFA (transcription factor A, mitochondrial) is an essential protein that binds mitochondrial DNA (mtDNA) with or without sequence specificity to control mitochondrial transcription initiation and mtDNA copy number. mtTFA exists as monomer localized in mitochondrion matrix/nucleoid where it binds DNA and interacts with TFB1M/TFB2M. mtTFA associates with mitochondrial light strand promoter for controlling transcription and is essential for correct/efficient mtRNA polymerase promoter recognition. mtTFA is capable of unwinding DNA and bending mitochondrial light strand promoter DNA into a U-turn shape via its HMG boxes, and mtTFA is essential for controlling mtDNA levels as well as its organization/compaction. mtDNA is a multicopy, circular genome that is required for respiratory function and interference with mitochondrial genome sequence fidelity, transcription, or translation can cause ATP insufficiency and several pathologies including progressive external ophthalmoplegia, amyotrophic lateral sclerosis (ALS), Alpers' disease, Parkinson's disease, Alzheimer's disease, aging, cardiovascular disease, diabetes and cancer.

Alternate Names

mitochondrial transcription factor A, MTTF1, mtTFA, TCF-6, TCF6L1, TCF6L2Mitochondrial transcription factor 1, TCF6TCF6L3, Transcription factor 6, Transcription factor 6-like 2, Transcription factor 6-like 2 (mitochondrial transcription factor), transcription factor A, mitochondrial

Entrez Gene IDs

7019 (Human)

Gene Symbol

TFAM

UniProt

Additional mtTFA Products

Product Documents for mtTFA Antibody (18G102B2E11) - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Product Specific Notices for mtTFA Antibody (18G102B2E11) - BSA Free

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for mtTFA Antibody (18G102B2E11) - BSA Free

Customer Reviews for mtTFA Antibody (18G102B2E11) - BSA Free

There are currently no reviews for this product. Be the first to review mtTFA Antibody (18G102B2E11) - BSA Free and earn rewards!

Have you used mtTFA Antibody (18G102B2E11) - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Protocols

View specific protocols for mtTFA Antibody (18G102B2E11) - BSA Free (NBP1-71648):


Immunocytochemistry Protocol

Culture cells to appropriate density in 35 mm culture dishes or 6-well plates.

1. Remove culture medium and add 10% formalin to the dish. Fix at room temperature for 30 minutes.
2. Remove the formalin and add ice cold methanol. Incubate for 5-10 minutes.
3. Remove methanol and add washing solution (i.e. PBS). Be sure to not let the specimen dry out. Wash three times for 10 minutes.
4. To block nonspecific antibody binding incubate in 10% normal goat serum from 1 hour to overnight at room temperature.
5. Add primary antibody at appropriate dilution and incubate at room temperature from 2 hours to overnight at room temperature.
6. Remove primary antibody and replace with washing solution. Wash three times for 10 minutes.
7. Add secondary antibody at appropriate dilution. Incubate for 1 hour at room temperature.
8. Remove antibody and replace with wash solution, then wash for 10 minutes. Add Hoechst 33258 to wash solution at 1:25,0000 and incubate for 10 minutes. Wash a third time for 10 minutes.
9. Cells can be viewed directly after washing. The plates can also be stored in PBS containing Azide covered in Parafilm (TM). Cells can also be cover-slipped using Fluoromount, with appropriate sealing.

*The above information is only intended as a guide. The researcher should determine what protocol best meets their needs. Please follow safe laboratory procedures.


Immunohistochemistry-Paraffin Embedded Sections

Antigen Unmasking:
Bring slides to a boil in 10 mM sodium citrate buffer (pH 6.0) then maintain at a sub-boiling temperature for 10 minutes. Cool slides on bench-top for 30 minutes.

Staining:
1. Wash sections in deionized water three times for 5 minutes each.
2. Wash sections in wash buffer for 5 minutes.
3. Block each section with 100-400 ul blocking solution for 1 hour at room temperature.
4. Remove blocking solution and add 100-400 ul diluted primary antibody. Incubate overnight at 4C.
5. Remove antibody solution and wash sections in wash buffer three times for 5 minutes each.
6. Add 100-400 ul biotinylated diluted secondary antibody. Incubate 30 minutes at room temperature.
7. Remove secondary antibody solution and wash sections three times with wash buffer for 5 minutes each.
8. Add 100-400 ul Streptavidin-HRP reagent to each section and incubate for 30 minutes at room temperature.
9. Wash sections three times in wash buffer for 5 minutes each.
10. Add 100-400 ul DAB substrate to each section and monitor staining closely.
11. As soon as the sections develop, immerse slides in deionized water.
12. Counterstain sections in hematoxylin.
13. Wash sections in deionized water two times for 5 minutes each.
14. Dehydrate sections.
15. Mount coverslips.


Western Blot Protocol

1. Perform SDS-PAGE on samples to be analyzed, loading 40 ug of total protein per lane.
2. Transfer proteins to membrane according to the instructions provided by the manufacturer of the membrane and transfer apparatus.
3. Stain according to standard Ponceau S procedure (or similar product) to assess transfer success, and mark molecular weight standards where appropriate.
4. Rinse the blot.
5. Block the membrane using standard blocking buffer for at least 1 hour.
6. Wash the membrane in wash buffer three times for 10 minutes each.
7. Dilute primary antibody in blocking buffer and incubate 1 hour at room temperature.
8. Wash the membrane in wash buffer three times for 10 minutes each.
9. Apply the diluted HRP conjugated secondary antibody in blocking buffer (as per manufacturers instructions) and incubate 1 hour at room temperature.
10. Wash the blot in wash buffer three times for 10 minutes each (this step can be repeated as required to reduce background).
11. Apply the detection reagent of choice in accordance with the manufacturers instructions.

*Note: Tween-20 can be added to the blocking or antibody dilution buffer at a final concentration of 0.05-0.2%.

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.
