Recombinant Human PD-1 Fc Chimera Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI1086-050
Recombinant Human PD-1 Fc Chimera Avi-tag Protein, CF Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human PD-1 Fc Chimera Avi-tag Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human B7‑H1/PD‑L1 Fc Chimera (Catalog # 156-B7) is immobilized at 1 μg/mL (100 μL/well), the concentration of Biotinylated Recombinant Human PD-1 Fc Chimera Avi-tag (Catalog # AVI1086) that produces 50% of the optimal binding response is 10-90 ng/mL.
Source
Chinese Hamster Ovary cell line, CHO-derived human PD-1 protein
Human PD-1
(Leu25-Thr168)
Accession # Q15116.3
IEGRMDHuman IgG1
(Pro100-Lys330)
HP, 3x (GGGS) Avi-tag
Accession #
N-terminal Sequence
Analysis
Leu25
Structure / Form
Disulfide-linked homodimer, biotinylated via Avi-tag
Predicted Molecular Mass
45 kDa
SDS-PAGE
62-88 kDa, under reducing conditions

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI1086

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 250 μg/mL in PBS.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Binding Activity View Larger

When Recombinant Human B7-H1/PD-L1 Fc Chimera (Catalog # 156-B7) is immobilized at 1 µg/mL, 100 µg/well, Recombinant Human PD-1 Fc Chimera Avi-tag (Catalog # AVI1086) binds with an ED50of 0.01-0.09 µg/mL.

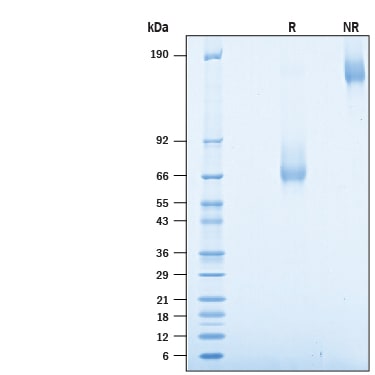

SDS-PAGE View Larger

2 μg/lane of Biotinylated Recombinant Human PD-1 Fc Chimera Avi-tag (Catalog # AVI1086) was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands at 62-88 kDa and 120-180 kDa, respectively.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PD-1

Programmed Death-1 receptor (PD-1), also known as CD279, is type I transmembrane protein belonging to the CD28 family of immune regulatory receptors (1). Other members of this family include CD28, CTLA-4, ICOS, and BTLA (2-5). Mature mouse PD-1 consists of a 149 amino acid (aa) extracellular region (ECD) with one immunoglobulin-like V-type domain, a 21 aa transmembrane domain, and a 98 aa cytoplasmic region. The mouse PD-1 ECD shares 65% aa sequence identity with the human PD-1 ECD. The cytoplasmic tail contains two tyrosine residues that form the immunoreceptor tyrosine-based inhibitory motif (ITIM) and immunoreceptor tyrosine-based switch motif (ITSM) that are important for mediating PD-1 signaling. PD-1 acts as a monomeric receptor and interacts in a 1:1 stoichiometric ratio with its ligands PD-L1 (B7-H1) and PD-L2 (B7-DC) (6, 7). PD‑1 is expressed on activated T cells, B cells, monocytes, and dendritic cells while PD-L1 expression is constitutive on the same cells and also on nonhematopoietic cells such as lung endothelial cells and hepatocytes (8, 9). Ligation of PD-L1 with PD-1 induces
co-inhibitory signals on T cells promoting their apoptosis, anergy, and functional exhaustion (10). Thus, the PD-1:PD-L1 interaction is a key regulator of the threshold of immune response and peripheral immune tolerance (11). Finally, blockade of the PD-1: PD-L1 interaction by either antibodies or genetic manipulation accelerates tumor eradication and shows potential for improving cancer immunotherapy (12, 13).

References
  1. Ishida, Y. et al. (1992) EMBO J. 11:3887.
  2. Sharpe, A.H. and G. J. Freeman (2002) Nat. Rev. Immunol. 2:116.
  3. Coyle, A. and J. Gutierrez-Ramos (2001) Nat. Immunol. 2:203.
  4. Nishimura, H. and T. Honjo (2001) Trends Immunol. 22:265.
  5. Watanabe, N et al. (2003) Nat. Immunol. 4:670.
  6. Zhang, X. et al. (2004) Immunity 20:337.
  7. Lázár-Molnár, E. et al. (2008) Proc. Natl. Acad. Sci. USA 105:10483.
  8. Nishimura, H et al. (1996) Int. Immunol. 8:773.
  9. Keir, M.E. et al. (2008) Annu. Rev. Immunol. 26:677.
  10. Butte, M.J. et al. (2007) Immunity 27:111.
  11. Okazaki, T. et al. (2013) Nat. Immunol. 14:1212.
  12. Iwai, Y. et al. (2002) Proc. Natl. Acad. Sci. USA 99: 12293.
  13. Nogrady, B. (2014) Nature 513:S10.
Long Name
Programmed Death-1
Entrez Gene IDs
5133 (Human); 18566 (Mouse); 301626 (Rat); 100533201 (Porcine); 486213 (Canine); 102123659 (Cynomolgus Monkey)
Alternate Names
CD279 antigen; CD279; hPD-1; PD1; PD-1; PD1hPD-l; PDCD1; programmed cell death 1; programmed cell death protein 1; Protein PD-1; SLEB2

FAQs

  1. The vial is supposed to contain lyophilized protein but it appears to be empty. Is there anything in it?

    • Pellets can be dislodged during shipping and become disbursed on the vial wall and in the cap. Centrifuge or tap the vial on the benchtop to return this material to the vial bottom. If this does not reveal a pellet, closely inspect the cone of the vial. Some pellets appear as only a tiny amount of material or as a transparent film due to the original buffer formulation. This is a normal appearance for many proteins. For example, if the product is originally lyophilized from a solvent such as acetonitrile or ethanol, and supplied carrier-free, you may not be able to detect the pellet with the naked eye. This does not mean the vial is empty. Reconstitute the vial as directed. After reconstitution, protein concentration can be tested with a spectrophotometer.

  2. What is the recommended method for reconstitution of a lyophilized protein or antibody?

    • Unless more specific directions are on the Certificate of Analysis provided with the product, we suggest the following procedure to ensure optimal recovery: 1. Allow the vial and reconstitution buffer to equilibrate to room temperature. 2. Briefly centrifuge the vial to ensure that all lyophiliate is collected at the bottom of the vial. 3. Add the amount of buffer required to achieve the concentration recommended on the product insert. 4. Allow the vial to reconstitute for 15-30 minutes at room temperature with gentle agitation, like on a rocker platform or rotating by hand.  Avoid vigorous shaking that can cause foaming and protein denaturation. 5. Aliquot into volumes greater than 20 μL and store as indicated on the product insert. If the vial exhibits flakes or particulates, mix the product for a couple of hours at room temperature and then at 4oC overnight. Contact Technical Service if product does not go into solution.



  3. Are R&D Systems recombinant proteins and antibodies sterile?

    • Although the vials are bottled using aseptic techniques, heat-treated vials, and sterile stock solutions, they are not considered or guaranteed to be sterile. If sterile material is needed for an experiment, the material can be filtered through a 0.2 micron filter designed for use with biological fluids.

View all Proteins and Enzyme FAQs
