Recombinant Human PD-L2/B7-DC His-tag Avi-tag Protein, CF

Biotinylated
Catalog # Availability Size / Price Qty
AVI9075-050
Recombinant Human PD-L2/B7-DC His-tag Avi-tag Protein, CF Binding Activity
2 Images
Product Details
FAQs
Supplemental Products
Reviews

Recombinant Human PD-L2/B7-DC His-tag Avi-tag Protein, CF Summary

Purity
>95%, by SDS-PAGE visualized with Silver Staining and quantitative densitometry by Coomassie® Blue Staining.
Endotoxin Level
<0.10 EU per 1 μg of the protein by the LAL method.
Activity
Measured by its binding ability in a functional ELISA. When Recombinant Human PD‑1 Fc Chimera (Catalog # 1086-PD) is immobilized at 1 μg/mL (100 μL/well), the concentration of Biotinylated Recombinant Human PD‑L2/B7‑DC His-tag Avi-tag that produces 50% of the optimal binding response is 0.2-1.6 μg/mL.
Source
Human embryonic kidney cell, HEK293-derived human PD-L2/B7-DC protein
Leu20-Pro219
Accession #
N-terminal Sequence
Analysis
Leu20
Structure / Form
Biotinylated via Avi-tag
Predicted Molecular Mass
25 kDa

Product Datasheets

Carrier Free

What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

AVI9075

Formulation Lyophilized from a 0.2 μm filtered solution in PBS with Trehalose.
Reconstitution Reconstitute at 250 μg/mL in PBS.
Shipping The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage: Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Data Images

Binding Activity Binding Activity View Larger

When Recombinant Human PD-1 Fc Chimera Recombinant Human PD‑1 Fc Chimera (Catalog # 1086-PD) is immobilized at 1 μg/mL, Biotinylated Recombinant Human PD-L2/B7-DC His-tag Avi-tag (Catalog # AVI9075) binds with an ED50 of 0.2-1.6 μg/mL.

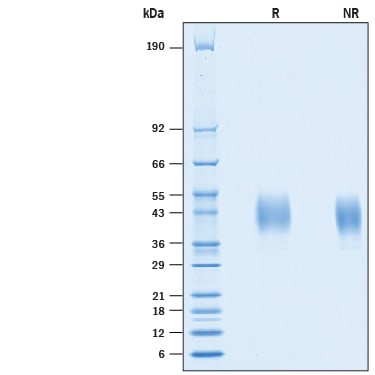

SDS-PAGE SDS-PAGE View Larger

2 μg/lane of Recombinant Human PD-L2/B7-DC His-tag Avi-tag was resolved with SDS-PAGE under reducing (R) and non-reducing (NR) conditions and visualized by Coomassie® Blue staining, showing bands 40-50 at kDa.

Reconstitution Calculator

Reconstitution Calculator

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: PD-L2/B7-DC

Programmed Death Ligand 2 (PD-L2), also known as B7-DC and butyrophilin-like protein, is a member of the B7 family of proteins that provide signals for regulating T-cell activation and tolerance (1). Mature human PD-L2 consists of a 201 amino acid (aa) extracellular domain (ECD) with one V-like and one C-like Ig domain, a 21 aa transmembrane segment, and a 32 aa cytoplasmic domain (2, 3). Within the ECD, mouse and human PD-L2 share 72% aa sequence identity. Alternative splicing generates additional isoforms that lack the second Ig-like domain and may be substituted and truncated following the first Ig-like domain (4). PD-L2 is expressed on dendritic cells, subsets of activated CD4+ and CD8+ T cells, and memory B cells that differentiate into plasma cells (3, 5, 6). At inflammatory sites such as rheumatoid arthritis, allergen exposure, and virus infection, PD-L2 is up-regulated on synoviocytes, infiltrating macrophages, dendritic cells, and airway epithelial cells (7-11). PD-L2, along with B7-H1/PD-L1, binds to T cell PD-1 where it promotes IFN-gamma production and CD40 Ligand up-regulation while inhibiting IL-4 production (2, 3, 12, 13). In addition, PD-L2 binds to RGM-B on macrophages and alveolar epithelial cells, supporting respiratory immune tolerance (14). In asthma, PD-L2 suppresses IL-5 and IL-13 production, promotes IL-12 production by dendritic cells, and supports allergen-induced airway hyper-responsiveness and mucus production (9, 11).

References
  1. Ceeraz, S. et al. (2013) Trends Immunol. 34:556.
  2. Latchman, Y. et al. (2001) Nat. Immunol. 2:261.
  3. Tseng, S.-Y. et al. (2001) J. Exp. Med. 193:839.
  4. He, X.-H. et al. (2004) Acta Biochim. Biophys. Sinica 36:284.
  5. Messal, N. et al. (2011) Mol. Immunol. 48:2214.
  6. Zuccarino-Catania, G.V. et al. (2014) Nat. Immunol. 15:631.
  7. Guo, G. et al. (2012) Clin. Rheumatol. 31:271.
  8. Loke, P. and J.P. Allison (2003) Proc. Natl. Acad. Sci. USA 100:5336.
  9. Matsumoto, K. et al. (2004) J. Immunol. 172:2530.
  10. Stanciu, L.A. et al. (2006) J. Infec. Dis. 193:404.
  11. Lewkowich, I.P. et al. (2013) Mucosal Immun. 6:728.
  12. Ghiotto, M. et al. (2010) Int. Immunol. 22:651.
  13. Shin, T. et al. (2003) J. Exp. Med. 198:31.
  14. Xiao, Y. et al. (2014) J. Exp. Med. 211:943.
Long Name
Programmed Death-1 Ligand-2
Entrez Gene IDs
80380 (Human); 58205 (Mouse); 309304 (Rat); 102146227 (Cynomolgus Monkey)
Alternate Names
B7-DC; bA574F11.2; Btdc; Butyrophilin B7-DC; Butyrophilin-like Protein; CD273 antigen; CD273; CD273PD-1 ligand 2; MGC142240; PD-1-ligand 2; PDCD1L2MGC142238; PDCD1LG2; PDL2; PD-L2; PDL2B7DC; PD-L2PDCD1 ligand 2; programmed cell death 1 ligand 2; Programmed death ligand 2
