Recombinant Human VEGF 165 Protein

R&D Systems | Catalog # 293-VE

R&D Systems
Loading...

Key Product Details

  • R&D Systems Sf 21 (baculovirus)-derived Recombinant Human VEGF 165 Protein (293-VE)
  • Quality control testing to verify active proteins with lot specific assays by in-house scientists
  • All R&D Systems proteins are covered with a 100% guarantee

Source

Sf 21 (baculovirus)

Accession Number

Structure / Form

Disulfide-linked homodimer

Applications

Bioactivity
Loading...

Product Specifications

Source

Spodoptera frugiperda, Sf 21 (baculovirus)-derived human VEGF protein
Ala27-Arg191

Purity

>97%, by SDS-PAGE under reducing conditions and visualized by silver stain.

Endotoxin Level

<0.01 EU per 1 μg of the protein by the LAL method.

N-terminal Sequence Analysis

Ala27

Predicted Molecular Mass

19.2 kDa (monomer)

SDS-PAGE

20-22 kDa, under reducing conditions.
39-42 kDa, under non-reducing conditions.

Activity

Measured in a cell proliferation assay using HUVEC human umbilical vein endothelial cells. Conn, G. et al. (1990) Proc. Natl. Acad. Sci. USA 87:1323.
The ED50 for this effect is 1.50-12.0 ng/mL.

Reviewed Applications

Read 31 reviews rated 4.8 using 293-VE in the following applications:

Scientific Data Images for Recombinant Human VEGF 165 Protein

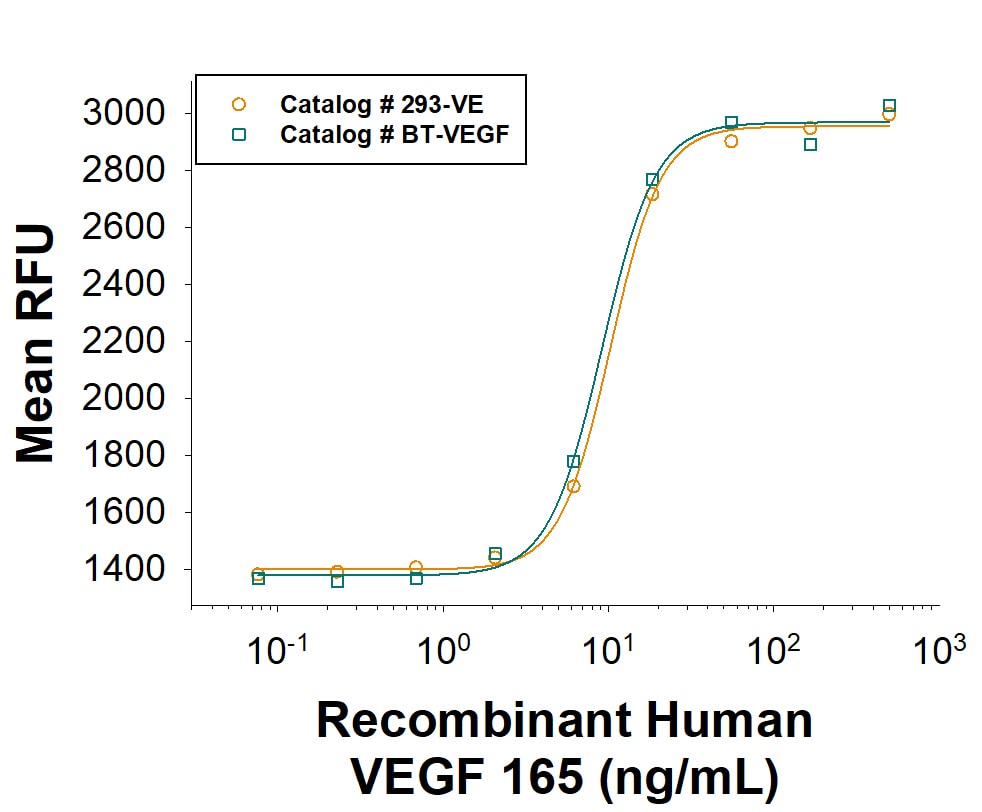

Recombinant Human VEGF 165 Protein Bioactivity

Recombinant Human VEGF 165 Protein Bioactivity

Recombinant Human VEGF165(Catalog # 293-VE) stimulates proliferation in HUVEC human umbilical vein endothelial cells. The ED50 is 1.50‑12.0 ng/mL.

Recombinant Human VEGF 165 Protein Bioactivity Comparison.

As an alternative, please consider our next generation Recombinant Human VEGF 165 (Catalog # BT-VEGF). It has equivalent bioactivity to Recombinant Human VEGF 165 (Catalog # 293-VE). It combines R&D Systems quality with scalability that allows for a solid supply chain. Both Recombinant Human VEGF 165 proteins are measured in a cell proliferation assay using HUVEChuman umbilical vein endothelial cells.

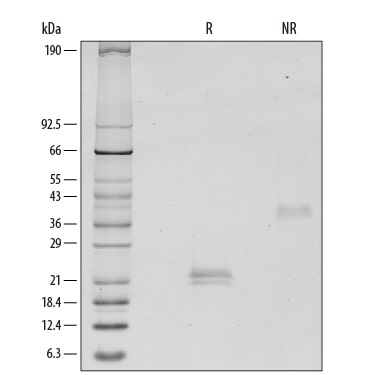

Recombinant Human VEGF 165 Protein SDS-PAGE

Recombinant Human VEGF 165 Protein SDS-PAGE

1 μg/lane of Recombinant Human VEGF165was resolved by SDS-PAGE with silver staining, under reducing (R) and non-reducing (NR) conditions, showing major bands at 20-22 kDa and 39-42 kDa, respectively. Multiple bands in gel are due to glycosylation.

Formulation, Preparation, and Storage

Carrier Free
What does CF mean?

CF stands for Carrier Free (CF). We typically add Bovine Serum Albumin (BSA) as a carrier protein to our recombinant proteins. Adding a carrier protein enhances protein stability, increases shelf-life, and allows the recombinant protein to be stored at a more dilute concentration. The carrier free version does not contain BSA.

What formulation is right for me?

In general, we advise purchasing the recombinant protein with BSA for use in cell or tissue culture, or as an ELISA standard. In contrast, the carrier free protein is recommended for applications, in which the presence of BSA could interfere.

Carrier: 293-VE
Formulation Lyophilized from a 0.2 μm filtered solution in Acetonitrile and TFA with BSA as a carrier protein.
Reconstitution Reconstitute at 100‑500 μg/mL in sterile 4 mM HCl containing 0.1% human or bovine serum albumin.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.
Carrier Free: 293-VE/CF
Formulation Lyophilized from a 0.2 μm filtered solution in Acetonitrile and TFA with trehalose.
Reconstitution Reconstitute at 100-500 μg/mL in sterile 4 mM HCl.
Shipping The product is shipped at ambient temperature. Upon receipt, store it immediately at the temperature recommended below.
Stability & Storage Use a manual defrost freezer and avoid repeated freeze-thaw cycles.
  • 12 months from date of receipt, -20 to -70 °C as supplied.
  • 1 month, 2 to 8 °C under sterile conditions after reconstitution.
  • 3 months, -20 to -70 °C under sterile conditions after reconstitution.

Calculators

The reconstitution calculator allows you to quickly calculate the volume of a reagent to reconstitute your vial. Simply enter the mass of reagent and the target concentration and the calculator will determine the rest.

=
÷

Background: VEGF

Vascular endothelial growth factor (VEGF or VEGF-A), also known as vascular permeability factor (VPF), is a potent mediator of both angiogenesis and vasculogenesis in the fetus and adult (1-3). It is a member of the PDGF family that is characterized by the presence of eight conserved cysteine residues and a cystine knot structure (4). Humans express alternately spliced isoforms of 121, 145, 165, 183, 189, and 206 amino acids (aa) in length (4). VEGF165 appears to be the most abundant and potent isoform, followed by VEGF121 and VEGF189 (3, 4). Isoforms other than VEGF121 contain basic heparin-binding regions and are not freely diffusible (4). Human VEGF165 shares 88% aa sequence identity with corresponding regions of mouse and rat, 96% with porcine, 95% with canine, and 93% with feline, equine and bovine VEGF, respectively. VEGF binds the type I transmembrane receptor tyrosine kinases VEGF R1 (also called Flt-1) and VEGF R2 (Flk-1/KDR) on endothelial cells (4). Although VEGF affinity is highest for binding to VEGF R1, VEGF R2 appears to be the primary mediator of VEGF angiogenic activity (3, 4). VEGF165 binds the semaphorin receptor, Neuropilin-1 and promotes complex formation with VEGF R2 (5). VEGF is required during embryogenesis to regulate the proliferation, migration, and survival of endothelial cells (3, 4). In adults, VEGF functions mainly in wound healing and the female reproductive cycle (3). Pathologically, it is involved in tumor angiogenesis and vascular leakage (6, 7). Circulating VEGF levels correlate with disease activity in autoimmune diseases such as rheumatoid arthritis, multiple sclerosis and systemic lupus erythematosus (8). VEGF is induced by hypoxia and cytokines such as IL-1, IL-6, IL-8, oncostatin M and TNF-alpha (3, 4, 9).

Due to its role in angiogenesis of blood vessels, tumor and stroma cells use VEGF to stimulate formation of blood vessels and the proliferation and survival of endothelial cells. Specific immunotherapies targeting the VEGF signaling pathway include the recombinant antibody against VEGF (Bevacizumab), antibodies targeting the main VEGF receptor (VEGFR2), and small molecule inhibitors against VEGF receptor tyrosine kinases (10). Immune checkpoint inhibitors are an important tool in cancer therapies as tumor cells can hijack immune checkpoint signals to evade detection by immune cells. In addition to stimulating the formation of tumor blood vessels, VEGF has immunosuppressive effects by acting on dendritic cells to block their antigen-presenting and T cell stimulatory functions. Targeting VEGF in combination with other immune checkpoint ligands or receptors may prove more effective in immunotherapy approaches to certain cancer types (11). Because of its role in the formation of blood vessels, VEGF is also an important factor in skeletal development where blood supply and vascularization are crucial. This has made VEGF an important molecule in regenerative studies for bone repair as sustained release of VEGF has been shown to improve the efficiency of bone regeneration (12).

In differentiation protocols for stems cells, VEGF is a commonly added growth factor for the transformation of induced pluripotent stem cells into hematopoietic progenitor cells used to make Natural Killer cells (13, 14). VEGF has also been used to transform intermediate mesoderm into kidney glomerular podocytes or stem cell-derived liver spheres (15, 16). VEGF may also be used in assistance of stem cell transplantations by supporting angiogenesis at sites of stem cell transplants or as a honing tool for adipose-derived mesenchymal stem cells or bone marrow stem cells to migrate to (17, 18).

References

  1. Leung, D.W. et al. (1989) Science 246:1306.
  2. Keck, P.J. et al. (1989) Science 246:1309.
  3. Byrne, A.M. et al. (2005) J. Cell. Mol. Med. 9:777.
  4. Robinson, C.J. and S.E. Stringer (2001) J. Cell. Sci. 114:853.
  5. Pan, Q. et al. (2007) J. Biol. Chem. 282:24049.
  6. Weis, S.M. and D.A. Cheresh (2005) Nature 437:497.
  7. Thurston, G. (2002) J. Anat. 200:575.
  8. Carvalho, J.F. et al. (2007) J. Clin. Immunol. 27:246.
  9. Angelo, L.S. and R. Kurzrock (2007) Clin. Cancer Res. 13:2825.
  10. Apte, R.S. et al. (2019) Cell 176(6):1248.
  11. Sangro, B. et al. (2021) Nature 18:525-543.
  12. Hu, K. & Olsen, B.R. (2016) Bone 91:30-38.
  13. Zhou, Y. et al. (2022) Cancers 14:2266.
  14. Li, Y. et al. (2018) Cell Stem Cell 23(2):181-192.
  15. Musah, S. et al. (2018) Nat. Protoc. 13(7):1662-1685.
  16. Meseguer-Ripolles, J. et al. (2021) STAR Protoc. 2(2):100502.
  17. Hutchings, G. et al. (2020) Int. J. Mol. Sci. 21(11):3790.
  18. Zhang, W. et al. (2014) Euro Cell and Mater. 27:1-12.

Long Name

Vascular Endothelial Growth Factor

Alternate Names

MVCD1, VAS, Vasculotropin, VEGF-A, VEGFA, VPF

Entrez Gene IDs

7422 (Human); 22339 (Mouse); 83785 (Rat); 281572 (Bovine); 403802 (Canine); 493845 (Feline); 30682 (Zebrafish)

Gene Symbol

VEGFA

UniProt

Additional VEGF Products

Product Documents for Recombinant Human VEGF 165 Protein

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Note: Certificate of Analysis not available for kit components.

Product Specific Notices for Recombinant Human VEGF 165 Protein

For research use only

Citations for Recombinant Human VEGF 165 Protein

Customer Reviews for Recombinant Human VEGF 165 Protein (31)

4.8 out of 5
31 Customer Ratings
5 Stars
84%
4 Stars
16%
3 Stars
0%
2 Stars
0%
1 Stars
0%

Have you used Recombinant Human VEGF 165 Protein?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images


Showing  1 - 5 of 31 reviews Showing All
Filter By:
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Cell Proliferation
    Verified Customer | Posted 05/16/2025

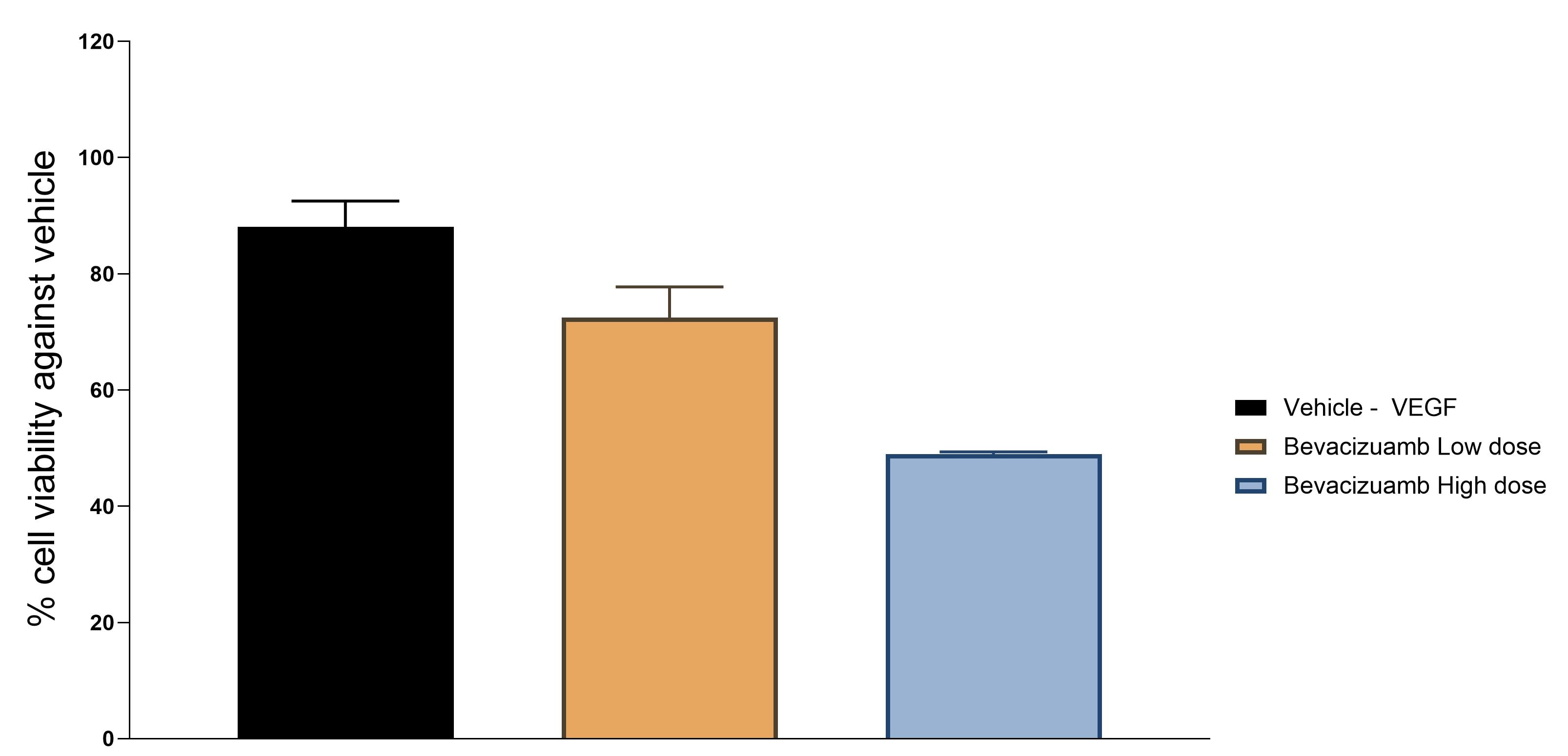

    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: In vitro bioactivity in cell culture
    Verified Customer | Posted 08/16/2024
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 09/27/2023
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Cell migration/motility
    Verified Customer | Posted 03/18/2021

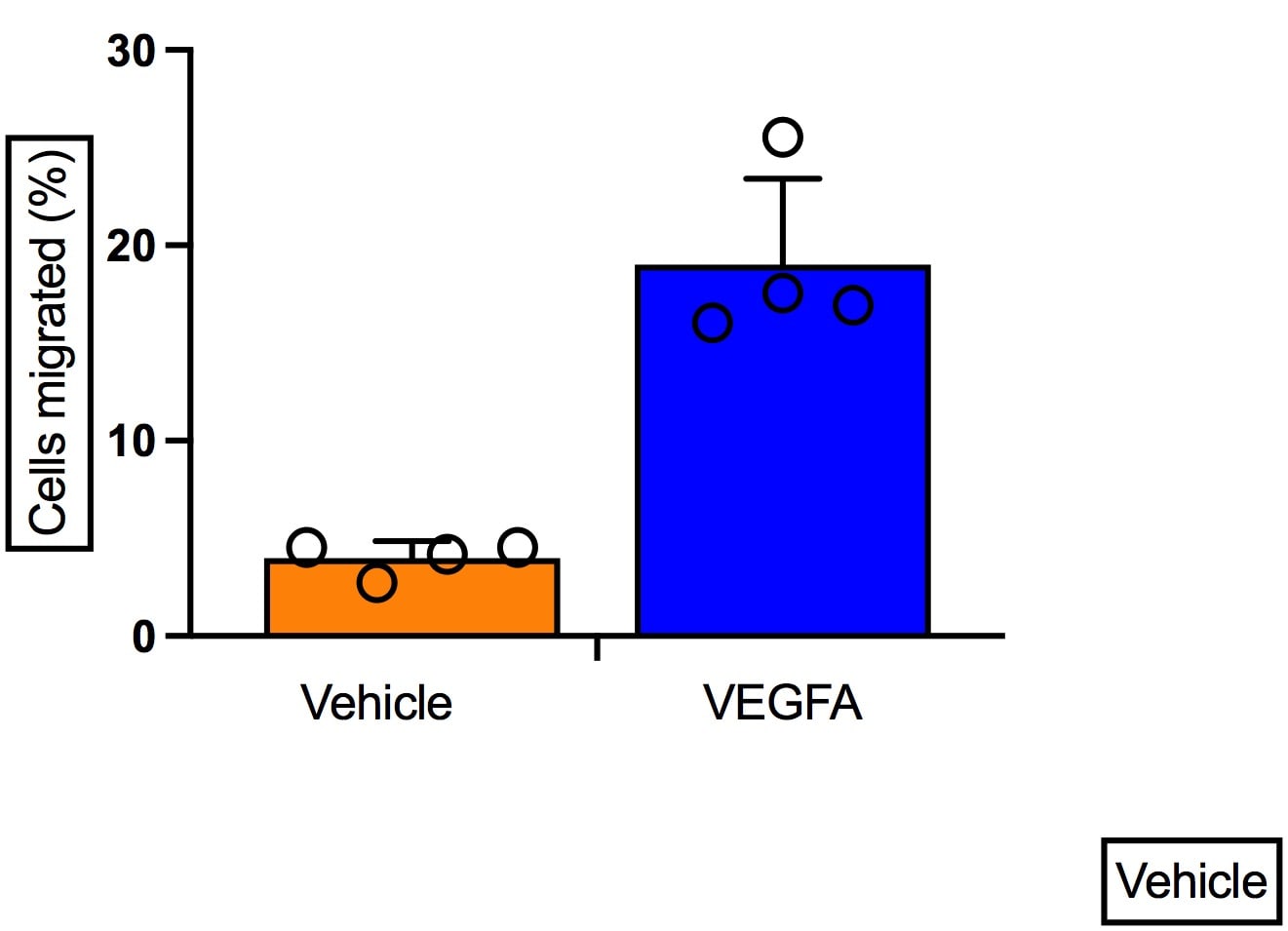

    The experiment was aimed to test the effect of human VEGFA in EC migration by scratch wound migration assay.
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Immunoassay Standard
    Verified Customer | Posted 02/05/2021
    Nice result
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 10/13/2020
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 10/13/2020
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous

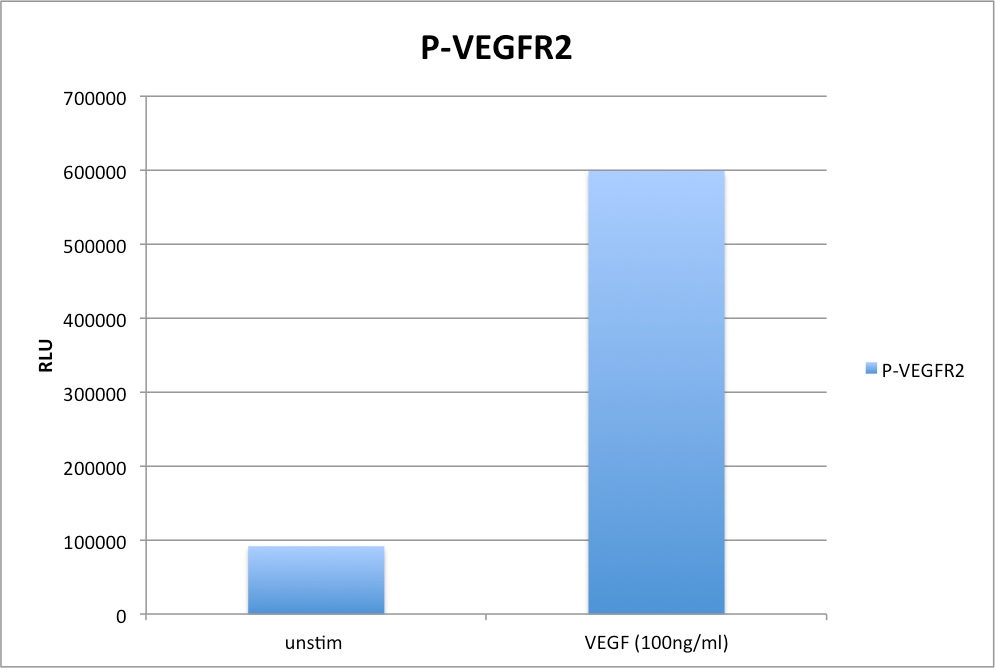

    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 08/02/2020
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Cell migration/motility
    Verified Customer | Posted 12/10/2018
  • Recombinant Human VEGF 165 Protein
    Name: Zoia Levashova
    Application: Immunoassay Standard
    Verified Customer | Posted 11/26/2018

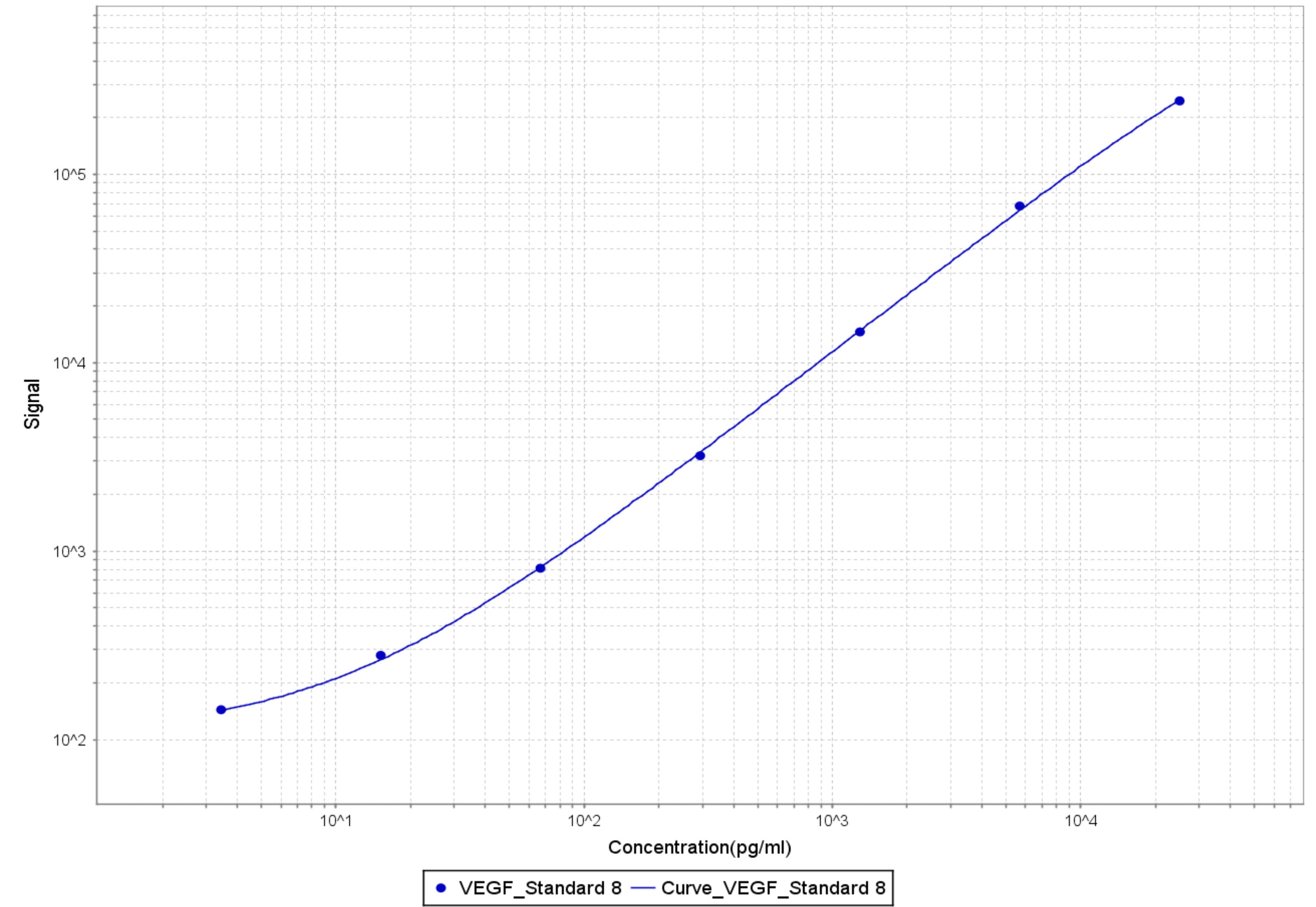

    The recombinant human VEGF protein was used as the calibration reagent in MSD assay with biotinylated MAB293 (capture) and Sulfo-Tag labeled AF-293-NA (detection) antibodies.
    Recombinant Human VEGF 165 Protein 293-VE
  • Name: Theron Lord
    Application: Cell Proliferation
    Verified Customer | Posted 10/15/2018
  • Name: Theron Lord
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 08/22/2018
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: SDS-PAGE Control
    Verified Customer | Posted 03/22/2018
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Travis Durkin
    Application: SDS-PAGE Control
    Verified Customer | Posted 02/08/2018
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Theron Lord

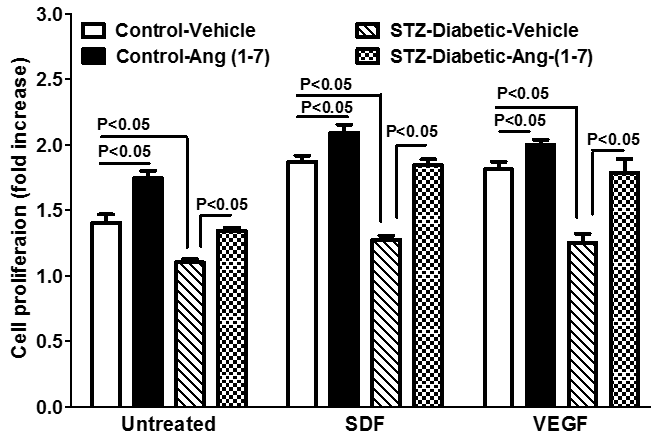

    Application: Cell Proliferation
    Verified Customer | Posted 12/01/2017
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Pingshen Hu
    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 11/18/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: SPR(SURFACE PLASMA RESONANCE)
    Verified Customer | Posted 11/10/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: preeclampsia study, Genomics
    Verified Customer | Posted 10/20/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: In vitro bioactivity in cell culture
    Verified Customer | Posted 08/23/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: In vivo study
    Verified Customer | Posted 08/15/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Binding assay/Protein-protein interaction
    Verified Customer | Posted 08/15/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Cell migration/motility
    Verified Customer | Posted 06/13/2017
    I have used at 40 ng/ml concentration in a serum-free media both for cell migration and cell signaling (western blots).
    Recombinant Human VEGF 165 Protein 293-VE
  • Name: Sitara Sankar
    Verified Customer | Posted 05/15/2017
  • Name: Abby Sukarto
    Verified Customer | Posted 05/03/2017
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 12/15/2016
    Human Recombinant VEGF165 protein is a cornerstone reagent for our protocol which looks to differentiate induced pluripotent stem cells into endothelial cells (ECs). Activin A and BMP-4 purchased from R&D was also utilized in the initial differentiation stages in combination with VEGF165. We routinely perform this differentiation protocol and VEGF165 has been reliable in expanding iPSC-derived ECs to sufficient quantities required for us to recellularize rat lung scaffolds which have been decellularized.
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 12/15/2016
    rhVEGF is used to induce differentiation of iPSC to cardiomyotcyes.
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Stem/Immune cell maintenance or differentiation
    Verified Customer | Posted 12/15/2016
    We use VEGF in a variety of iPSC differentiations. The differeniations include; endothelial, hematopoietic, and hepatoctye to name a few. There has been no lot to lot variability, all lots have preformed the same across multiple experiments.
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Media additive for protein or antibody production
    Verified Customer | Posted 08/19/2016
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Shrinidh Joshi
    Application: Cell Proliferation
    Verified Customer | Posted 08/12/2016
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: induce neurite growth from sensory neurons
    Verified Customer | Posted 06/08/2016
    VEGF 165 was used to induce neurite growth from sensory neurons. In the picture, primary trigeminal ganglia neuron treated with 50 ng/ml VEGF 165 after 3 days in culture showed extensive neurite growth.
    Recombinant Human VEGF 165 Protein 293-VE
  • Recombinant Human VEGF 165 Protein
    Name: Anonymous
    Application: Cell Proliferation
    Verified Customer | Posted 01/13/2016

There are no reviews that match your criteria.

Showing  1 - 5 of 31 reviews Showing All

FAQs for Recombinant Human VEGF 165 Protein

Showing  1 - 1 of 1 FAQ Showing All
  • Q: Is this protein glycosylated?

    A: Recombinant human VEGF165, Catalog # 293-VE or 293-VE/CF, is produced in Sf-21 cells and is glycosylated.  This protein shows up as more than one band on SDS-PAGE.  Please refer to the SDS-PAGE image located on the product-specific datasheet.

Showing  1 - 1 of 1 FAQ Showing All
