Key Product Details

Species Reactivity

Validated:

Human, Mouse

Cited:

Human

Predicted:

Bovine (92%), Porcine (92%), Rat (92%). Backed by our 100% Guarantee.

Applications

Validated:

Immunohistochemistry, Immunohistochemistry-Paraffin, Western Blot, Immunocytochemistry/ Immunofluorescence

Cited:

Western Blot

Label

Unconjugated

Antibody Source

Polyclonal Rabbit IgG

Format

BSA Free
View all SDHB Primary Antibodies »

Product Specifications

Immunogen

A genomic peptide made to an N-terminal region of the human SDHB protein (within residues 1-150). [Swiss-Prot P21912]

Reactivity Notes

Immunogen sequence has 92% identity to rat, cow and pig, 85% identity to Xenopus and 84% identity to Zebrafish.

Localization

Mitochondrion inner membrane; Peripheral membrane protein; Matrix side.

Marker

Mitochondria Marker

Clonality

Polyclonal

Host

Rabbit

Isotype

IgG

Description

Novus Biologicals Rabbit SDHB Antibody - BSA Free (NBP1-54154) is a polyclonal antibody validated for use in IHC, WB and ICC/IF. Anti-SDHB Antibody: Cited in 4 publications. All Novus Biologicals antibodies are covered by our 100% guarantee.

Scientific Data Images for SDHB Antibody - BSA Free

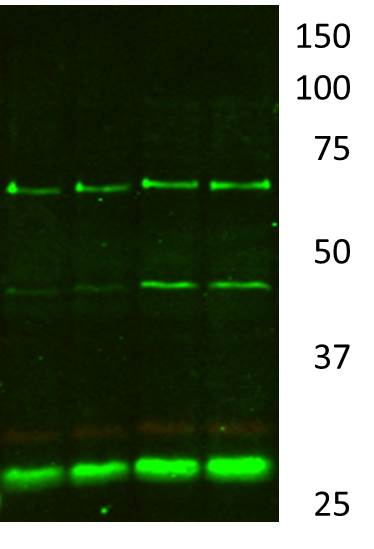

Western Blot: SDHB AntibodyBSA Free [NBP1-54154]

Western Blot: SDHB AntibodyBSA Free [NBP1-54154]

Western Blot: SDHB Antibody [NBP1-54154] - analysis of SDHB in porcine whole skeletal muscle lysate using anti-SDHB antibody. The primary antibody was used at a dilution of 1:2000 and incubated for 18 hours at 4C. Image from verified customer review.
Immunocytochemistry/ Immunofluorescence: SDHB Antibody - BSA Free [NBP1-54154]

Immunocytochemistry/ Immunofluorescence: SDHB Antibody - BSA Free [NBP1-54154]

Immunocytochemistry/Immunofluorescence: SDHB Antibody [NBP1-54154] - ICC staining of SDHB in HeLa cells with FITC (green). Nuclei were counterstained with Dapi (blue).
Immunohistochemistry: SDHB Antibody - BSA Free [NBP1-54154]

Immunohistochemistry: SDHB Antibody - BSA Free [NBP1-54154]

Immunohistochemistry: SDHB Antibody [NBP1-54154] - IHC staining of SDHB in mouse bladder.
Western Blot: SDHB AntibodyBSA Free [NBP1-54154]

Western Blot: SDHB AntibodyBSA Free [NBP1-54154]

Western Blot: SDHB Antibody [NBP1-54154] - Detection of SDHB in mouse kidney lysate.

Applications for SDHB Antibody - BSA Free

Application
Recommended Usage

Immunocytochemistry/ Immunofluorescence

1:50-1:100

Immunohistochemistry

1:50-1:100

Immunohistochemistry-Paraffin

1:50-1:100

Western Blot

1:7000
Application Notes
This SDHB antibody is useful for ICC/IF, IHC and Western blot where a band is seen ~31 kDa. Prior to immunostaining paraffin tissues, antigen retrieval with sodium citrate buffer (pH 6.0) is recommended.

Reviewed Applications

Read 1 review rated 3 using NBP1-54154 in the following applications:

Formulation, Preparation, and Storage

Purification

Immunogen affinity purified

Formulation

PBS and 30% Glycerol

Format

BSA Free

Preservative

0.05% Sodium Azide

Concentration

1.14 mg/ml

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store at 4C short term. Aliquot and store at -20C long term. Avoid freeze-thaw cycles.

Background: SDHB

SDHB [Succinate dehydrogenase (ubiquinone) iron-sulfur subunit, mitochondrial] is an iron-sulfur protein subunit of succinate dehydrogenase (SDH) which is involved in mitochondrial electron transport chain's complex II and is accountable for electrons transfer from succinate to ubiquinone/coenzyme Q. The complex II is a key respiratory enzyme which links Krebs cycle and electron transport chain, and is composed of four subunits: the flavoprotein SDHA, iron-sulfur protein SDHB, and a cytochrome b560 composed of SDHC and SDHD as well as additional groups such as iron-sulphur centres and ubiquinone. SDH complex functions as a tumour suppressor, and loss of any of the subunit proteins leads to destabilization of the complex that follows carcinogenesis. Defects in SDHB have also been linked to susceptibility to pheochromocytoma (PCC), paragangliomas type 4 (PGL4), paraganglioma and gastric stromal sarcoma (PGGSS), and Cowden-like syndrome (CWDLS).

Alternate Names

EC 1.3.5.1, FLJ92337, Ip, Iron-sulfur subunit of complex II, PGL4, SDH, SDH1, SDH2, SDHIP, succinate dehydrogenase [ubiquinone] iron-sulfur subunit, mitochondrial, succinate dehydrogenase complex, subunit B, iron sulfur (Ip)

Entrez Gene IDs

6390 (Human); 67680 (Mouse)

Gene Symbol

SDHB

UniProt

P21912 (Human), Q9CQA3 (Mouse)

Additional SDHB Products

Product Documents for SDHB Antibody - BSA Free

Certificate of Analysis

To download a Certificate of Analysis, please enter a lot or batch number in the search box below.

Download SDS

Product Specific Notices for SDHB Antibody - BSA Free

Manufactured by Genomic Antibody Technology™. GAT FAQs

This product is for research use only and is not approved for use in humans or in clinical diagnosis. Primary Antibodies are guaranteed for 1 year from date of receipt.

Citations for SDHB Antibody - BSA Free

Customer Reviews for SDHB Antibody - BSA Free (1)

3 out of 5
1 Customer Rating
5 Stars
0%
4 Stars
0%
3 Stars
100%
2 Stars
0%
1 Stars
0%

Have you used SDHB Antibody - BSA Free?

Submit a review and receive an Amazon gift card!

$25/€18/£15/$25CAN/¥2500 Yen for a review with an image

$10/€7/£6/$10CAN/¥1110 Yen for a review without an image

Submit a review
Amazon Gift Card

Customer Images

Showing  1 - 1 of 1 review Showing All
Filter By:
Clear Filters X
  • Name: Anonymous
    Application: Western Blot
    Sample Tested: Whole Skeletal Muscle Lysate or Purified Mitochondria
    Species: Other
    Verified Customer | Posted 11/17/2014
    Whole Skeletal Muscle Lysate
    SDHB Antibody - BSA Free NBP1-54154

There are no reviews that match your criteria.

Showing  1 - 1 of 1 review Showing All

Protocols

View specific protocols for SDHB Antibody - BSA Free (NBP1-54154):

SDHB Antibody:
Immunocytochemistry Protocol

Culture cells to appropriate density in 35 mm culture dishes or 6-well plates.

1. Remove culture medium and add 10% formalin to the dish. Fix at room temperature for 30 minutes.
2. Remove the formalin and add ice cold methanol. Incubate for 5-10 minutes.
3. Remove methanol and add washing solution (i.e. PBS). Be sure to not let the specimen dry out. Wash three times for 10 minutes.
4. To block nonspecific antibody binding incubate in 10% normal goat serum from 1 hour to overnight at room temperature.
5. Add primary antibody at appropriate dilution and incubate at room temperature from 2 hours to overnight at room temperature.
6. Remove primary antibody and replace with washing solution. Wash three times for 10 minutes.
7. Add secondary antibody at appropriate dilution. Incubate for 1 hour at room temperature.
8. Remove antibody and replace with wash solution, then wash for 10 minutes. Add Hoechst 33258 to wash solution at 1:25,0000 and incubate for 10 minutes. Wash a third time for 10 minutes.
9. Cells can be viewed directly after washing. The plates can also be stored in PBS containing Azide covered in Parafilm (TM). Cells can also be cover-slipped using Fluoromount, with appropriate sealing.

*The above information is only intended as a guide. The researcher should determine what protocol best meets their needs. Please follow safe laboratory procedures.

SDHB Antibody:
Immunohistochemistry-Paraffin Embedded Sections

Antigen Unmasking:
Bring slides to a boil in 10 mM sodium citrate buffer (pH 6.0) then maintain at a sub-boiling temperature for 10 minutes. Cool slides on bench-top for 30 minutes.

Staining:
1. Wash sections in deionized water three times for 5 minutes each.
2. Wash sections in wash buffer for 5 minutes.
3. Block each section with 100-400 ul blocking solution for 1 hour at room temperature.
4. Remove blocking solution and add 100-400 ul diluted primary antibody. Incubate overnight at 4C.
5. Remove antibody solution and wash sections in wash buffer three times for 5 minutes each.
6. Add 100-400 ul biotinylated diluted secondary antibody. Incubate 30 minutes at room temperature.
7. Remove secondary antibody solution and wash sections three times with wash buffer for 5 minutes each.
8. Add 100-400 ul Streptavidin-HRP reagent to each section and incubate for 30 minutes at room temperature.
9. Wash sections three times in wash buffer for 5 minutes each.
10. Add 100-400 ul DAB substrate to each section and monitor staining closely.
11. As soon as the sections develop, immerse slides in deionized water.
12. Counterstain sections in hematoxylin.
13. Wash sections in deionized water two times for 5 minutes each.
14. Dehydrate sections.
15. Mount coverslips.

SDHB Antibody:
Western Blot Protocol

1. Perform SDS-PAGE on samples to be analyzed, loading 40 ug of total protein per lane.
2. Transfer proteins to membrane according to the instructions provided by the manufacturer of the membrane and transfer apparatus.
3. Stain according to standard Ponceau S procedure (or similar product) to assess transfer success, and mark molecular weight standards where appropriate.
4. Rinse the blot.
5. Block the membrane using standard blocking buffer for at least 1 hour.
6. Wash the membrane in wash buffer three times for 10 minutes each.
7. Dilute primary antibody in blocking buffer and incubate 1 hour at room temperature.
8. Wash the membrane in wash buffer three times for 10 minutes each.
9. Apply the diluted HRP conjugated secondary antibody in blocking buffer (as per manufacturers instructions) and incubate 1 hour at room temperature.
10. Wash the blot in wash buffer three times for 10 minutes each (this step can be repeated as required to reduce background).
11. Apply the detection reagent of choice in accordance with the manufacturers instructions.

*Note: Tween-20 can be added to the blocking or antibody dilution buffer at a final concentration of 0.05-0.2%.

Find general support by application which include: protocols, troubleshooting, illustrated assays, videos and webinars.

FAQs

No product specific FAQs exist for this product.

View all FAQs for Antibodies
