Simple Plex Human IL-4 Cartridge, 2nd Generation

Name: Simple Plex Human IL-4 Cartridge, 2nd Generation
Brand: R&D Systems
SKU: SPCKB-PS-002800
Price: 450 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-002800

Submit a review

Citations

Product Documents

Simple Plex Human IL-4 assay kit for use on Ella instrument. Contains cartridge, sample diluent SD13, and wash buffer.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Cell Culture Supernates (25 µL), Serum (25 µL), EDTA Plasma (25 µL), Heparin Plasma (25 µL)

Sensitivity

0.16 pg/mL

Assay Range

0.52-2020 pg/mL (Cell Culture Supernates, Serum, EDTA Plasma, Heparin Plasma)

Simple Plex Human IL-4 Cartridge, 2nd Generation Summary

Simple Plex assay is for the detection of human Interleukin 4 (IL-4) in cell culture supernatant (CCS), serum, and plasma (EDTA/Heparin) in Sample Diluent SD13.

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all IL-4 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human IL-4.

Cross-reactivity

< 0.5% cross-reactivity observed with available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested multiple times in one IL-4 assay.

Inter-Assay Precision (Precision between assays) Replicates of each IL-4 control were tested in multiple assays performed by at least three technicians using two lots of reagents for human IL-4.

Cell Culture Supernates, EDTA Plasma, Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	46	46
Mean (pg/mL)	15.9	621	13.5	631
Standard Deviation	1.20	60.8	1.55	77.1
CV%	7.5	9.8	11.5	12.2

Recovery for Simple Plex Human IL-4 Cartridge, 2nd Generation

Recovery for the human IL-4 assays was evaluated at three different spiked concentrations of IL-4 protein.

Sample Type	Average % Recovery	Range %
EDTA Plasma (n=4)	88	83-92
Heparin Plasma (n=4)	87	84-89
Serum (n=4)	96	94-99

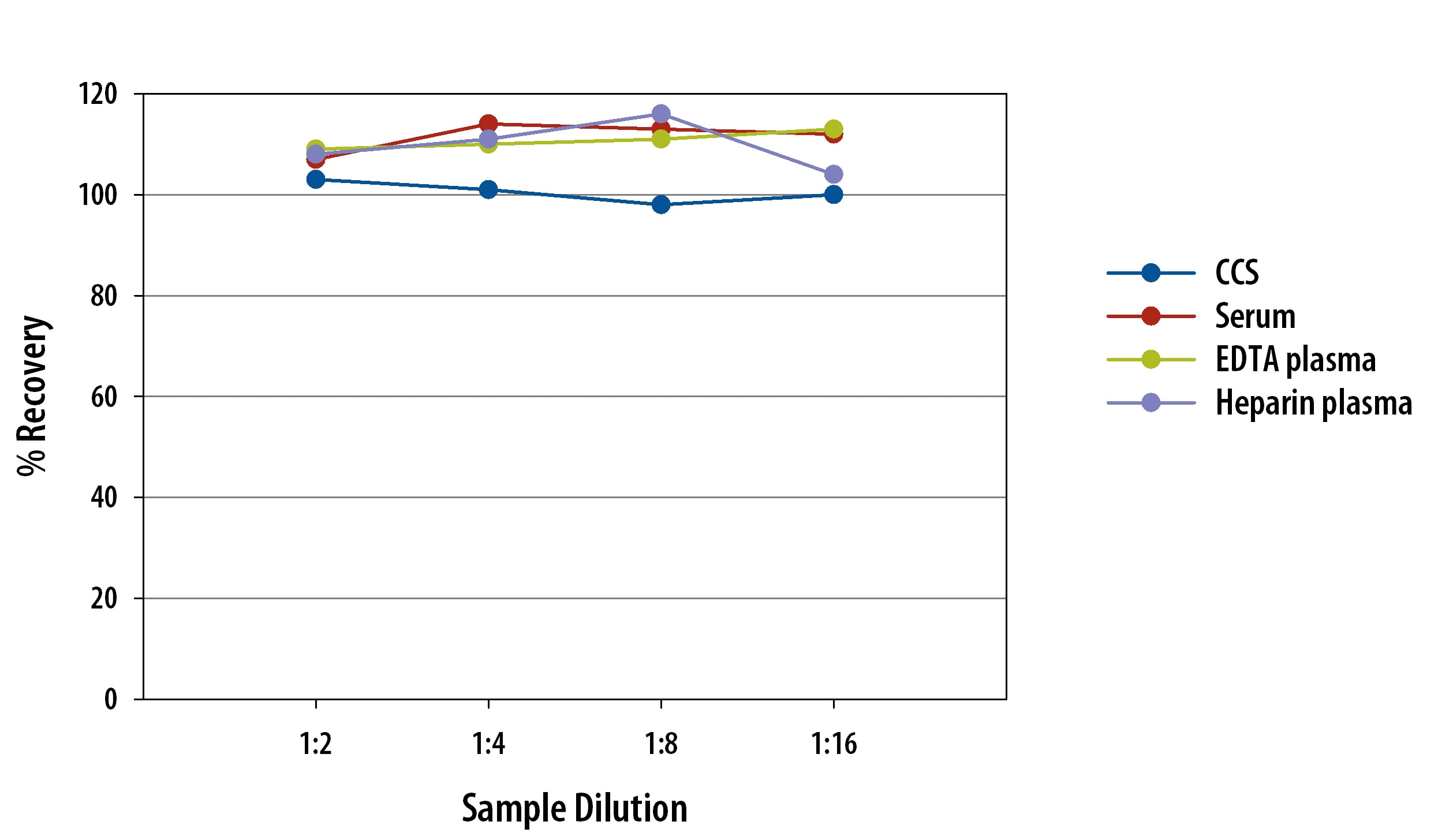

Linearity

Samples containing and/or spiked with high concentrations of human IL-4 were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay.

Scientific Data Images for Simple Plex Human IL-4 Cartridge, 2nd Generation

Simple Plex Human IL-4 Assay Standard Curve

Data shown represents typical performance results for Lower Limit of Quantitation (LLOQ) and Upper Limit of Quantitation (ULOQ) for Simple Plex Human IL-4 Assay. Assay range is 0.75-1140 pg/mL.

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: IL-4

IL-4 (Interleukin-4) is a cytokine that is primarily expressed by Th2-biased CD4⁺ T cells, mast cells, basophils, and eosinophils. It promotes cell proliferation, survival, and immunoglobulin class switch to IgG4 and IgE in human B cells, acquisition of the Th2 phenotype by naÃ¯ve CD4⁺ T cells, priming and chemotaxis of mast cells, eosinophils, and basophils, and the proliferation and activation of epithelial cells. IL-4 plays a dominant role in the development of allergic inflammation and asthma. The type I receptor for IL-4, which is expressed on hematopoietic cells, is a heterodimer of the ligand binding IL-4 R alpha and the common gamma chain (a shared subunit of the receptors for IL-2, -7, -9, -15, and -21). The type II receptor on nonhematopoietic cells consists of IL-4 R alpha and IL-13 R alpha 1. The type II receptor also transduces IL-13 mediated signals.
