Simple Plex Human TGF-beta 1 (native) Cartridge

Name: Simple Plex Human TGF-beta 1 (native) Cartridge
Brand: R&D Systems
SKU: SPCKB-PS-002754
Price: 885 USD
Availability: InStock

R&D Systems | Catalog # SPCKB-PS-002754

Submit a review

Citations

Product Documents

Simple Plex Cartridge Kit for quantitation of TGF-b1 (native). Includes wash buffer and sample diluent. For use with the Ella automated immunoassay system.

Customize This Cartridge

Simple Plex cartridges are custom built to fit your needs. Choose from over 350 assays spanning human, mouse, rat, and non-human primate. Just select your sample type, cartridge size (16, 32, or 72 samples), and up to 8 analytes per cartridge. Customize this cartridge.

Customize This Cartridge

Compatible Instruments
Product Specifications
Precision
Recovery
Linearity
Scientific Data
Preparation & Storage
Background
Product Documents
Specific Notices
Research Areas

Key Product Details

Assay Length

90 minutes

Sample Type & Volume Required Per Well*

Serum (25 µL), Platelet-poor EDTA Plasma (25 µL), Platelet-poor Heparin Plasma (25 µL)

Sensitivity

8.3 pg/mL

Assay Range

8.3-31710 pg/mL (Serum, Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma)

Simple Plex Human TGF-beta 1 (native) Cartridge Summary

Simple Plex assay for the detection of human TGF-beta 1 (native) in serum and platelet-poor plasma (EDTA/Heparin)

*The Sample Volume represented is based on the amount of sample incorporated into the reaction after taking into account the assay's minimum required dilution for a given matrix. Serial dilution may be necessary to achieve some of the final sample volumes represented.

View all TGF-beta 1 Simple Plex »

Compatible Instruments

Ella Automated Immunoassay System

Efficiently analyze biomarkers with Ella's advanced technology, providing accurate, precise results in under 90 minutes. Quantify up to 8 targets per assay through a streamlined automated workflow. Choose from >350 highly validated Simple Plex assays or Simple Plex discovery assays.

Learn More

Product Specifications

Assay Type

Automated sandwich ELISA

Format

Microfluidic cartridge containing three Glass Nano Reactors (GNR)

Species

Human

Specificity

Natural and recombinant human TGF-beta 1 (native).

Cross-reactivity

Cross-reactivity observed with 1 or more available related molecules. < 50% cross-species reactivity observed with species tested.

Interference

No significant interference observed with available related molecules.

Precision

Intra-Assay Precision (Precision within an assay) Each control was tested 16 times in one assay

Inter-Assay Precision (Precision between assays) Replicates of each control were tested in multiple assays performed by at least three technicians using two lots of reagents

Platelet-poor EDTA Plasma, Platelet-poor Heparin Plasma, Serum

	Intra-Assay Precision		Inter-Assay Precision
Sample	1	2	1	2
n	16	16	16	16
Mean (pg/mL)	76.9	3964	76.0	3820
Standard Deviation	4.14	242	7.60	428
CV%	5.4	6.1	10.0	11.2

Recovery for Simple Plex Human TGF-beta 1 (native) Cartridge

Recovery at three different spiked concentrations within the range of the assay was evaluated.

Sample Type	Average % Recovery	Range %
Platelet-poor EDTA Plasma (n=4)	105	98-112
Platelet-poor Heparin Plasma (n=4)	99	82-111
Serum (n=4)	92	89-99

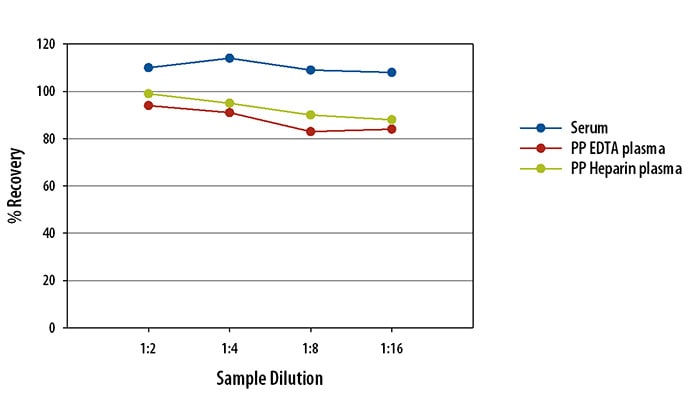

Linearity

Samples containing and/or spiked with high concentrations of human TGF-beta 1 (native) were serially diluted with Sample Diluent to produce samples within the dynamic range of the assay

Scientific Data Images for Simple Plex Human TGF-beta 1 (native) Cartridge

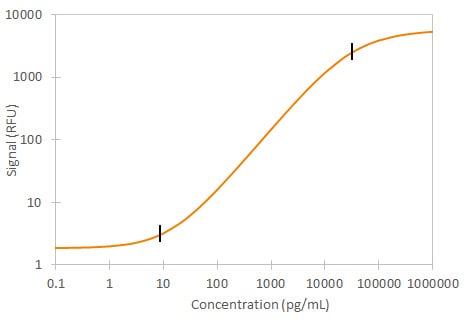

Human TGF-beta 1 (native) Simple Plex Assay Standard Curve

Preparation and Storage

Shipping

The product is shipped with polar packs. Upon receipt, store it immediately at the temperature recommended below.

Stability & Storage

Store the unopened product at 2 - 8 °C. Do not use past expiration date.

Background: TGF-beta 1

TGF-beta 1 (Transforming Growth Factor beta 1) is a pleiotrophic cytokine that regulates immune function, proliferation, and epithelial-mesenchymal transition. TGF-beta 1 associates with LAP to form a latent complex. It can be is activated from latency by plasmin, matrix metalloproteases, thrombospondin 1, and a subset of integrins. TGF-beta 1 signals through complexes of TGF-beta RII with TGF-beta RI/ALK-5 or ALK-1. TGF-beta signaling is modulated by the accessory receptors TGF-beta RIII/Betaglycan and Endoglin/CD105.
